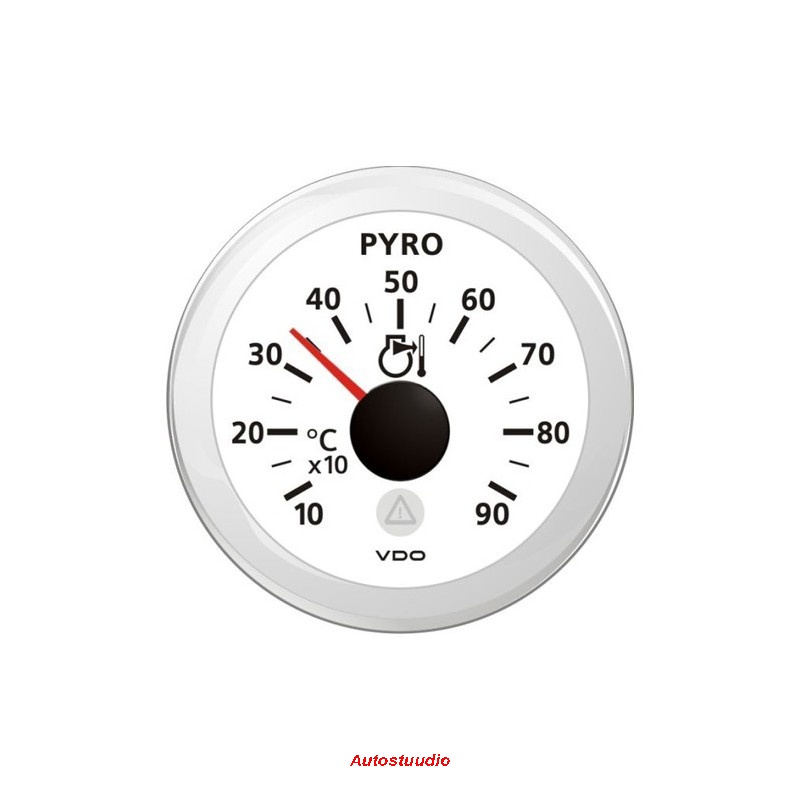

VDO - VERATRON ViewLine Püromeeter ø 52mm 100°C - 900°C, valge
Komplekti kuuluvad:
VDO - VERATRON ViewLine Pyrometer 900°C White 52mm
Data sheet
Serie | Veratron ViewLine OEM-Bulk |
Color | White Dial |
Application | Veratron Engine monitoring |
Category | Temperature Gauges |
Functionality | Exhaust Temperature |
Measurement range | +100°C To +900°C |
Input | Analog |
Signal analogue | 0 - 37 MV TC |
Operating voltage | 12 - 24 Volt DC Tyco 8-Pins |
IP front protection class | IP52 (IEC 60529) |
Lens | Plastic Double Anti-Fog |
Bezel model | Bezel Optional - See Parts |
Bezel Interchangeable | Yes - Clip-On |
Warning light | Red LED - Programmable |
Communication | Analog |
Dial Scale: | Single |
VDO - VERATRON ViewLine A2C59510027 full technical specifications:
Sizes and mounting:
Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
Installation depth: | 50 mm |
Locking height with Spinlock nut: | 0.5 mm - 20 mm |
Locking height with bracket: | 2 mm - 15 mm (Optional) |
Flushmount: | Optional kit A2C59510864 |
Functionality:
Exhaust temperature range: | +100°C to +900°C |
Sensor signal input exhaust temperature gauge: | VDO 37 mV Thermocouple type K |
Accuracy: | < 2.5 % of the full scale reading |
Connection: | Hirschmann 8 pins MQS connector |
Power supply:
Operating voltage: | 8 to 32 Volt DC |
Current consumption: | < 140 mA including warning LED |
Reverse polarity protection: | Yes - 5 Minutes |
Short circuit protection: | Yes - 1 Minute |
Dial & Pointer:
Deflection angle: | 240° |
Dial colour: | White |
Dial Illumination: | Amber LED backlight 605nm |
Pointer: | Red LED backlight |
Warning LED: | Red (632nm) |
Programming: | VDO USB software kit |
Design:
Model: | Veratron ViewLine |
Lens: | Dual - Anti-glare - Anti-Fog |
Standard bezel: | Bezel Optional (Interchangeable) |
Protection and standards:
Front protection class: | IP67 (IEC 60529) |
Rear protection class: | IP52 |
Relative humidity: | Maximum 95% |
Operating temperature: | -30°C to +80°C (Plastic bezel) |
CE standard: | Yes |
DNV GL Certification: | Yes |
Mechanical shock continuous: | 25G - 6ms - 1Hz |
Mechanical single shock | 100G - 11ms |
Free fall test: | 1 Meter - 3x |
Housing flame retarding: | UL94-VD |
Retail package:
