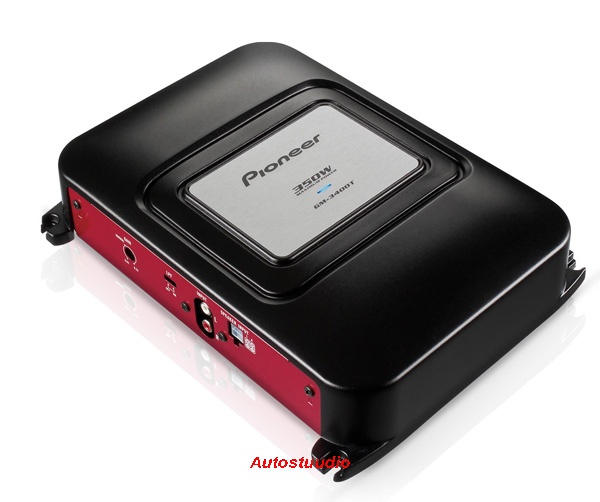

Pioneer GM-3400T võimendi

GM-3400T

Designed to fit both cosmetically and technically with our subwoofers, the GM-3400T amplifier gives you total installation freedom and no distortion.

With a one-body heat sink and gain adjustment of up to 6.5V, you can turn your in-car audio experience into the sound staging environment that you’re looking for. A high-level input is also available for a direct, easy connection to an existing OE system.

The GM-3400T is ideally paired with our TS-WX303 subwoofer, adding clean, powerful bass to your in-car sound.

• Maximum Output Power 2 x 120W or 1 x 350W (4Ω)

• CEA 2006 Power (THD + N = 1%) 60W RMS X 2

• Continuous power output (RMS) • 14.4V (20Hz-20kHz/4Ω): 2 x 60W / 1 x 175 W (bridged)
  • 14.4V (20Hz-20kHz/2Ω): 2 x 85W

• Load impedance capability 4Ω

• Frequency response 10 - 50 k Hz

• Distortion < 0.01% %

• S/N ratio > 95 dB

• LPF 80 Hz (-12 dB/Oct)

• RCA terminals Yes (input)

• Speaker Terminals Screw-type

• High Voltage Input (+) 0,8 - 26 V

  All of our bridgeable amplifiers have an Input Level Control, which is adjustable over 6.5 volts of input signal. This means that all our amplifiers pick up signals from Hi-Volt headunits of line drivers, without any clipping.

• Input level control 200 mV - 6,5 V

• Max. current consumption (A/4Ω) 15 A

• Chassis size (W x H x D) 263 x 61 x 206 mm

• Unit weight 2.0 kg
