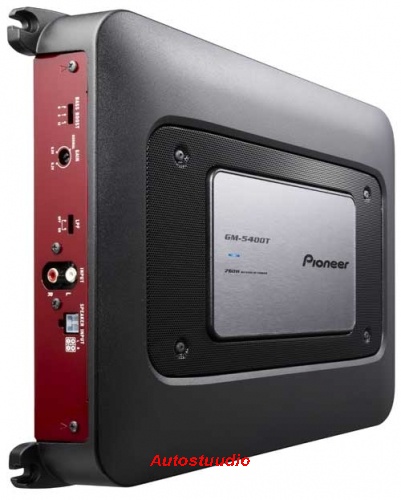

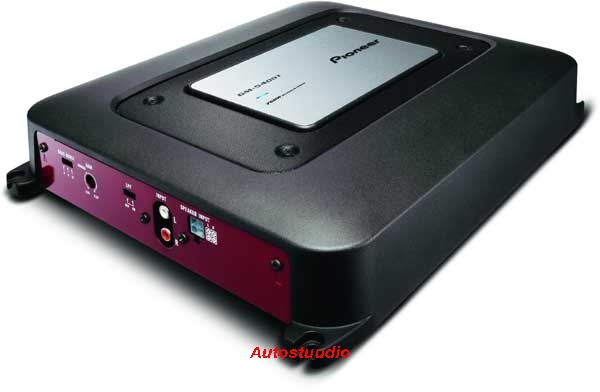

GM-5400T
Designed to fit both cosmetically and technically with our subwoofers, the GM-5400T gives you total installation freedom and no distortion.
With an H-shaped chassis for vibration control and a PWM regulated power supply, you can drive multiple speaker channels or subwoofers and turn your in-car audio experience into the sound staging environment you’re looking for.
Use the ‘Related’ tab above to browse our recommended sub pairings with this amplifier.
Maximum Output Power 2 x 250W or 1 x 760W (4Ω)
CEA 2006 Power (THD + N = 1%) 125 W RMS X 2
Continuous power output (RMS) • 14.4V (20Hz-20kHz/4Ω): 2 x 125 W/1 x 380W (bridged)
• 14.4V (20Hz-20kHz/2Ω): 2 x 190W
Load impedance capability 4Ω
Frequency response (+0dB , -1dB) 10Hz ~ 50k Hz
Distortion < 0.03 %
S/N ratio > 95 dB
Bass Boost 50 Hz; 0/6/12 dB
LPF 80 Hz (-12 dB/oct)
RCA terminals Yes (input)
Speaker Terminals Screw-type
High Voltage Input (+) 200 mV - 6.5 V
Input level control 0.8 - 26 V
Max. current consumption (A/4Ω) 30 A
Chassis size (W x H x D) 265 x 62 x 346 mm
Unit weight 3,8 kg
