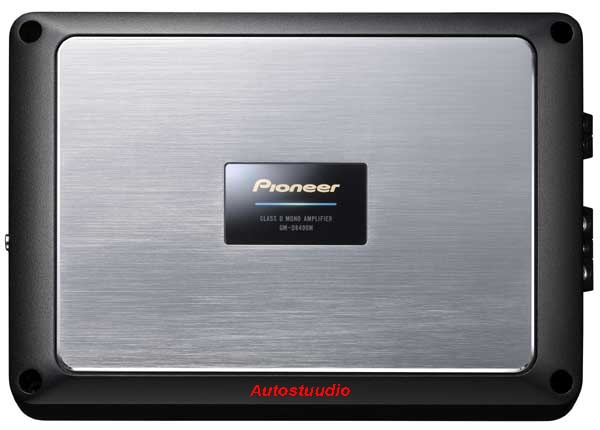

Pioneer GM-D8400M võimendi

GM-D8400M

Ignite your in-car audio with our Class-D amplifiers which pump out constant, crisp sound.

The amplifier needs only two thirds of the current of a conventional amplifier, so the power supply to both subwoofer and front and rear speakers is more stable.

This results in a very compact amp which needs little input power to produce very high output power.  What you hear is a clean, original sound output without distortion.

• Maximum Output Power 1 x 600W (4Ω) or 1 x 1200W (2Ω)

• CEA 2006 Power (THD + N = 1%) 1 x 300W (20Hz - 240Hz/4Ω)
  1 x 600W (50Hz / 2Ω)
  54 dBA (ref: 1W into 4Ω)

• Frequency response 10 - 240 Hz

• Distortion < 0.3 %

• S/N ratio > 80 dB

• Bass Boost 50Hz, 0 - 12 dB
  Remote Controlled

• LPF 40 - 240 Hz (-12 dB/oct)

• MOSFET output section (+) Yes

  A MOSFET output section results in enhanced high-frequency range performance and improved linear response to signals. Its high-density circuit layout reduces line impedance in the circuit pattern. This eliminates switching noise and raises sound quality and performance. In addition, amplifier drive stability is maintained even during long, hard-driving listening sessions thanks to excellent thermal stability and circuit protection.

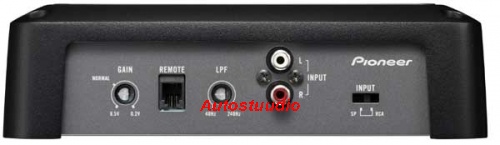

• RCA terminals Yes (input)

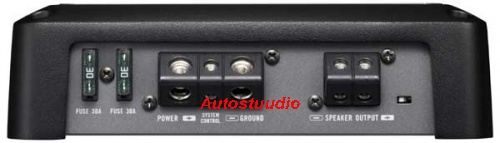

• Speaker Terminals Block-type

• Input level control RCA (200mV - 6.5V)
  SP (0.8V - 26V)
  Switchable, LR independent

• Max. current consumption (A/4Ω) 27 A

• Chassis size (W x H x D) 290 x 56 x 200 mm

• Unit weight 3.2 kg

• Maximum Output Power 1 x 400W (4Ω) or 1 x 800W (2Ω)

• CEA 2006 Power (THD + N = 1%) 1 x 200W (20Hz - 240Hz/4Ω)
  1 x 400W (50Hz / 2Ω)
  54 dBA (ref: 1W into 4Ω)

• Frequency response 10 - 240 Hz

• Distortion < 0.3 %

• S/N ratio > 80 dB

• Bass Boost 50Hz, 0/6/12 dB

• LPF 40 - 240 Hz (-12 dB/oct)

• MOSFET output section (+) Yes

  A MOSFET output section results in enhanced high-frequency range performance and improved linear response to signals. Its high-density circuit layout reduces line impedance in the circuit pattern. This eliminates switching noise and raises sound quality and performance. In addition, amplifier drive stability is maintained even during long, hard-driving listening sessions thanks to excellent thermal stability and circuit protection.

• RCA terminals Yes (input)

• Speaker Terminals Block-type

• Input level control RCA (200mV - 6.5V)
  SP (0.8V - 26V)
  Switchable, LR independent

• Max. current consumption (A/4Ω) 27 A

• Chassis size (W x H x D) 225 x 56 x 200 mm

• Unit weight 2.6 kg
