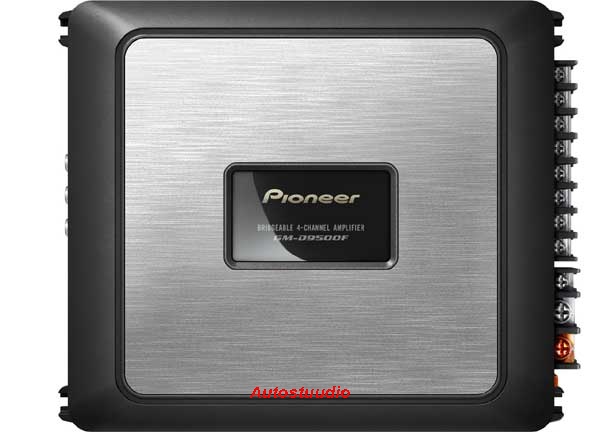

Pioneer GM-D9500F võimendi

GM-D9500F

An amplifier shouldn’t take up too much space, especially in your car. But you still want that extra power. Well, our Class-D amps might just be what you’re looking for. Compact in size as it is, you can install it virtually anywhere in your car.

And here it comes: thanks to our signature improved electrical and thermal efficiencies, you get more than twice the power output than you’d get from a regular amplifier. And meanwhile you save on your input power.

Don’t worry about distortion: our Class-D amps produce a perfectly clean and crisp sound even at high volumes. What you hear is as smooth as is its stylish design.

• Maximum Output Power 4 x 150W (4Ω, 4ch) or 2 x 400W (4Ω, 2ch Bridge)

• CEA 2006 Power (THD + N = 1%) 4 x 75W (20kHz - 20kHz/4Ω)
  2 x 200W (1kHz / 4Ω bridge)
  4 x 100W(1kHz / 2Ω)
  77 dBA (ref: 1W into 4Ω)

• Frequency response 10 - 35000  Hz

• Distortion < 0.06  %

• S/N ratio > 95  dB

• LPF 40 - 500 Hz (-12 dB/oct)

• MOSFET output section (+) Yes

  A MOSFET output section results in enhanced high-frequency range performance and improved linear response to signals. Its high-density circuit layout reduces line impedance in the circuit pattern. This eliminates switching noise and raises sound quality and performance. In addition, amplifier drive stability is maintained even during long, hard-driving listening sessions thanks to excellent thermal stability and circuit protection.

• RCA terminals Yes (input)

• Speaker Terminals Block-type

• Input level control RCA (200mV - 6.5V)
  SP (0.8V - 10V)
  Switchable, LR independent

• Max. current consumption (A/4Ω) 25 A

• Chassis size (W x H x D) 245 x 56 x 200  mm

• Unit weight 2,2  kg
