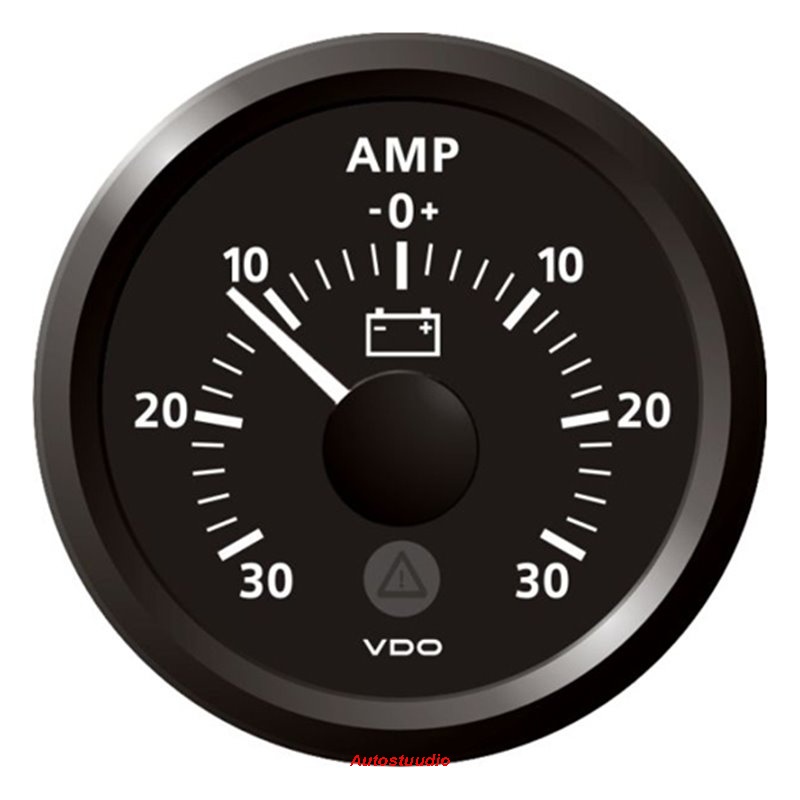

Ampermeeter 30A 52mm ViewLine, must
Ampermeeter
Toodete fotod on illustratiivsed
VDO ViewLine Marine Ampermeeter -30A - +30A ø 52mm, must (VDO shunt 30A A2C59514041 ei kuulu komplekti)*
*Toode pole enam saadaval.
VDO Marine ViewLine Ammeter 30A Black 52mm - SLTB
Data sheet
| Serie | VDO Marine ViewLine Series |
| Color | Black |
| Installation diameter | 52 mm - 2 1/16 Inch |
| Application | VDO Engine monitoring |
| Category | Ammeter gauges |
| Functionality | Charge- and Discharge current |
| Measurement range | -30A to +30A DC |
| Input | Analog |
| Signal analogue | 0 - 60 mV Shunt |
| Operating voltage | 8 - 32 Volt DC |
| IP front protection class | IP67 (IEC 60529) |
| Lens | Single-glazed - Nonreflective |
| Bezel model | Black triangle |
| Bezel Interchangeable | Yes |
| Warning light | Red LED ISO Symbol 0434A |
| Communication | Analog |
VDO ViewLine Black A2C59512306 technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| Ampere measurement range: | -30A to +30A DC |

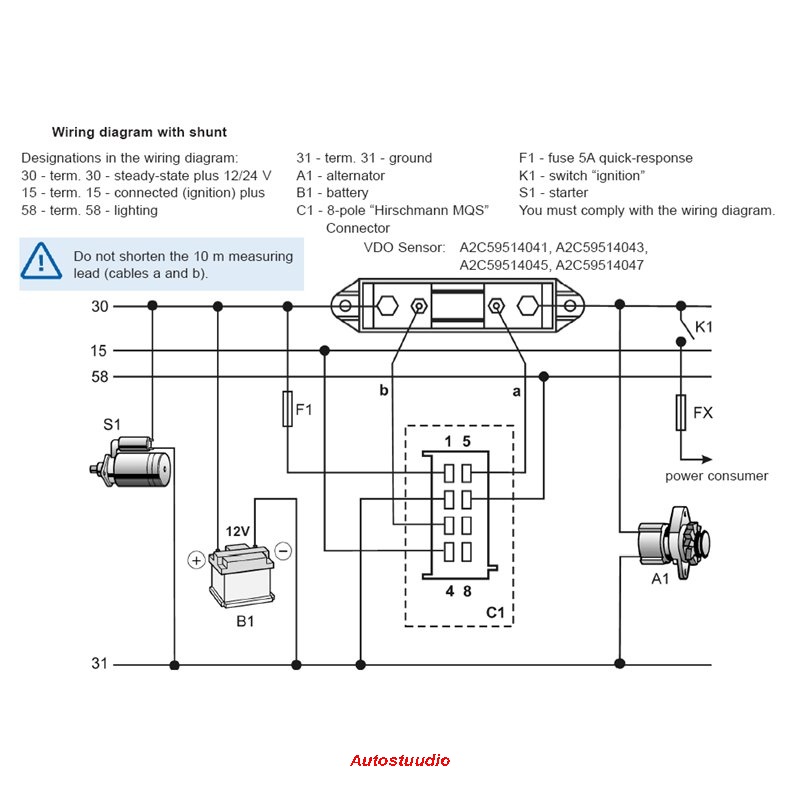

| Shunt: | Not included |
| Signal input ammeter: | VDO Shunt 0 to 60 mV DC |
| Accuracy: | < 2.5 % of the full scale reading |

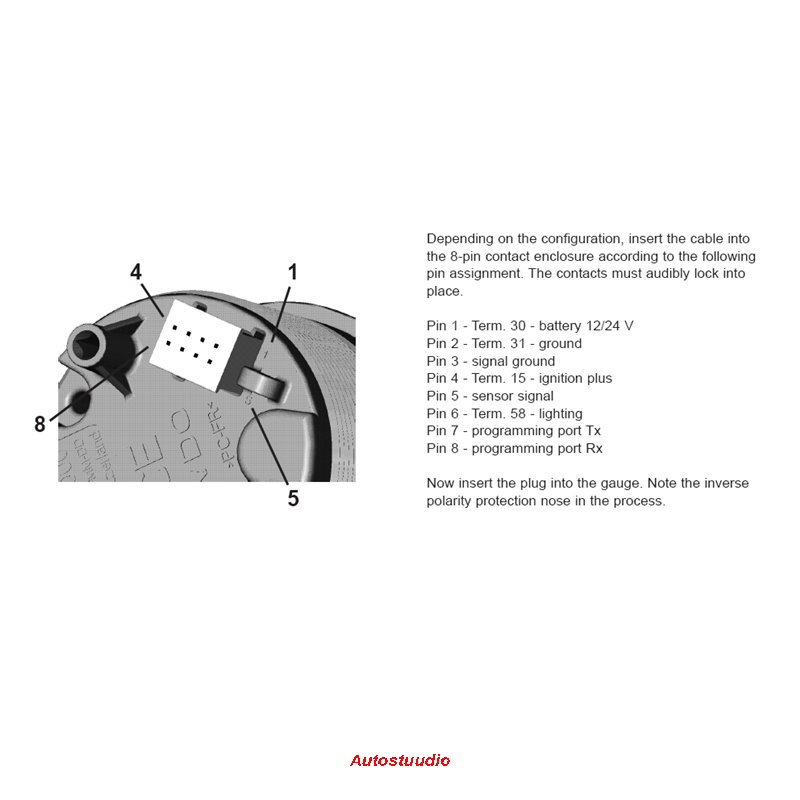

| Connection: | Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: | 8 to 32 Volt DC |
| Current consumption: | < 140 mA including warning LED |
| Reverse polarity protection: | Yes - 5 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: | 240° |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | White LED backlight |
| Warning LED: | Red (632nm) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
