Vints ROCK 12V 1589kg
Vints ROCK 12V 1589kg

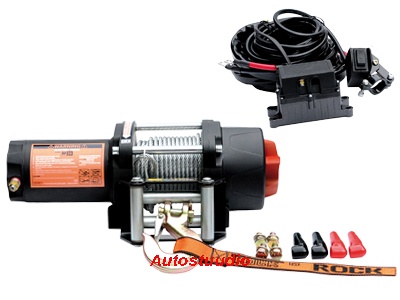

Elektrivints ROCK RP35 ATV/UTV 12V 1589kg

Toote kirjeldus:

  • Terastross ∅ 5,56 mm x 12 m (3/16" x 39" - 1900 kg)
  • Ülekandearv: 249:1
  • Võimsus 3,5 hp / 2,6 kW
  • Kaal: 8,5 kg
  • Mõõdud: 344 x 128 x 108 mm
  • Konks: 1/4"
  • Kinnitusplaadi mõõdud/avade vahe: 48 x 76 mm
  • Juhtpult

Omadused:

  • Kiire
  • Madal elektrivool
  • Automaatne koormuspidur
  • Toide sisse / toide välja
  • Pidur: iselukustuv

RP35 Specifications:

Pulling Capacity:

3500lbs (1589kgs), Single line

Motor(Permanent magnet):

12 Volt DC, 3.5hp

Gear Ratio: 249:1
Drum Dimension: Φ2'' x 3.15'' (Φ50mm x 80mm)
Drum Flange: Φ3.78''(96mm)
Cable: Φ7/32'' x 39' (5.56mm x 12m)
Overall Dimension:

(LxWxH) 13.5'' x 4.5'' x 4.3'' (344 x 128 x 108mm)

Mounting Bolt Pattern: 1.89'' x 3'' (48mm x 76mm)
Net Weight: 18.71lbs (8.5kgs)

Aircraft cable (min,break force 4200lbs)

Dyneema rope available as alternative

3/16'' x 39'' (4.76mm x 12mm)
Hook

1/4''



Performance of 1st layer
Line Pull Line Speed Motor Current
lbs kgs fpm mpm amp
0 0 18.4 5.6 30
1000 454 15.0 4.6 86
2000 907 13.1 4.0 136
3500 1589 9.8 3.0 230



Line Pull & Cable Capacity by Layer
Cable Layer Rated Line Pull Cable Capacity                   Dyneema rope Capacity
    lbs kgs ft meters ft   meters
1 3500 1589 8.2 2.5 9.2 2.8
2 2900 1317 18.0 5.5 20.3 6.2
3 2500 1135 29.2 8.9 33.1 10.1
4 2200 1000 42.0 12.8 47.6 14.5
5 1900 863 45 13.7 50.0 15.2
