Vints ROCK 12V 2720kg IP66

E-post
Elektrivints
Vints ROCK 12V 2720kg IP66Toodete fotod on illustratiivsed

Müügihind549,00 €
Allahindus
Tootekood: WIN-9201-100200

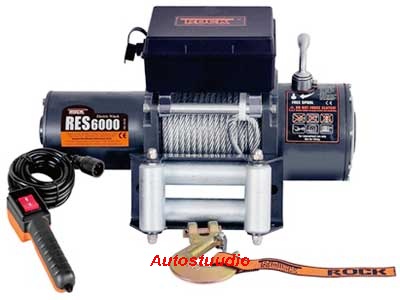

Vints ROCK 12V 2720kg IP66
Vints ROCK 12V 2720kg IP66

Elektrivints ROCK RES6000 12V 3629kg IP66

  • Aircraft teraskaabel: ∅ 7,14mm x 24m
  • Ülekandearv: 210:1
  • Võimsus: 4,6 hp / 3,4 kW
  • Kaal: 29,5 kg
  • Mõõdud: 440 x 161 x 217 mm
  • Kinnitusplaadi avade vahe: 166 x 114,3 mm

Omadused:

  • 5/16" konks
  • Kiire
  • Madal elektrivool
  • Automaatne koormuspidur
  • IP66
  • Toide sisse / toide välja
  • Tugev trummel
Specifications
Model RES6000
E16E05 E16E06
Rated line pull 6000 lbs (2720kgs) single line
Motor(permanent magnet) 12V DC input power:4.6Hp(3.4Kw)
Gear Ratio 210:1
Gear train 3-stage planetary
Brake Automatic load-holding brake
Power in and power out Yes
Free Spooling Yes
Drum Ø2.5"x4.88"(63mmx124mm))
Rope material Steel cable  Synthetic rope
Rope dia.& length Ø9/32"x80'(Ø7.14mmx24m)
Hook(with safety latch) 5/16"
Fairlead Roller fairlead Aluminum hawse fairlead
Winch dimension 17.8"x6.34"x8.54"
(452mmX161mmX217mm)
Mounting bolt pattern 6.54"X4.5"(166mm x114.3mm)
IP rating IP66
N.W.(kgs) 29.5 25.5



Performance of 1st layer
Line Pull Line Speed Motor Current
    12V 12V
lbs kgs fpm mpm amp
0 0 19.5 6.0 80
1500 680 15.8 4.8 125
3000 1360 13.6 4.1 160
4500 2040 10.4 3.2 205
6000 2720 9.0 2.7 220



Line Pull by Layer
Cable Layer Rated Line Pull
  lbs kgs
1 6000 2724
2 4985 2263
3 4264 1936
4 3725 1691
5 3307 1501
