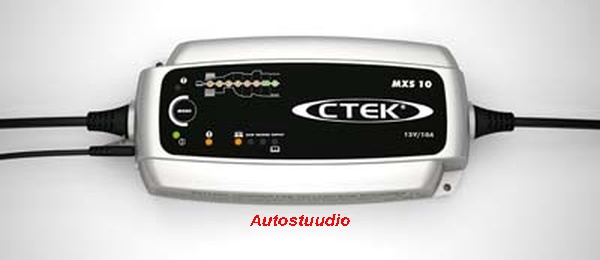

Akulaadija CTEK MXS 10, 12V, max 10A, IP65

Uus tipp-tasemel nn. switch-meetodil töötav täisautomaatne akulaadija 20–300 Ah akude laadimiseks. See laadija kuulub Ctek tipp-tasemel akulaadijate tooteseeriasse. Tegu on viimase sõnaga akulaadijate tehnoloogias.

Tehnilised andmed:

  • Laadija mudel: MXS 10
  • Toite nimipinge, AC (vahelduvvool):  220–240 V AC (vahelduvvool), 50–60 Hz
  • Laadimispinge: 14,4 V, AGM 14,7 V, RECOND 15,8 V, SUPPLY 13,6 V
  • Käivituspinge:  2,0 V
  • Laadimisvool maks: 10 A
  • Toitevool: 1,0 A rms (maksimaalse laadimisvoolu juures)
  • Tagasivool*  Pulsatsioon** <4%
  • Õhutemperatuur: -20 °C kuni +50 °C (kõrge õhutemperatuuri korral vähendatakse laadimisvõimsust automaatselt)
  • Laadija tüüp: 8-etapiline täisautomaatne laadimistsükkel
  • Akutüübid:  Kõik 12 V pliiaku tüübid (WET, MF, Ca/Ca, AGM ja GEL)
  • Aku mahtuvus: 20-200 Ah kuni 300 Ah säilitamiseks
  • Mõõtmed: 197 x 93 x 49 mm (P x L x K)
  • Isolatsiooniklass:  IP65
  • Kaal: 0,8 kg
    *) Tagasivooluks nimetatakse aku ja vooluvõrgust lahti ühendatud laadija vahel eksisteeriva voolu tugevust.
    Ettevõtte CTEK laadijate tagasivool on väga madal.
    **) Laadimispinge ja laadimisvoolu stabiilsus on väga olulised. Voolu tugev pulseerimine soojendab akut,
    mistõttu positiivne elektrood kulub kiiremini. Pinge tugev pulseerimine võib kahjustada teisi akuga ühendatud
    seadmeid. CTEK akulaadijate laadimisvool ja –pinge on väga stabiilsed.

The MXS 10 is a charger that offers state of the art technology. It is ideal for professional use and excellent in workshops, caravans, RVs, boats or cars. The MXS 10 is perfect for solving a broad range of battery problems. It offers features such as battery diagnosis that shows if a battery can receive and retain a charge, a special reconditioning function that restores stratified and deeply discharged batteries, unique maintenance charging and a temperature sensor for optimised charging regardless of the weather conditions. It also has a power supply mode which allows the battery to be disconnected from the vehicle without losing important configurations. The unique display allows the user to follow the entire charging process.

The MXS 10 is a fully automatic 8-step charger that delivers 10A to 12V batteries from 20–200Ah and is suitable for maintenance charging up to 300Ah. The charger is IP 65 classified (splash and dust proof), designed to protect vehicle electronics and non-sparking, reverse polarity protected and short-circuit proof. It is delivered with a 2-year warranty.

Auto: Fully automatic for optimal charging

12V: For all lead-acid batteries

Step 7: Fully charged battery

Step 8: Maintenance charging

Temperature sensor

COLD/AGM: Charging in cold conditions and AGM batteries

RECOND: Recondition of deeply discharged batteries

SUPPLY: Use the charger as a power supply

Model number MXS 10
Volt 12V
Rated Voltage AC 220–240VAC, 50–60Hz
Charging voltage NORMAL: 14.4V, COLD/AGM: 14.7V, RECOND: 15.8V, SUPPLY: 13.6V
Min battery voltage 2.0V
Charging current 10A max
Current, mains 1.0A rms (at full charging current)
Back current drain <1Ah/month
Ripple <4%
Ambient temperature -20°C to +50°C, output power is reduced automatically at high temperatures
Charger type 8 step, fully automatic charging cycle
Battery types All types of 12V lead-acid batteries (WET, MF, Ca/Ca, AGM and GEL)
Battery capacity 20–200Ah, up to 300Ah for maintenance
Dimensions 197 x 93 x 49mm (L x W x H)
Insulation class IP65
Weight 0.8kg
