Akulaadija DEFA MultiCharger 1x12A w/Remote LED
Akulaadija
Toodete fotod on illustratiivsed
Akulaadija DEFA MultiCharger 1x12A w/Remote LED
Sisseehitatud laadija
DEFA MultiCharger 1x12A koos LED kaugloetava laetuse näidikuga esindab akulaadimise uusimat tehnoloogiat ja tagab akudele optimaalse eluea.
Kirjeldus.
DEFA MultiCharger 1x12A koos LED laetuse näidikuga põhineb kaasaegsel lülitusrežiimi tehnoloogial. Need laadijad esindavad akulaadimise uusimat tehnoloogiat ja tagavad akudele optimaalse eluea.
See sobib hästi kuni u. 150Ah ja võib akut hoolduslaadida piiramatu aja jooksul.
Kasutamine.
Laadija talub paralleelset voolukoormust kuni 6A pr. kanali teiselt kasutajalt samal ajal, kui see akut laeb. Laadimispinge on temperatuuri kompenseeritud välise anduriga. Laadija saab ühendada LED laetuse näidikuga.
LED
Roheline impulss – laadimine, roheline tuli – täielikult laetud, punane impulss – viga.
Laadija on hooldusvaba.
Lisaseadmed:
705463 – Võrgukaabel 2,0m Schuko-PlugIn
705294 – 5m Remote LED paneel - laetuse näidik 5m kaabliga
705295 – 10m Remote LED paneel - laetuse näidik 10m kaabliga
705296 – 20m Remote LED paneel - laetuse näidik 20m kaabliga
705297 – 25m Remote LED paneel - laetuse näidik 25m kaabliga

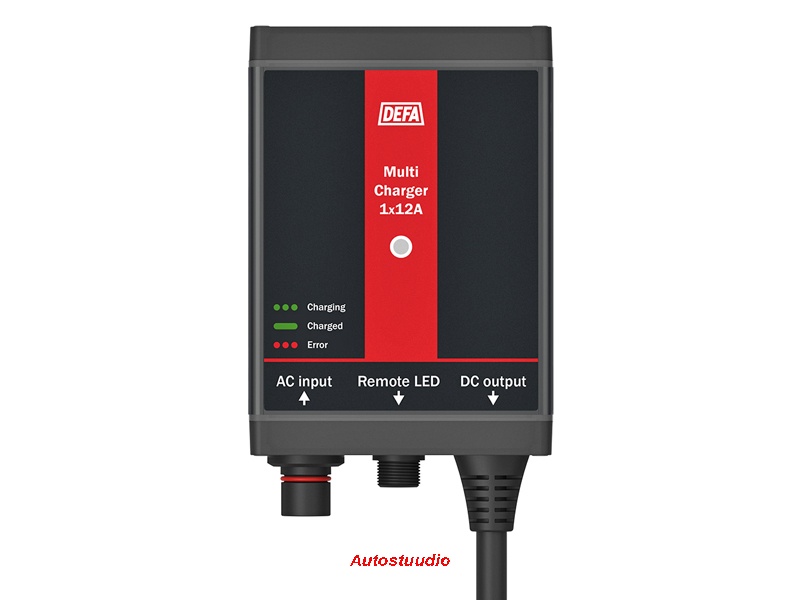

DEFA MultiCharger 1x12A w/Remote LED
Onboard charger
DEFA MultiCharger 1x12A w/Remote LED represent the latest technology within battery charging and will give the batteries optimum life.
Technical description
DEFA AS is conforming to the requirements ISO 9001, ISO 14001 and ISO 45001. In addition to this, our engine heaters and cables are conforming to the requirements of IATF 16949.
- Input voltage: 230V AC
- Operating temperature: -35°C / +50°C
- Charging voltage: 14,4 DC (Temperature-compensated approx 5,0 mV/°C/cell. Ref. 25°C)
- Maintenance charging: 13,5V DC
- Charging current: 12A
- Battery size, max: 150Ah
- IP rating: IP44
- Size (HxWxD): 138 x 98 x 53 mm
- Weight: 1,0kg
- Insulation class: I
- Certification(s): EN60335-1, EN60335-2-29, EN55014-1, EN55014-2, EN61003-3/2
Deascription
DEFA MultiCharger 1x12A w/Remote LED is based on modern switch-mode technology. These chargers represent the latest technology within battery charging and will give the batteries optimum life.
It is well suited to battery sizes up to approx. 150Ah and can maintenance charge the battery for an unlimited time.
Use
The charger can stand parallel current load up to 6A pr. channel from another user at the same time as it charge the battery. The charging voltage is temperature compensated with external sensor. The charger can be connected to a LED remote gauge.
LED
Green pulse – Charging, Green light – Fully charged, Red pulse – Error. The charger is maintenance free.
Accessories:
705463 – Power cable Schuko-PlugIn
705294 – 5m Remote LED panel
705295 – 10m Remote LED panel
705296 – 20m Remote LED panel
705297 – 25m Remote LED panel
Mounting
Equipment damage and possible injuries may result from an incomplete understanding of the installation and operation of the charger. If you are unfamiliar with electrical systems: consult us, a dealer or a licensed electrician. Read the mounting and user guide carefully.
