Jahutusvedeliku temperatuuri andur 40-120°C 5/8″-18UNF-3A hoiatuskontaktiga 97°C
VDO Jahutusvedeliku temperatuuri andur
Toodete fotod on illustratiivsed Alghind: 62,00 €
Müügihind52,70 €
Allahindus -9,30 €
Käibemaks: 9,50 €
Tootekood: 323-803-001-026E
VDO Jahutusvedeliku temperatuuri andur 40-120°C 5/8″-18UNF-3A hoiatuskontaktiga 6-24V
- Temperatuuride vahemik +40°C kuni +120°C
- Keere 1/2" - 14 NPTF
- Takistuste vahemik 287.4 - 22.7 Ohm
- Anduril: 1 kontakt
- Anduriosa pikkus koos keermega 40 mm
- Hoiatuskontaktiga 97 °C ± 3 °C
VDO temp.andurite kataloog 2010
VDO näidikute ja andurite kataloog 2019
VDO Coolant temperature sender 120°C - 5/8-18UNF-3A
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Coolant Temperature |
| Measurement range | +40°C to +120°C |
| Signal analogue | 287.4 - 22.7 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 287.4 - 22.7 Ohm |
| Sensor signal | Common Ground |
| Sensor connector | AMP Male 6.3 x 0.8 mm |
| Thread | 5/8″-18UNF-3A Male |
| Communication | Analog |
| Warning contact | 97 °C ± 3 °C |
| Connector type | AMP Blade 6.3 x 0.8 mm |
| Warning Contact Connector | AMP Male 6.3 X 0.8 Mm |
VDO 323-803-001-026E Full technical specifications:
Mechanical features:
| Temperature measuring range: | +40 °C to +120 °C |
| Minimum - Maximum operating temperature: | -40 °C to +150 °C |
| Thread: | 5/8″-18UNF-3A |

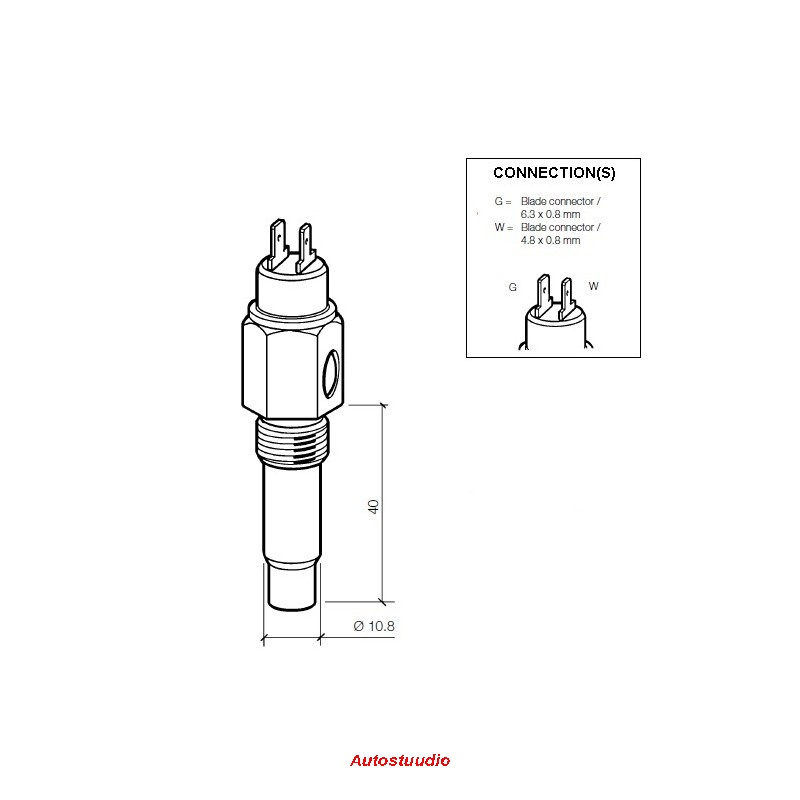

| Sender element length + thread (L): | 40 mm |
| Sensor diameter: | 10.8 mm |
| Torque: | 20 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 287.4 - 22.7 Ohm |
| Temperature sensor signal: | Single-Pole insulated return |
| Warning contact: | 97 °C ± 3 °C |
| Warning contact switching capacity: | 1.2 - 3 Watt non-inductive |
| Warning contact features: | Contact closes with rising temperature |
| Temperature sender connector: | AMP Male 6.3 x 0.8 mm |
| Warning contact connector: | AMP Male 4.8 x 0.8 mm |
| Type of connection: | A |

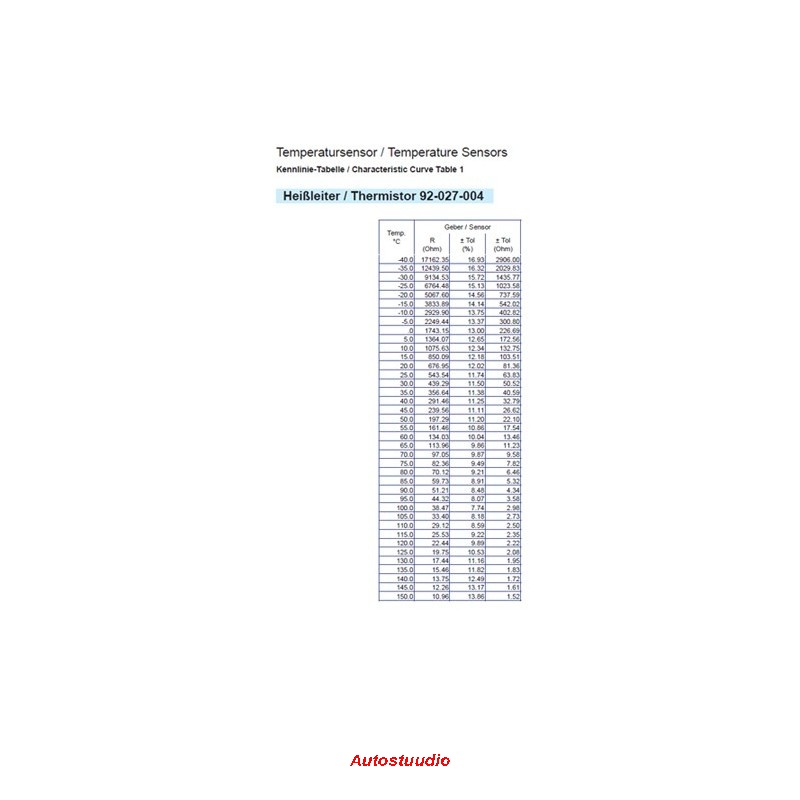

| Temperature 100 °C > Resistance: | 100 °C = 38.47 Ohm ± 2.98 Ohm |
| VDO Sensors for Instrumentation 2019 catalog | Page 34 - 35 |
Retail package:
- VDO 323-803-001-026E Temperature sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
