Õli temperatuuri andur 50-150°C M10x1,5
Õli temperatuuriandur 50-150°C M10x1.5
Toodete fotod on illustratiivsed
_90x90.jpg)
.jpg){kind=link}
_90x90.jpg)
.jpg){kind=link}
VDO Õli temperatuuri andur 50-150°C M10x1,5 6-24V
Asendustoode: A2C1755400001
- Temperatuuride vahemik: +50°C kuni +150°C
- Keere: M10 x 1.5
- Takistuste vahemik: 322.8 - 18.6 Ohm
- Anduri signaal: 1-klemm maandusega
- Ilma hoiatuskontaktita
- Anduriosa pikkus koos keermega 22mm
VDO temperatuuriandurite kataloog (pdf)
VDO näidikute ja andurite kataloogi saab alla laadida SIIN
VDO Oil temperature sender 150°C - M10x1.5
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Oil temperature |
| Measurement range | +50°C to +150°C |
| Signal analogue | 322.8 - 18.6 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 322.8 - 18.6 Ohm |
| Sensor signal | Common ground |
| Sensor connector | AMP Male T-model 6.3 x 0.8 mm |
| Thread | M10 x 1.5 Male |
| Communication | Analog |
| Warning contact | No |
| Connector type | AMP Blade T-model 6.3 x 0.8 mm |
VDO 323-801-010-001D Full technical specifications:

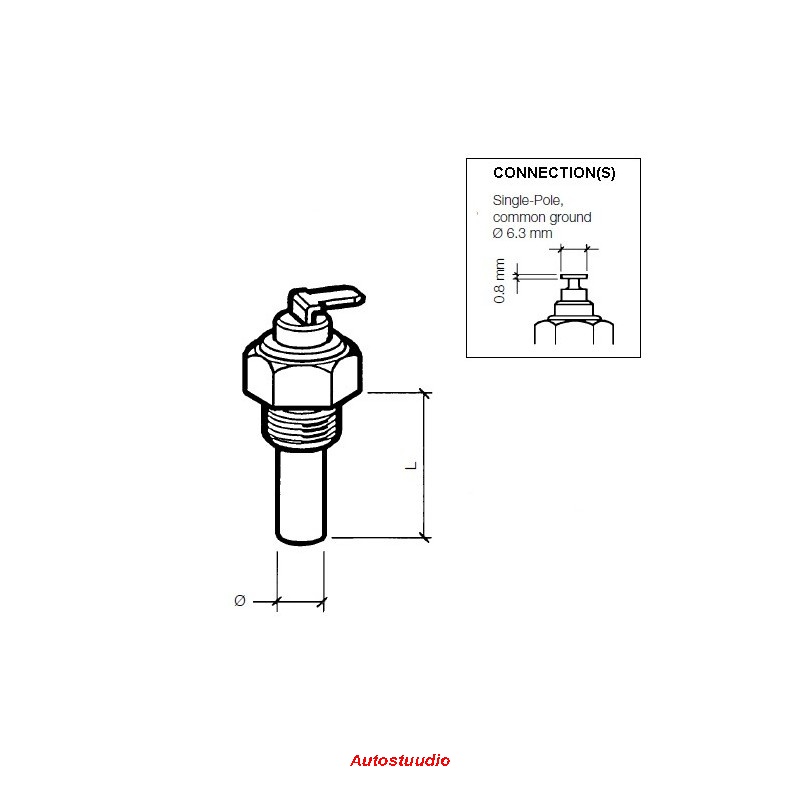

Mechanical features:
| Temperature measuring range: | +50 °C to +150 °C |
| Minimum - Maximum operating temperature: | -40 °C to +180 °C |
| Thread: | M10 x 1.5 |
| Sender element length + thread (L): | 22 mm |
| Sensor diameter: | 6.9 mm |
| Torque: | 10 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 322.8 - 18.6 Ohm |
| Temperature sensor signal: | Single-Pole common ground |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Temperature sender connector: | AMP Male T-model 6.3 x 0.8 mm |
Datasheets and Tables:
| Type of connection: | C |
| VDO 2014 Vehicle Electronics Catalog: | Page 136 - 137 |

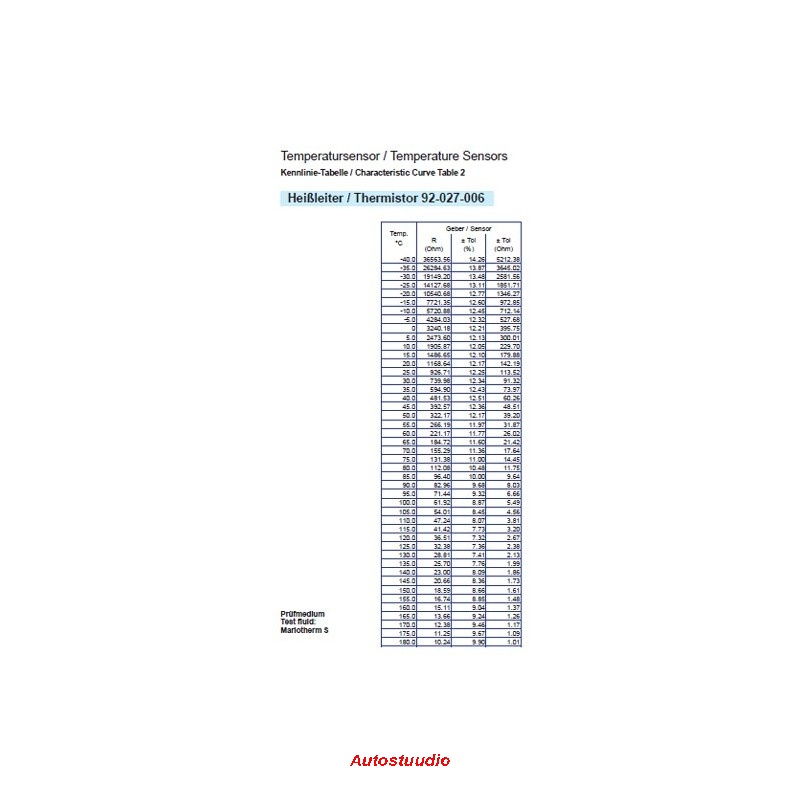

| VDO Temperature senders tables: | VDO table: 2 |
| Temperature 100 °C > Resistance: | 100 °C = 61.92 Ohm ± 5.49 Ohm |
Retail package:
- VDO 323-801-010-001D Temperature sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
