Õli temperatuuri andur 50-150°C M14x1,5 hoiatuskontaktiga 130°C
Õli temperatuuriandur 50-150°C M14x1.5 hoiatuskontaktiga 130°C
Toodete fotod on illustratiivsed

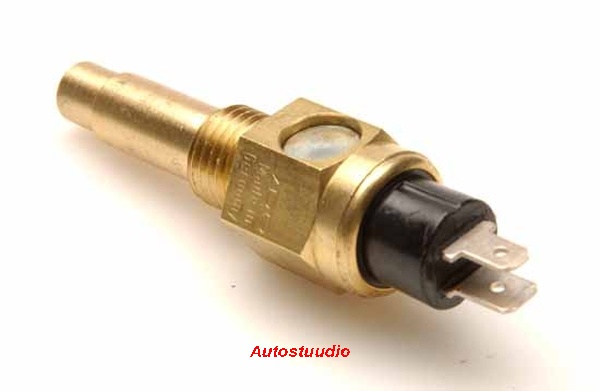

VDO Õli temperatuuri andur 50-150°C M14x1.5 hoiatuskontaktiga 6-24V
Asendustoode: A2C1755510001
- Temperatuuride vahemik: +50°C kuni +150°C
- Keere: M14 x 1.5
- Takistuste vahemik: 322.8 - 18.6 Ohm
- Anduri signaal: 1 kontakti maandusega
- Anduriosa pikkus koos keermega 40 mm
- Hoiatuskontaktiga: 130 °C ± 3 °C
OEM / OE number:
- DEUTZ-FAHR: 01179305
VDO temperatuuriandurite kataloog (pdf)
VDO näidikute ja andurite kataloogi saab alla laadida SIIN
VDO Oil temperature sender 150°C - M14x1.5
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Oil Temperature |
| Measurement range | +50°C to +150°C |
| Signal analogue | 322.8 - 18.6 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 322.8 - 18.6 Ohm |
| Sensor signal | Common Ground |
| Sensor connector | AMP Male 6.3 x 0.8 mm |
| Thread | M14 x 1.5 Male |
| Communication | Analog |
| Warning contact | 130 °C ± 3 °C |
| Connector type | AMP Blade 6.3 x 0.8 mm |
| Warning Contact Connector | AMP Male 4.8 x 0.8 mm |

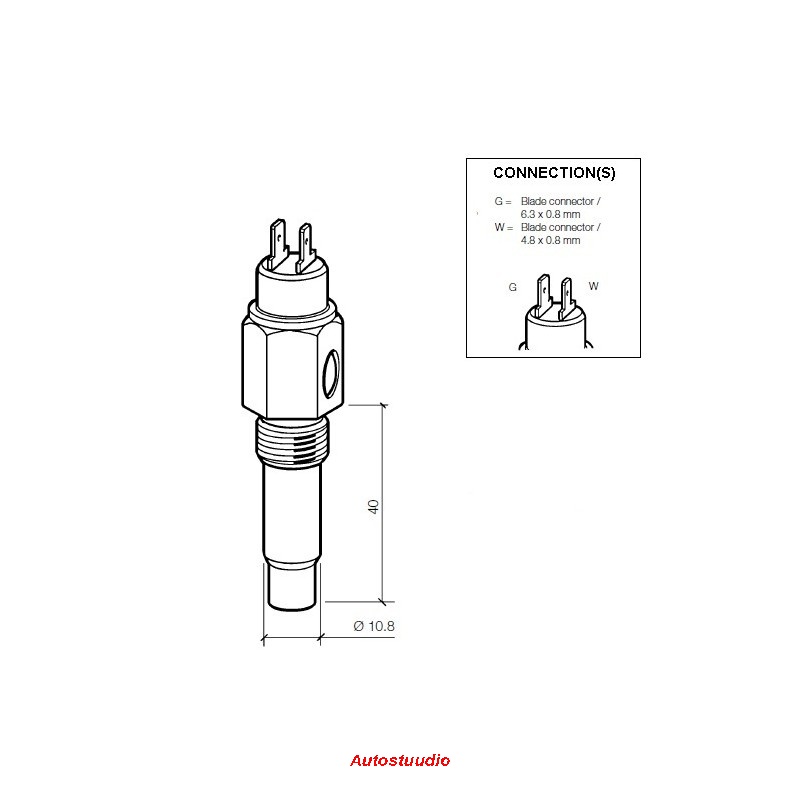

VDO 323-803-002-016D Full technical specifications:
Mechanical features:
| Temperature measuring range: | +50 °C to +150 °C |
| Minimum - Maximum operating temperature: | -40 °C to +180 °C |
| Thread: | M14 x 1.5 |
| Sender element length + thread (L): | 40 mm |
| Sensor diameter: | 10.8 mm |
| Torque: | 20 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 322.8 - 18.6 Ohm |
| Temperature sensor signal: | Single-Polecommon ground |
| Warning contact: | 130 °C ± 3 °C |
| Warning contact switching capacity: | 1.2 - 3 Watt non-inductive |
| Warning contact features: | Contact closes with rising temperature |
| Temperature sender connector: | AMP Male 6.3 x 0.8 mm |
| Warning contact connector: | AMP Male 4.8 x 0.8 mm |
Datasheets and Tables:
| VDO Sensors for Instrumentation 2010 catalog | Page 34 - 35 |
| Type of connection: | A |

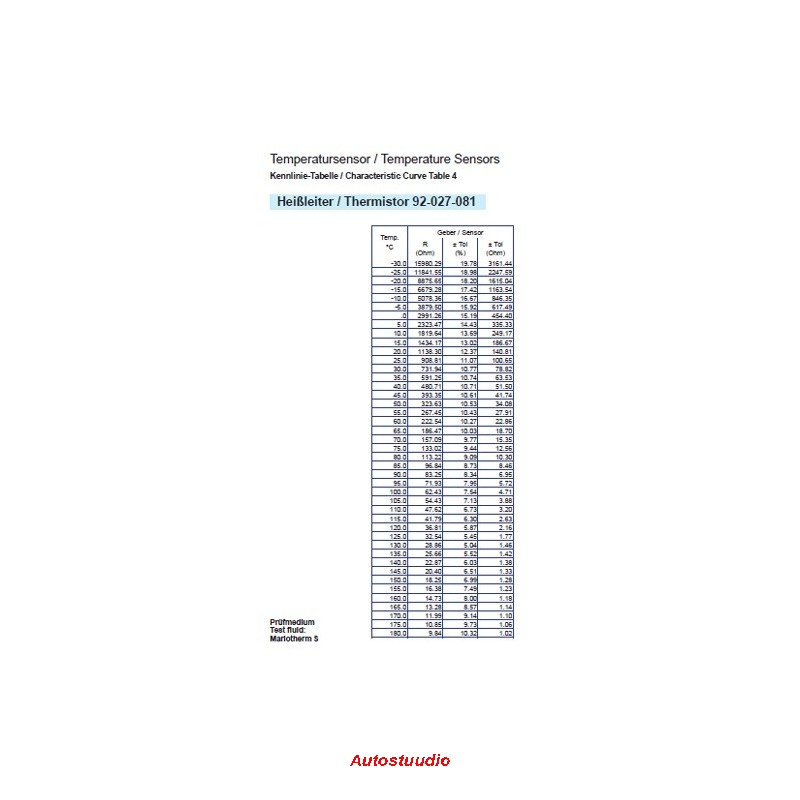

| Temperature 100 °C > Resistance: | 100 °C = 62.43 Ohm ± 4.71 Ohm |
Retail package:
- VDO 323-803-002-016D Temperature sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
