VDO - Veratron Paagi (kütus, vesi) sügavuse toruandur - tasemeandur 250mm ø 54mm 90ohm
VDO A2C1750190001
Data sheet
Tank depth | 250 mm to 300 mm |
Installation diameter | 54 mm SAE 5-Hole flange |
Application | VDO Level Measurement |
Category | Fuel level sensors |
Signal analogue | Empty - Full: 90 - 4 Ohm |
Operating voltage | 6 - 24 Volt DC |
Sensor signal | Insulated Return |
Adjustable sensor | No |
Communication | Analog |
Warning contact | No |
Connector type | TE Superseal 2-Pole IP67 |
Sensor type | Fuel Tubular Sensors 54mm SS |

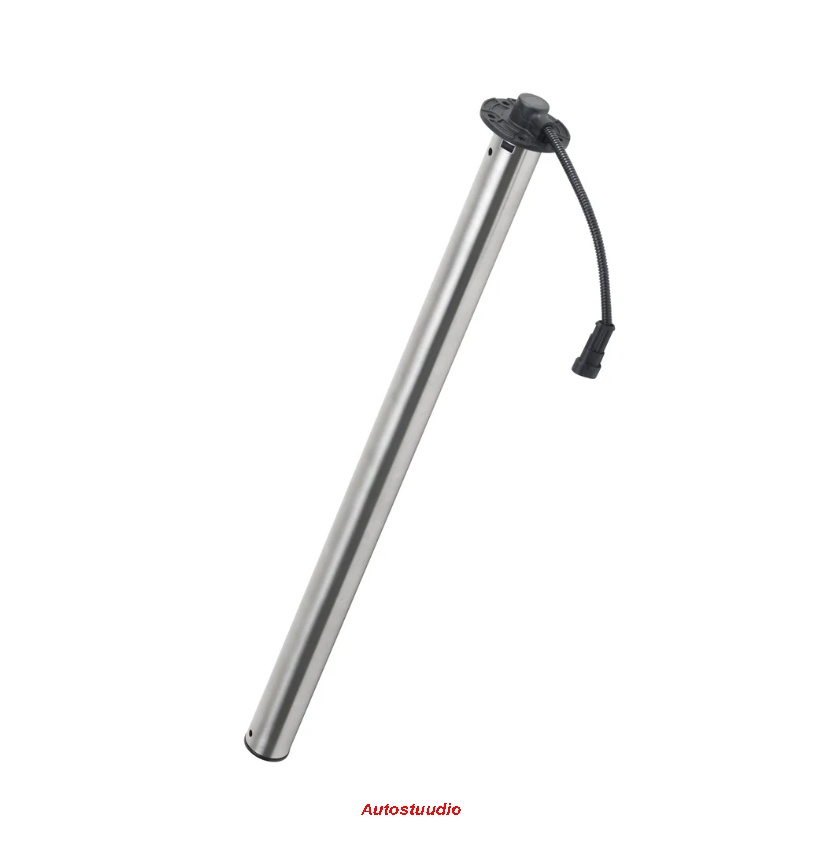

Description ø 54mm Tubular fuel sensor:
Veratron A2C1750190001 Full technical specifications:

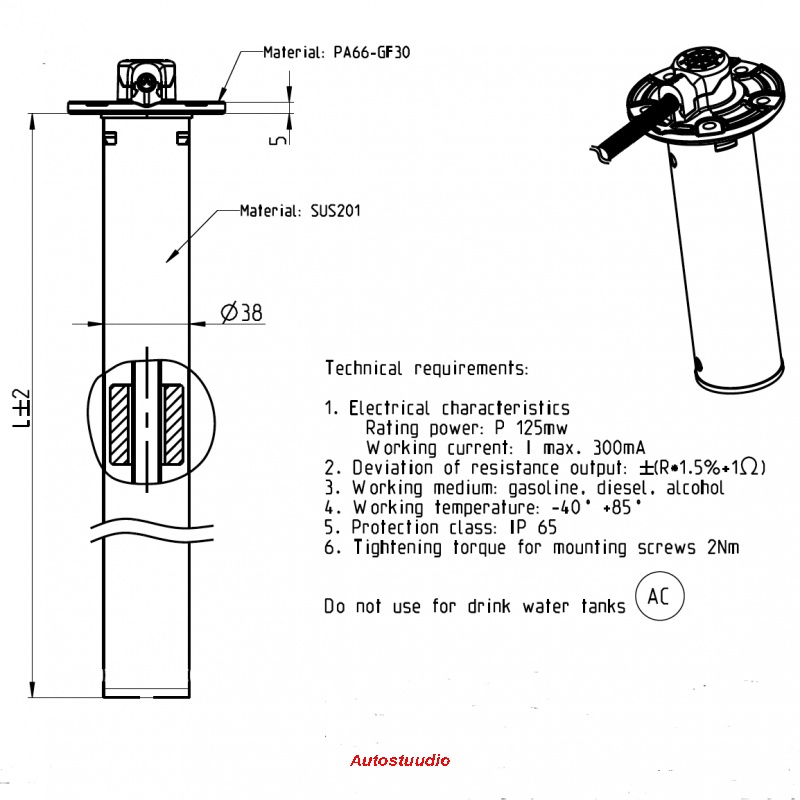

Mechanical features:
Tube length: | 250 mm ± 2.0 mm |
Minimum tank depth: | 250 mm ± 2.0 mm + 4.0 mm |
Support spring: | No |

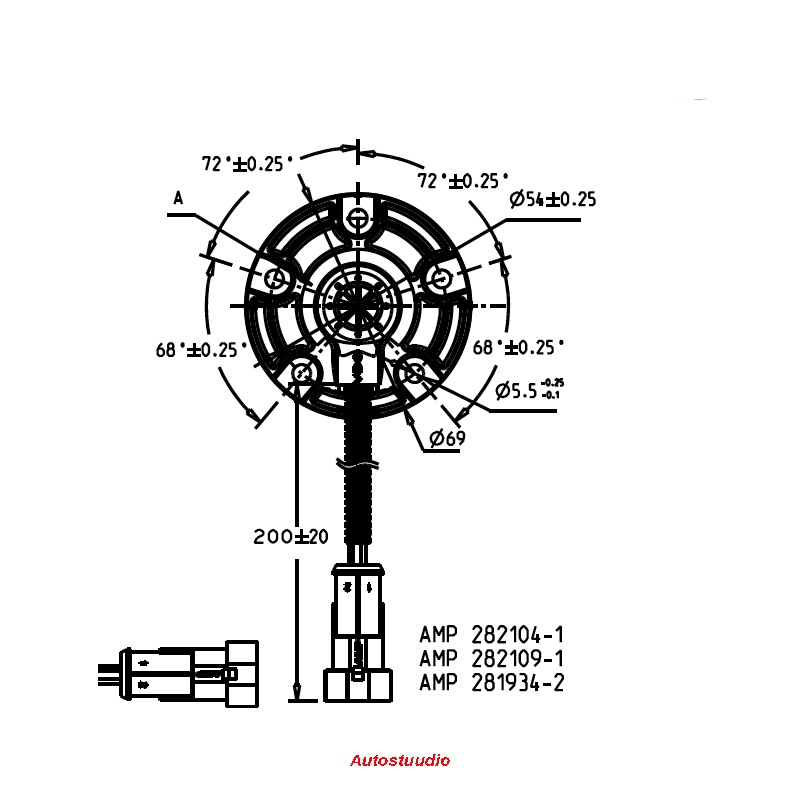

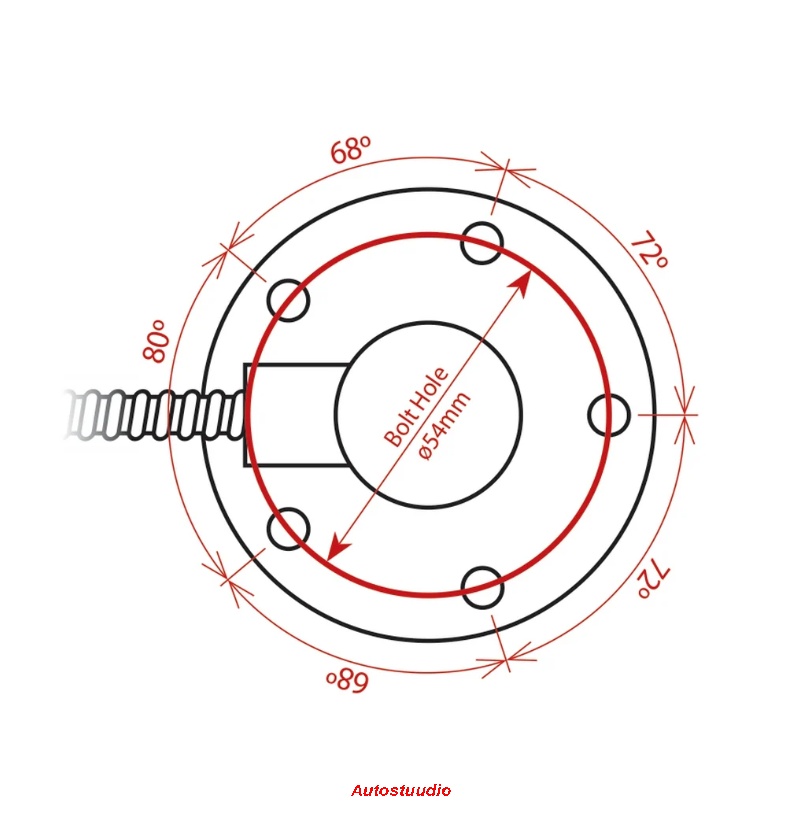

Mounting flange: | 5-Hole SAE 54 mm |
Operating temperature: | -25 °C to +65 °C |
Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
Operating voltage: | 6 - 24 V DC |
Resistance empty: | 90 Ohm ± 2.5 Ohm |
Resistance full: | 4.0 Ohm ± 1.5 Ohm |
Warning contact: | No |
Optional warning contact: | Veratron A2C59510886 Makepoint Switch |

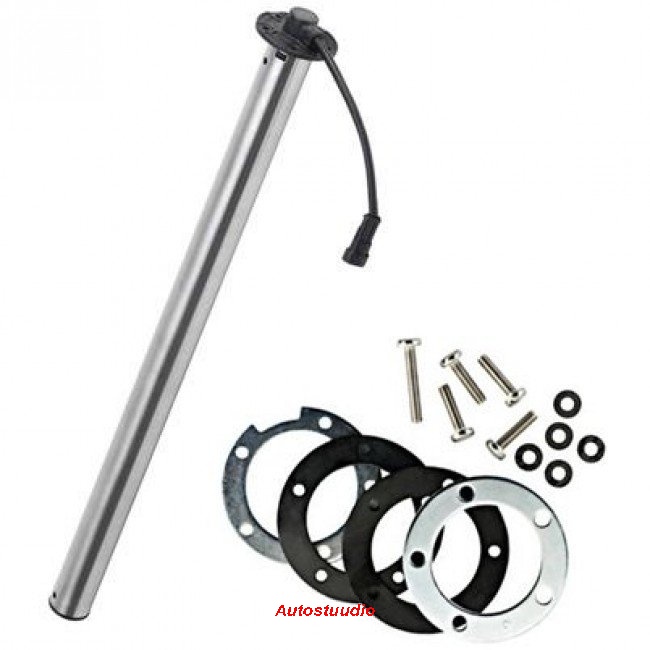

Retail package:
