Rõhulüliti M10x1K 2.5Bar /36.25PSI
Rõhulüliti M10x1 lühike 2.50±0.30 Bar 6-24V
Toodete fotod on illustratiivsed

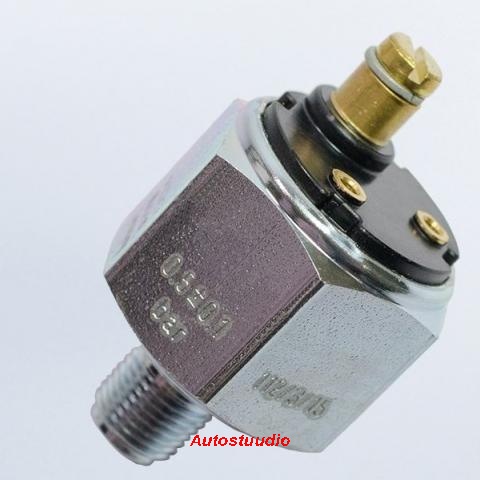

VDO Õlirõhu lüliti M10x1 lühike 2.50±0.30 Bar 6-24V
- Rõhu lülituspunkt: 2.50 Bar ± 0.30 Bar
- Maandus: 1-klemmiga Standard
- Keere: M10 x 1,0 (lühike koonus)
- Klemm: M4 x 5
- Pinge vahemik: 6-24V
Kontakt sulgub, kui rõhk tõuseb.
VDO Pressure switch 2.50 Bar - M10x1.0 Short
Data sheet
| Application | VDO Engine monitoring |
| Category | Pressure Switches |
| Signal Analogue | Contact Closes With Rising Pressure |
| Operating voltage | 6 - 24 Volt DC |
| Sensor signal | Common ground |
| Thread | M10 X 1 Male Tapered Short |
| Switchpoint | 2.50 Bar |
VDO 230-112-001-005C Full technical specifications:
Mechanical features:
| Pressure switchpoint: | 2.50 Bar ± 0.30 Bar |
| Pressure range: | 0 - 12 Bar |
| Maximum pressure: | 30 Bar during 2 seconds |

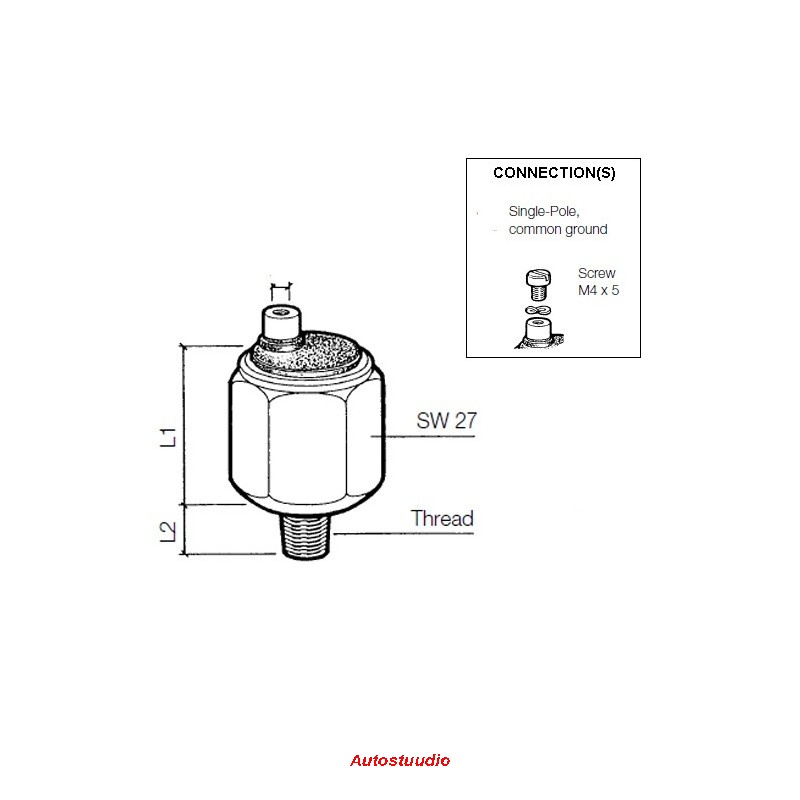

| Thread: | M10 x 1 Conical short |
| Length thread + nut (L1): | 26 mm |
| Thread length (L2): | 11 mm |
| Torque: | 30 Nm |
| Operating temperature: | –25 °C to +120°C |
| Housing: | Hex 27 mm - contact chamber vented |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Switch function: | Contact closes when pressure > 2.50 Bar |
| Pressure switch signal: | Single-Pole common ground |
| Contact response: | Slow |
| Pressure switch capacity: | Maximum 5 Watt non-inductive |
| Pressureswitch connector: | M4 Screw |
Datasheets and Table:
| VDO 2014 Vehicle Electronics Catalog: | Page 131 - 132 |
| Type of connection: | Model: 1A7 |
Retail package:
- VDO 230-112-001-005C Pressure switch
- VDO Sensors are - unless otherwise noted - delivered without connecting material
