Jahutusvedeliku temperatuuri andur 40-120°C M14x1,5 hoiatuskontaktiga 106°C
Temperatuuriandur 40-120°C M14x1.5 hoiatuskontaktiga 106°C
Toodete fotod on illustratiivsed
Array
Müügihind65,40 €
Allahindus
Käibemaks: 12,66 €
Tootekood: 2801105015351
VDO Jahutusvedeliku temperatuuri andur 40-120°C M14x1,5 hoiatuskontaktiga 6-24V
Asendustoode: 323-803-001-013D
- Temperatuuride vahemik: +40°C kuni +120°C
- Keere: M14 x 1.5
- Takistuste vahemik: 287.4 - 22.7 Ohm
- Anduri signaal: 1 kontakti maandusega
- Anduriosa pikkus koos keermega 40 mm
- Hoiatuskontaktiga: 106 °C ± 3 °C
OEM / OE nr (TS wWC CG):
- AGCO - X830.030.085, X830-030-085, X830030085
- FENDT - X830.030.085, X830-030-085, X830030085
- MB - 008 542 10 17 , A008 542 10 17, A0085421017, A008-542-10-17
VDO temperatuuriandurite kataloog 2010
VDO näidikute ja andurite kataloog 2019
VDO Coolant temperature sender 120°C - M14x1.5
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Coolant Temperature |
| Measurement range | +40°C to +120°C |
| Signal analogue | 287.4 - 22.7 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 287.4 - 22.7 Ohm |
| Sensor signal | Common Ground |
| Sensor connector | AMP Male 6.3 x 0.8 mm |
| Thread | M14 x 1.5 Male |
| Communication | Analog |
| Warning contact | 106 °C ± 3 °C |
| Connector type | AMP Blade 6.3 x 0.8 mm |
| Warning Contact Connector | AMP Male 4.8 x 0.8 mm |
VDO 2801105015351 Full technical specifications:
Mechanical features:
| Temperature measuring range: | +40 °C to +120 °C |
| Minimum - Maximum operating temperature: | -40 °C to +150 °C |
| Thread: | M14 x 1.5 |

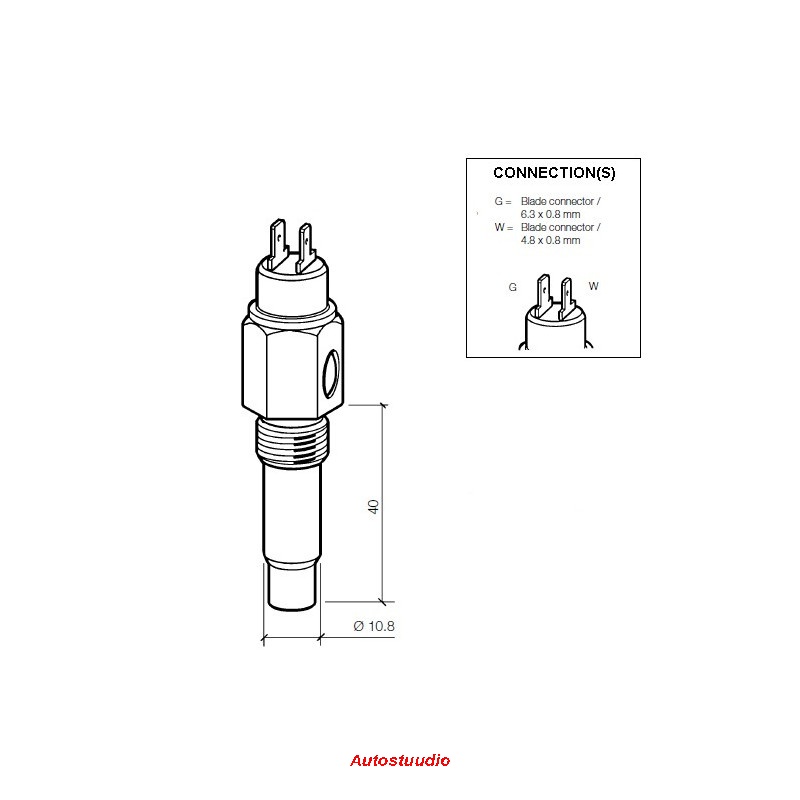

| Sender element length + thread (L): | 40 mm |
| Sensor diameter: | 10.8 mm |
| Torque: | 20 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 287.4 - 22.7 Ohm |
| Temperature sensor signal: | Single-Pole common ground |
| Warning contact: | 106 °C ± 3 °C |
| Warning contact switching capacity: | 1.2 - 3 Watt non-inductive |
| Warning contact features: | Contact closes with rising temperature |
| Temperature sender connector: | AMP Male 6.3 x 0.8 mm |
| Warning contact connector: | AMP Male 4.8 x 0.8 mm |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 142 - 143 |
| Type of connection: | A |
| VDO Temperature senders tables: | VDO table: 1 |
| Temperature 100 °C > Resistance: | 100 °C = 38.47 Ohm ± 2.98 Ohm |
Retail package:
- VDO 2801105015351 Temperature sensor
- VDO Sensors are - unless otherwise noted - delivered without connecting material
