Temperatuurilüliti 105°C 1/2″-14 NPTF

Temperatuuri lüliti 105°C 1/2″-14 NPTF

Toodete fotod on illustratiivsed

Müügihind71,50 €

Allahindus

Käibemaks: 13,84 €

Tootekood: 232-011-017-041D

VDO Jahutusvedeliku temperatuurilüliti 105°C 1/2″-14 NPTF 6-24V (2503001749384)

Tehnilised näitajad:

Temperatuuri lülituspunkt: 105°C ± 3°C
Tüüp: A
Lülitusvõimsus: 1.2 - 3 W Max
1-klemm, maandusega
Temperatuurilüliti vedelikele (Bi-Metall)
Keere 1/2" - 14 NPTF
Lüliti annab maanduse, kontakt sulgub kui temperatuur ületab häiretemperatuuri > 105ºC

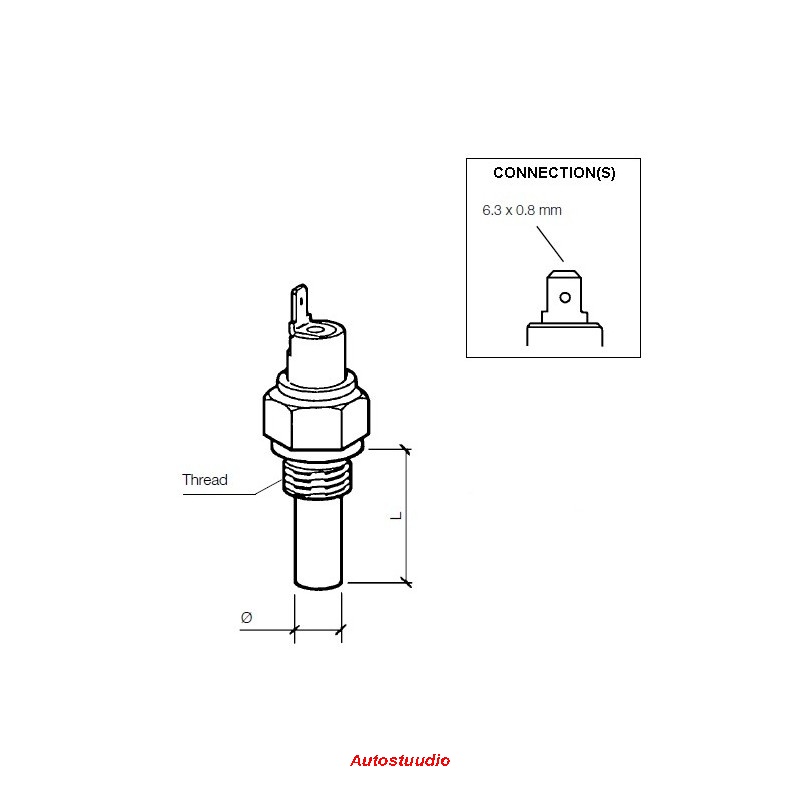

Keerme + anduriosa pikkus L = 29mm, anduriosa läbimõõt ∅10mm
Lubatud viga +- 3°C
Max Temp. 120°C

Alternatiivne toode: 232-011-017-131D

VDO Temperature switch 105°C - 1/2″-14 NPTF

Data sheet

Application	VDO Engine monitoring
Category	Temperature switches
Functionality	Coolant temperature
Signal Analogue	Contact Closes At Limiting Value
Operating voltage	6 - 24 Volt DC
Sensor signal	Common ground
Thread	1/2"-14 NPTF Male
Switchpoint	105 °C

VDO 232-011-017-041D Full technical specifications:

Mechanical features:

Temperature switchpoint:	105 °C ± 3 °C
Maximum operating temperature:	120 °C
Thread:	1/2"-14 NPTF
Switch element length + thread (L):	29 mm
Sensor diameter:	10 mm

Electrical features:

Operating voltage:	6 - 24 V DC
Switch function:	Contact closes when temperature > 105 °C
Temperature switch signal:	Single-Pole common ground
Contact response:	Slow
Temperature switch capacity:	Maximum 1.2 - 3 Watt non-inductive
Temperature switch connector:	AMP Male 6.3 x 0.8 mm

VDO 2014 Vehicle Electronics Catalog:	Page 148 - 150
Type of connection:	A

Retail package:

VDO 232-011-017-041D Temperature switch
VDO Sensors are - unless otherwise noted - delivered without connecting material
