Temperatuurilüliti 92°C M14x1.5

Temperatuuri lüliti 92°C M14x1.5

Toodete fotod on illustratiivsed

Müügihind70,15 €

Allahindus

Käibemaks: 13,58 €

Tootekood: 232-011-017-033D

VDO Jahutusvedeliku temperatuurilüliti 92°C M14x1.5 6-24V

Tehnilised näitajad:

Temperatuuri lülituspunkt: 92°C ± 3°C
Tüüp: A
Lülitusvõimsus: 1.2 - 3 W
1-klemm, maandusega
Temperatuurilüliti vedelikele (Bi-Metall)
Keere: M14 x 1.5
Lüliti annab maanduse, kontakt sulgub kui temperatuur ületab häiretemperatuuri > 92ºC

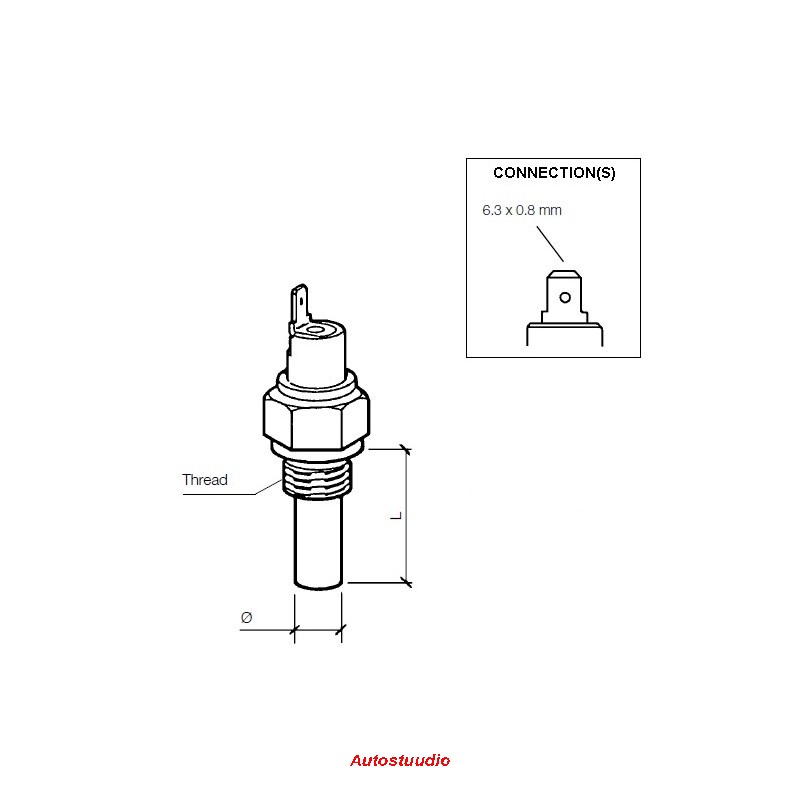

Keerme + anduriosa pikkus L = 29mm, anduriosa läbimõõt ∅ 10mm
Lubatud viga +- 3°C
Max Temp. 120°C

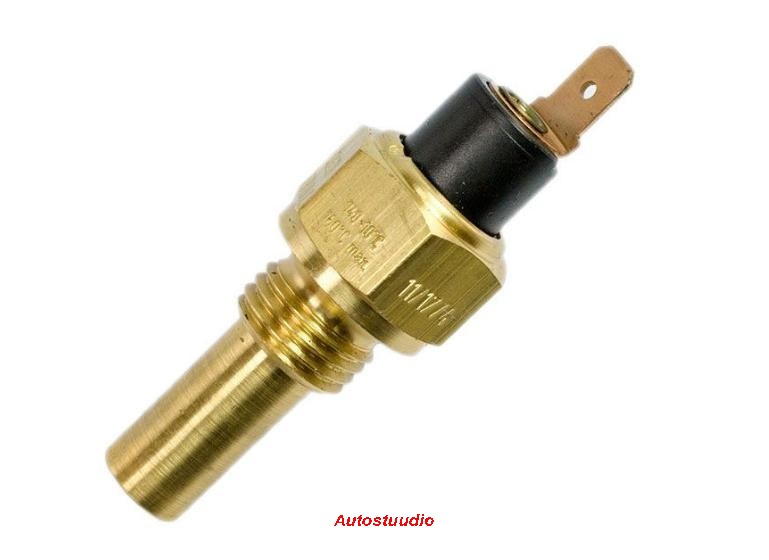

VDO Temperature switch 92°C - M14x1.5

Data sheet

Application	VDO Engine monitoring
Category	Temperature switches
Functionality	Coolant temperature
Signal Analogue	Contact Closes At Limiting Value
Operating voltage	6 - 24 Volt DC
Sensor signal	Common ground
Thread	M14 x 1.5 Male
Switchpoint	92 °C

VDO 232-011-017-033D Full technical specifications:

Mechanical features:

Temperature switchpoint:	92 °C ± 3 °C
Maximum operating temperature:	120 °C
Thread:	M14 x 1.5
Switch element length + thread (L):	29 mm
Sensor diameter:	10 mm

Electrical features:

Operating voltage:	6 - 24 V DC
Switch function:	Contact closes when temperature > 92 °C
Temperature switch signal:	Single-Pole common ground
Contact response:	Slow
Temperature switch capacity:	Maximum 1.2 - 3 Watt non-inductive
Temperature switch connector:	AMP Male 6.3 x 0.8 mm

VDO 2014 Vehicle Electronics Catalog:	Page 148 - 150
Type of connection:	A

Retail package:

VDO 232-011-017-033D Temperature switch
VDO Sensors are - unless otherwise noted - delivered without connecting material
