Temperatuurilüliti 98°C 5/8″-18 UNF-2A

Temperatuuri lüliti 98°C 5/8″-18 UNF-2A

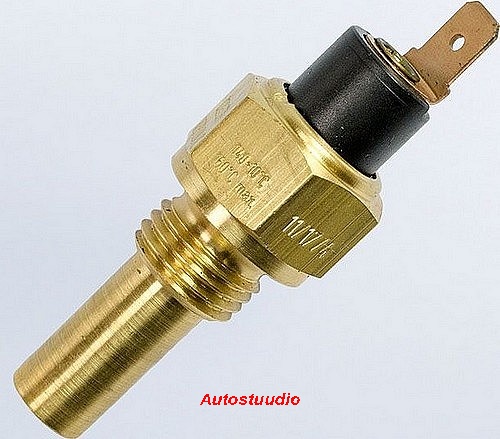

Toodete fotod on illustratiivsed

Tootekood: 232-011-017-099D

VDO Jahutusvedeliku temperatuurilüliti 98°C 5/8″-18 UNF-2A 6-24V (2503001749438)

Tüüp A
1.2 - 3 W
1-poolne maandus
Temperatuurilüliti vedelikele (Bi-Metall)
Keere 5/8"-18 UNF-2A
Lüliti annab maanduse, kontakt sulgub kui temperatuur ületab häiretemperatuuri > 98ºC
Keerme + anduriosa pikkus L = 29mm, anduriosa läbimõõt ∅ 10mm
Lubatud viga +- 3°C
Max Temp. 120°C

VDO andurite ja lülitid kataloogi saab vaadata SIIN

VDO Temperature switch 98°C - 5/8″-18 UNF-2A

Data sheet

Application	VDO Engine monitoring
Category	Temperature switches
Functionality	Coolant temperature
Signal Analogue	Contact Closes At Limiting Value
Operating voltage	6 - 24 Volt DC
Sensor signal	Common ground ( Minus in mass)
Thread	5/8″-18 UNF-2A Male
Switchpoint	98 °C

VDO 232-011-017-099D Full technical specifications:

Mechanical features:

Temperature switchpoint:	98 °C ± 3 °C
Maximum operating temperature:	120 °C
Thread:	5/8″-18 UNF-2A
Switch element length + thread (L):	29 mm
Sensor diameter:	10 mm

Electrical features:

Operating voltage:	6 - 24 V DC
Switch function:	Contact closes when temperature > 98 °C
Temperature switch signal:	Single-Pole common ground
Contact response:	Slow
Temperature switch capacity:	Maximum 1.2 - 3 Watt no-inductive
Temperature switch connector:	Flat Plug 6.3 x 0.8 mm

VDO 2014 Vehicle Electronics Catalog:	Page 148 - 150
Type of connection:	A

Retail package:

VDO 232-011-017-099D Temperature switch
VDO Sensors are - unless otherwise noted - delivered without connecting material
