Jahutusvedeliku temperatuuri andur 40-120°C 1/4″-18NPTF
Jahutusvedeliku temperatuuriandur 40-120°C 1/4″-18NPTF
Toodete fotod on illustratiivsed
_90x90.jpg)
.jpg){kind=link}

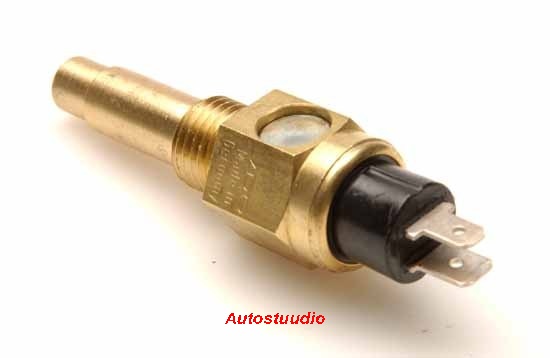

VDO jahutusvedeliku temperatuuriandur 40-120°C 1/4″-18NPTF 6-24V
- Temperatuuride vahemik: +40°C kuni +120°C
- Keere: 1/4" - 18 NPTF
- Anduri takistuse vahemik: 287.4 - 22.7 Ohm
- Anduri signaal: isoleeritud tagastus
- Hoiatuskontaktita
- Anduriosa pikkus koos keermega 29mm
VDO näidikute ja andurite kataloogi saab alla laadida SIIN
VDO Coolant temperature sender 120°C - 1/4″-18 NPTF
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Coolant temperature |
| Measurement range | +40°C to +120°C |
| Signal analogue | 287.4 - 22.7 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 287.4 - 22.7 Ohm |
| Sensor signal | Insulated return |
| Sensor connector | AMP Male 6.3 x 0.8 mm |
| Thread | 1/4"-18NPTF Male |
| Communication | Analog |
| Warning contact | No |
| Connector type | AMP Blade 6.3 x 0.8 mm |
VDO 323-805-001-007N Full technical specifications:
Mechanical features:
| Temperature measuring range: | +40 °C to +120 °C |
| Minimum - Maximum operating temperature: | -40 °C to +150 °C |
| Thread: | 1/4"-18NPTF |

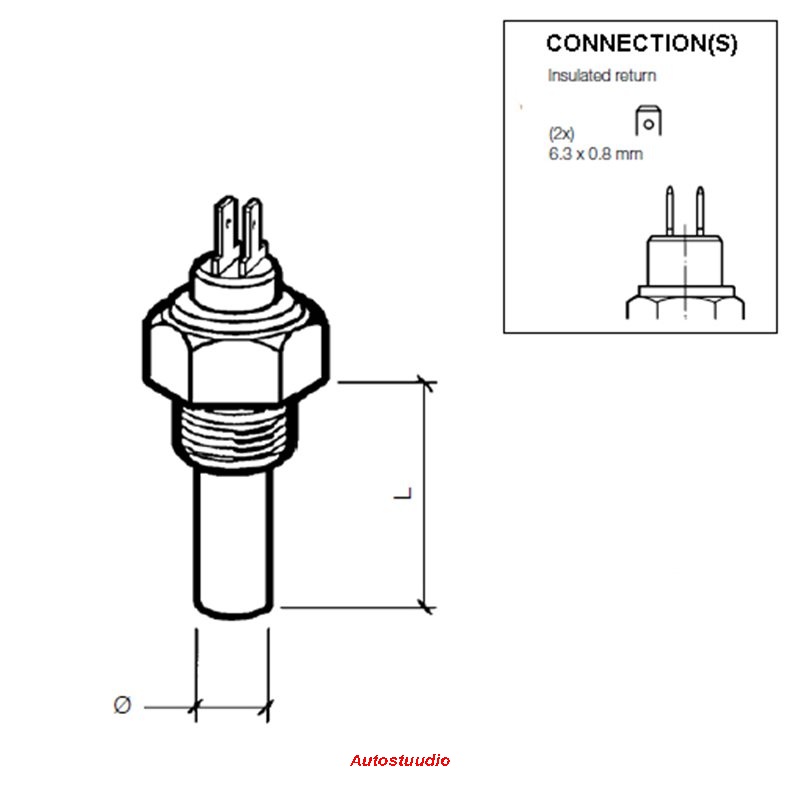

| Sender element length + thread (L): | 29 mm |
| Sensor diameter: | 11 mm |
| Torque: | 20 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 287.4 - 22.7 Ohm |
| Temperature sensor signal: | Dual-Pole insulated return |
| Warning contact: | No |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Temperature sender connector: | AMP Male 6.3 x 0.8 mm |
Datasheets and Tables:
| Special VehicleProducts Catalogue 2019 | Page 58 |
| Type of connection: | G |

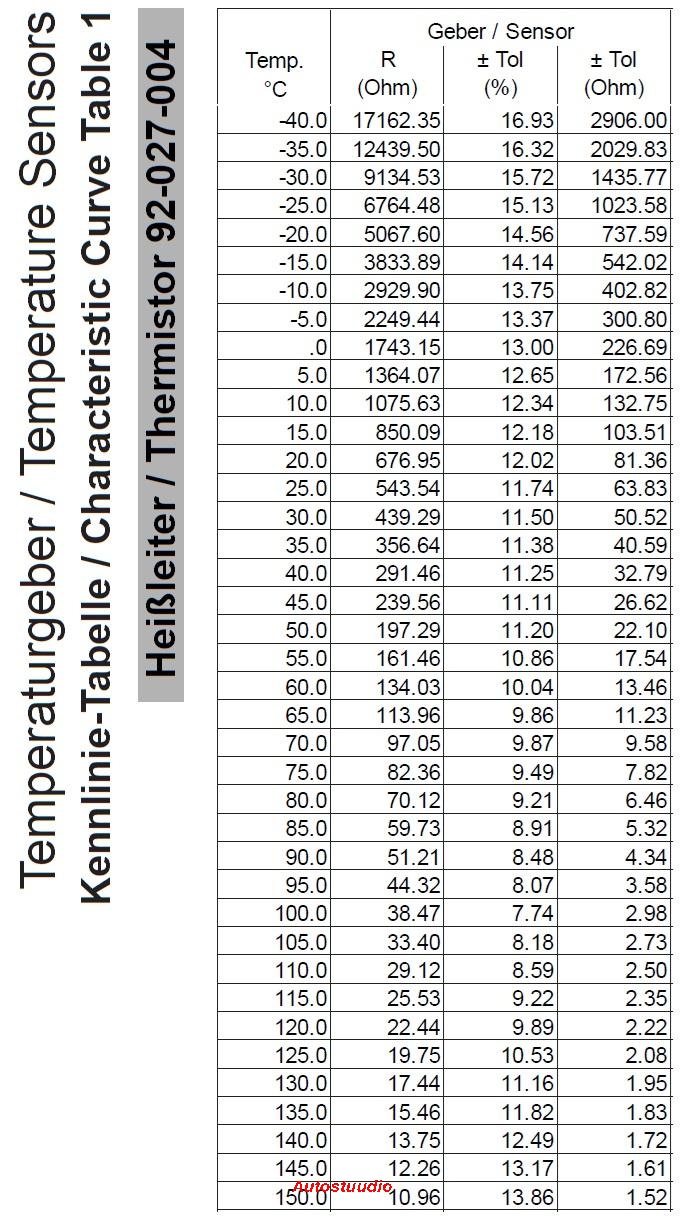

| VDO Temperature senders tables: | VDO table 1 |
| Temperature 100 °C > Resistance: | 100 °C = 38.47 Ohm ± 2.98 Ohm |
