Jahutusvedeliku temperatuuriandur 40-120°C 1/8″- 27NPTF
Jahutusvedeliku temperatuuriandur 40-120°C 1/8″- 27 NPTF
Toodete fotod on illustratiivsed

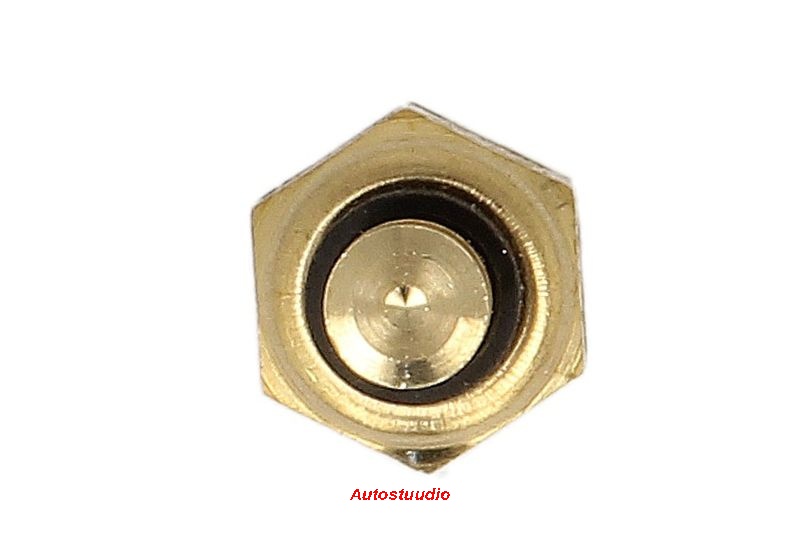

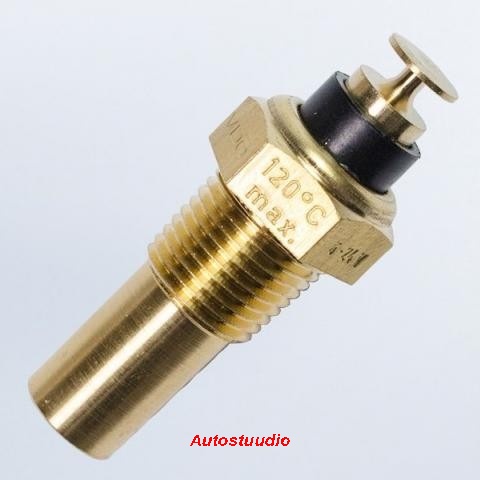

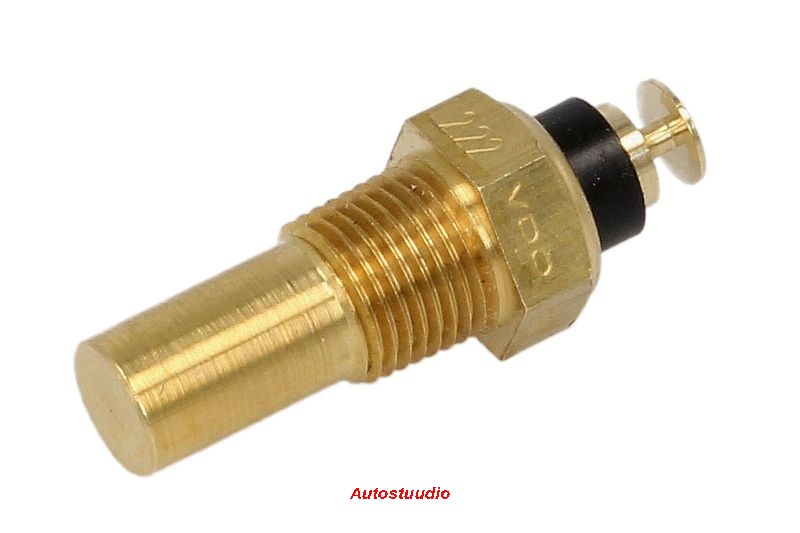

Continental - VDO Jahutusvedeliku temperatuuri andur 40-120°C 1/8″- 27 NPTF 6-24V (323-801-005-001D)
- Temperatuuride vahemik: +40°C kuni +120°C
- Keere: 1/8"- 27 NPTF
- Takistuste vahemik: 287.4 - 22.7 Ohm
- Anduri signaal: 1-klemmi maandusega
- Ilma hoiatuskontaktita
- Anduriosa pikkus koos keermega 22mm
VDO temperatuuriandurite kataloog (pdf)
VDO näidikute ja andurite kataloogi saab alla laadida SIIN
Continental - VDO Coolant temperature sender 120°C - 1/8″-27 NPTF
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Coolant temperature |
| Measurement range | +40°C to +120°C |
| Signal analogue | 287.4 - 22.7 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 287.4 - 22.7 Ohm |
| Sensor signal | Common ground |
| Sensor connector | AMP Male T-Model 6.3 x 0.8 mm |
| Thread | 1/8"-27 NPTF Male |
| Communication | Analog |
| Warning contact | None |
| Connector type | AMP Male T-Model 6.3 x 0.8 mm |
VDO A2C5218491780 Full technical specifications:
Mechanical features:
| Temperature measuring range: | +40 °C to +120 °C |
| Minimum - Maximum operating temperature: | -40 °C to +150 °C |
| Thread: | 1/8"- 27 NPTF |
| Sender element length + thread (L): | 22 mm |
| Sensor diameter: | 8.5 mm |
| Torque: | 10 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 287.4 - 22.7 Ohm |
| Temperature sensor signal: | Single-Pole common ground |
| Warning contact: | No |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Temperature sender connector: | AMP Male T-model 6.3 x 0.8 mm |
Datasheets and Tables:
| Type of connection: | C |
| VDO 2014 Vehicle Electronics Catalog: | Page 136 - 137 |
| VDO Temperature senders tables | VDO table: 1 |
| Temperature 100 °C > Resistance: | 100 °C = 38.47 Ohm ± 2.98 Ohm |
Retail package:
- VDO A2C5218491780 Temperature sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
