Jahutusvedeliku temperatuuriandur 40-120°C M14x1,5
VDO andur
Toodete fotod on illustratiivsed

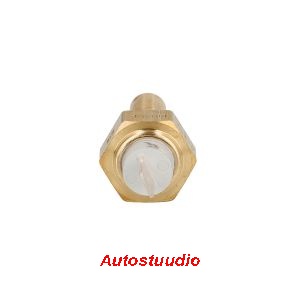

VDO Jahutusvedeliku temperatuuri andur 40-120°C M14x1,5 6-24V
- Keere M14 x 1,5
- Takistuse vahemik: 287,4-22,7 Ohm
- Ilma hoiatuskontaktita
- Anduriosa pikkus koos keermega 29 mm
A2C5218485780 - SCANIA (120°C)
VDO temp.andurite kataloog (pdf)
VDO Coolant temperature sender 120°C - M14x1.5
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Coolant temperature |
| Measurement range | +40°C to +120°C |
| Signal analogue | 287.4 - 22.7 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 287.4 - 22.7 Ohm |
| Sensor signal | Common ground |
| Sensor connector | AMP Male 6.3 x 0.8 mm |
| Thread | M14 x 1.5 Male |
| Communication | Analog |
| Warning contact | None |
| Connector type | AMP Blade 6.3 x 0.8 mm |
VDO A2C5218485780 Full technical specifications:
Mechanical features:
| Temperature measuring range: | +40 °C to +120 °C |
| Minimum - Maximum operating temperature: | -40 °C to +150 °C |
| Thread: | M14 x 1.5 |

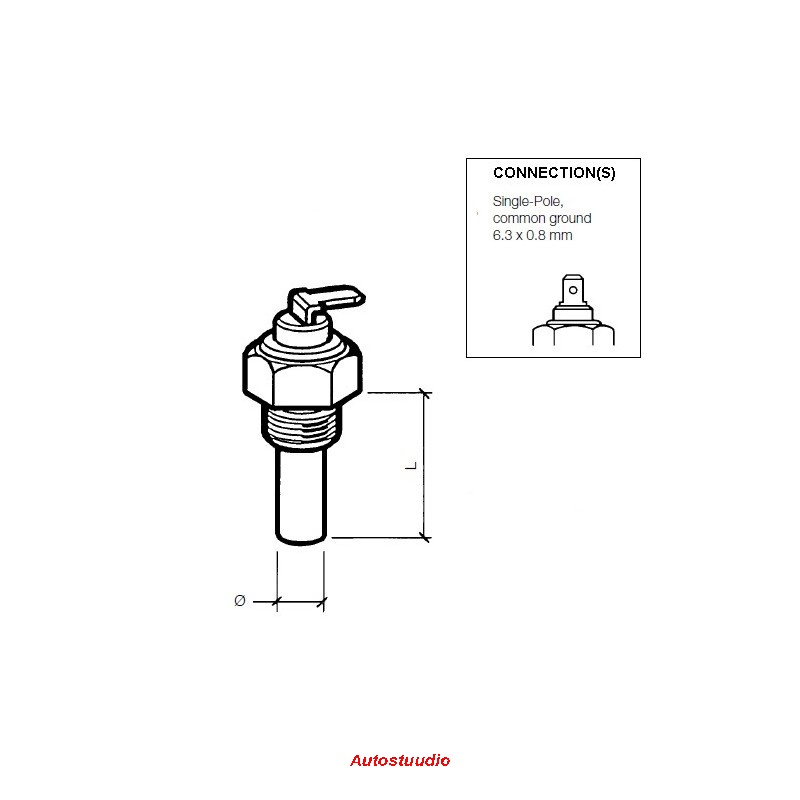

| Sender element length + thread (L): | 29 mm |
| Sensor diameter: | 9 mm |
| Torque: | 20 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 287.4 - 22.7 Ohm |
| Temperature sensor signal: | Single-Pole common ground |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Temperature sender connector: | AMP Male 6.3 x 0.8 mm |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 136 - 137 |
| Type of connection: | A |
| VDO Temperature senders tables: | 1 |
| Temperature 100 °C > Resistance: | 100 °C = 38.47 Ohm ± 2.98 Ohm |
Retail package:
- VDO A2C5218485780 Temperature sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
