Õhu temperatuuri andur 40-150°C M18x1,5
Õhu temperatuuriandur +40°C kuni +150°C M18x1.5
Toodete fotod on illustratiivsed

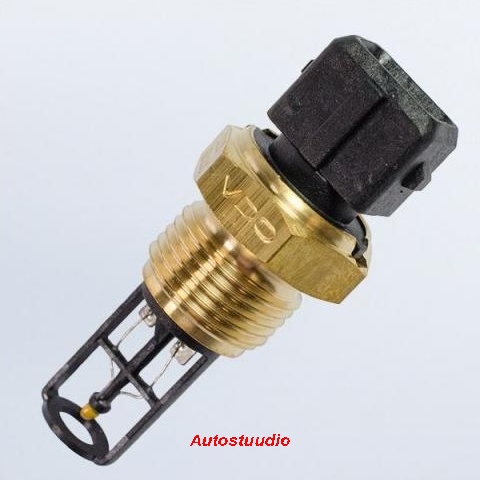

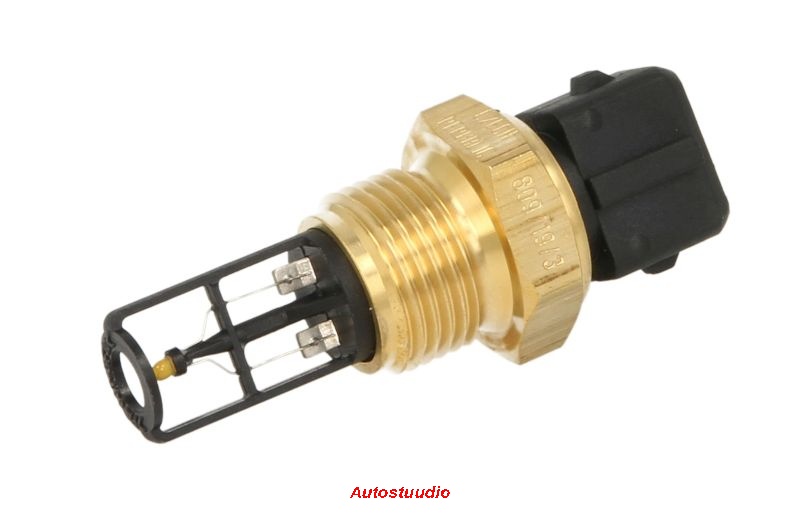

VDO Õhu temperatuuri andur +40°C kuni +150°C M18x1,5 6-24V*
*Tellimustoode
- Temperatuuride vahemik: +40 °C kuni +150 °C
- Keere: M18 x 1.5
- Anduri takistus: 100 °C = 68.75 Ohm
- Anduri signaal: 2-klemmi isoleeritud tagasivool (mass eraldatud kerest)
- Ilma hoiatuskontaktita
OEM / OE number:
- AGCO: H816970020020
- FENDT: H816970020020
VDO näidikute ja andurite kataloogi saab alla laadida SIIN
VDO Air temperature sender 150°C - M18x1.5
- Temperature range: +40 °C to +150 °C
- Thread: M18 x 1.5
- Sender resistance: 100 °C = 68.75 Ohm
- Sensor signal: 2-pole insulated return
- No warning contact
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Air temperature |
| Measurement range | +40°C to +150°C |
| Signal analogue | 100 °C = 68.75 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Sensor signal | Insulated Return |
| Thread | M18 x 1.5 Male |
| Communication | Analog |
| Warning contact | No |
| Connector type | Bosch Push-On Connector 2.8 x 0.8 mm |

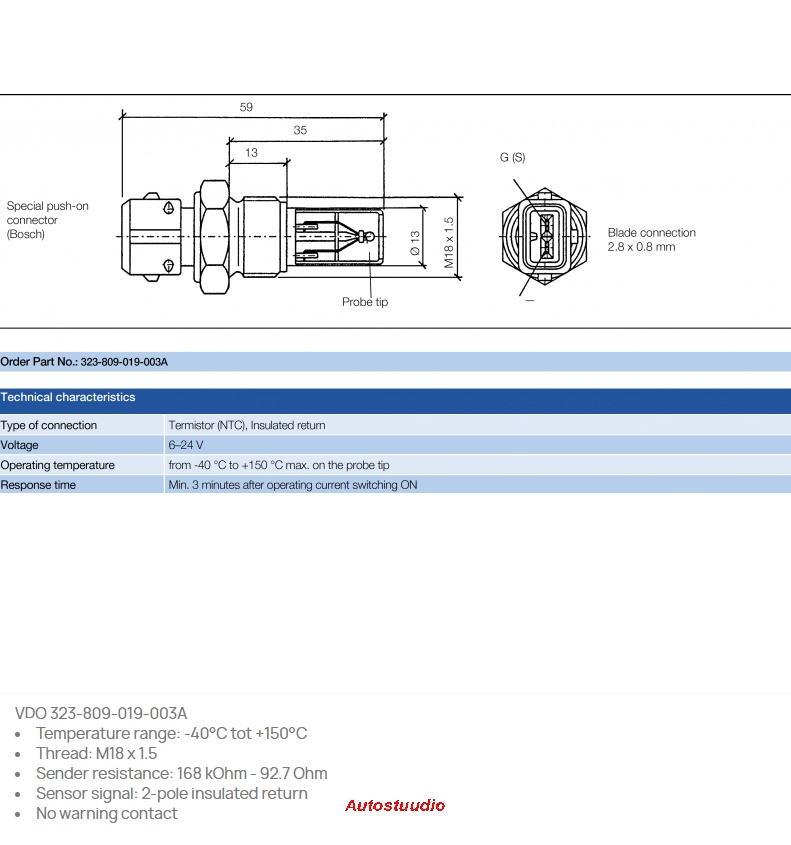

VDO 323-809-019-003A Full technical specifications:
Mechanical features:
| Temperature measuring range: | +40 °C to +150 °C |
| Minimum - Maximum operating temperature: | -40 °C to +150 °C |
| Thread: | M18 x 1.5 |

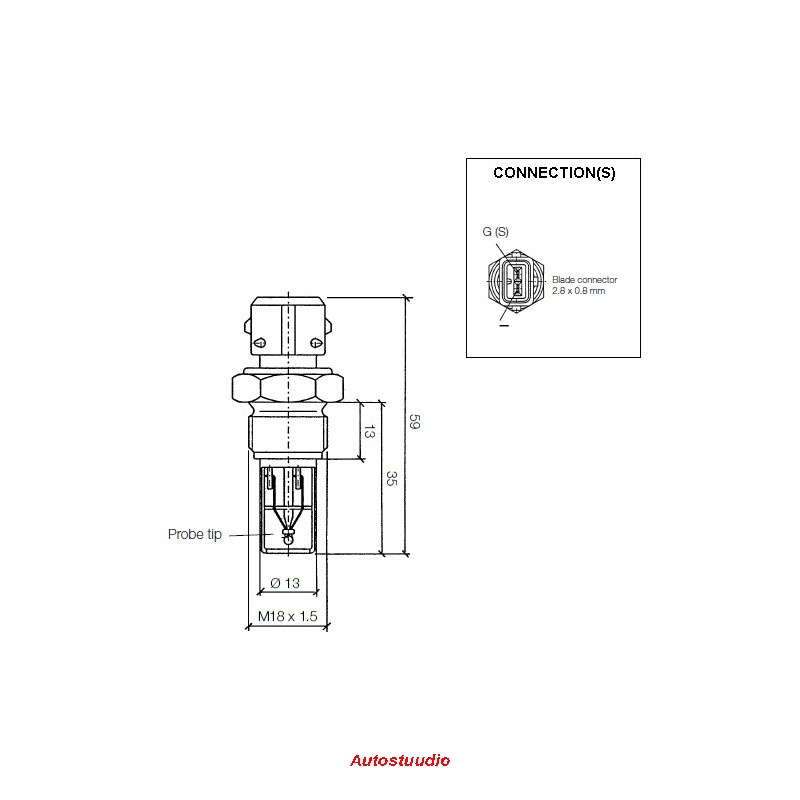

| Sender element length + thread (L): | 29 mm |
| Sensor diameter: | 8.5 mm |
| Torque: | 20 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor value: | 100 °C = 68.75 Ohm |
| Temperature sensor signal: | Dual-Pole insulated return |
| Warning contact: | No |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |

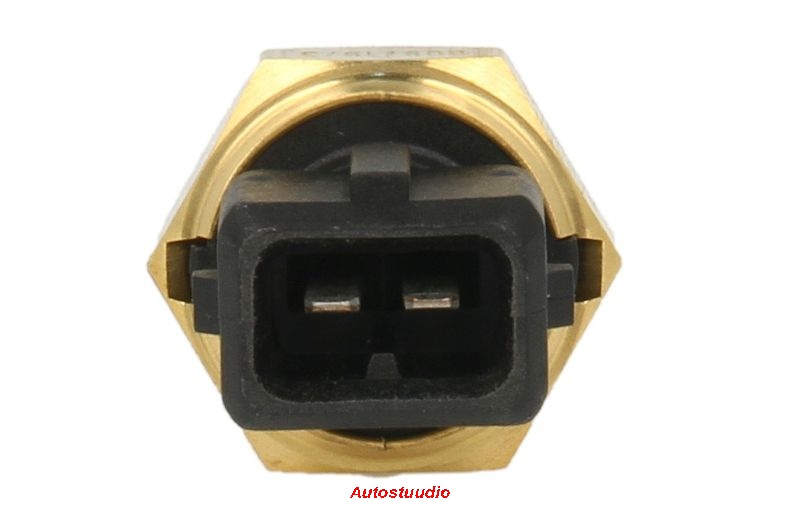

| Temperature sender connector: | Bosch push-on connector 2.8 x 0.8 mm |
Datasheets and Tables:
| VDO Vehicle Electronics Catalog 2014: | Page 138 - 139 |
| Type of connection: | H |
| VDO Temperature senders tables: | VDO table: 15 |
| Temperature 100 °C > Resistance: | 100 °C = 68.75 Ohm ± 4.13 Ohm |
Retail package:
- VDO 323-809-019-003A Temperature sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
