Kütuse tasemeandur, reguleeritav 140-400mm 3-180Ohm hoiatuskontaktiga
Kütusetaseme vibuandur, reguleeritav 145-400mm 3-180ohm 6-24V hoiatuskontaktiga
Toodete fotod on illustratiivsed

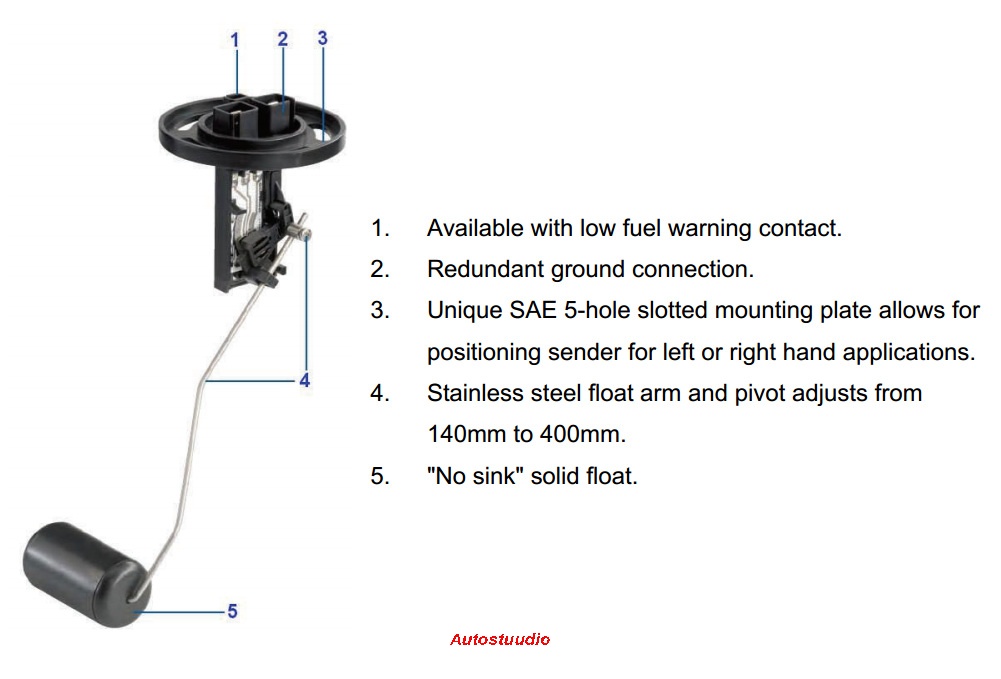

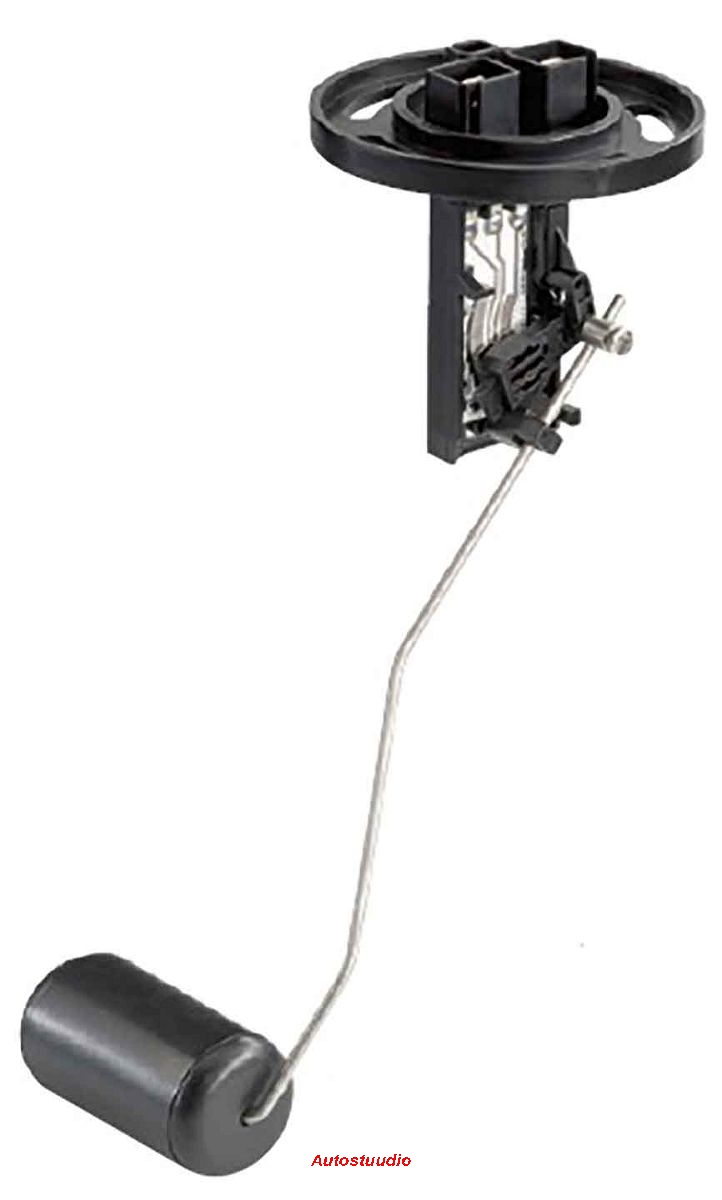

VDO Kütusetaseme vibuandur, reguleeritav 145-400mm 3-180ohm 6-24V hoiatuskontaktiga
Tasemeandur reguleeritav, paagi sügavus 145-400 mm
- 6-24 V
- Paigaldusava ∅ 60 mm
- 5-auguline SAE äärik 54 mm
- 3 Ohm tühi paak
- 180 Ohm täis paak
- Bensiin/diisel
- Sobib VDO International, Viewline, Vision näidikutele
- Ühele näidikule.
VDO ALAS1 WC Fuel lever arm sender 3-180 Ohm
Data sheet
| Installation Dimension | 54 mm SAE 5-Hole Flange |
| Measurement Range | 3 - 180 Ohm |
| Category | Fuel Level Sensors |
| Application | VDO Level measurement |
| Signal Analogue | Empty - Full Is 3 - 180 Ohm |
| Operating Voltage | 6 - 24 Volt DC |
| Functionality | Fuel Level |
| Communication | Analog |
| Sensor Signal | Insulated Return |

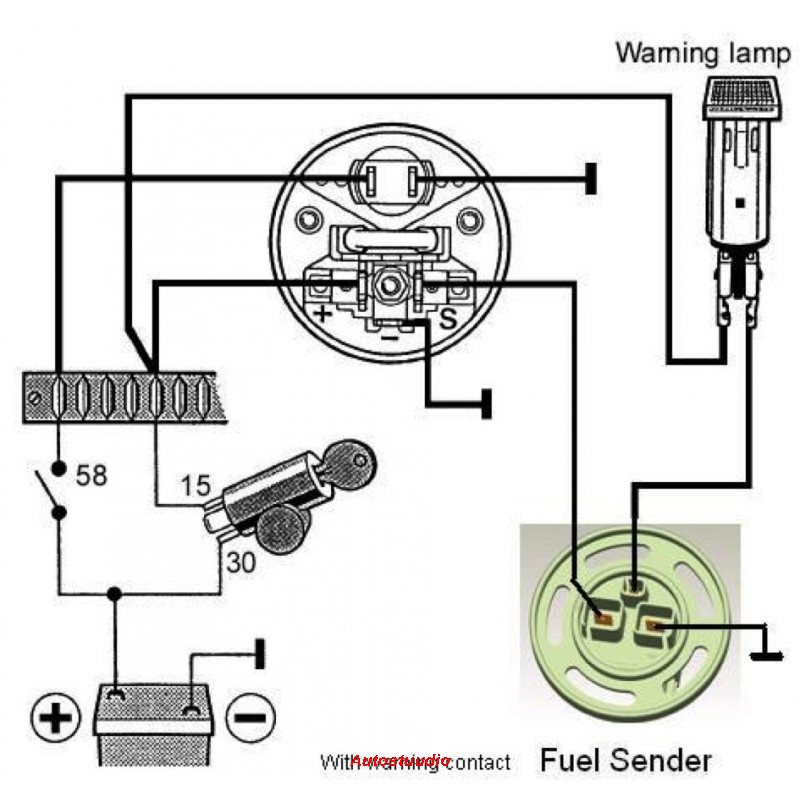

| Warning Contact | Residual volume 15% |

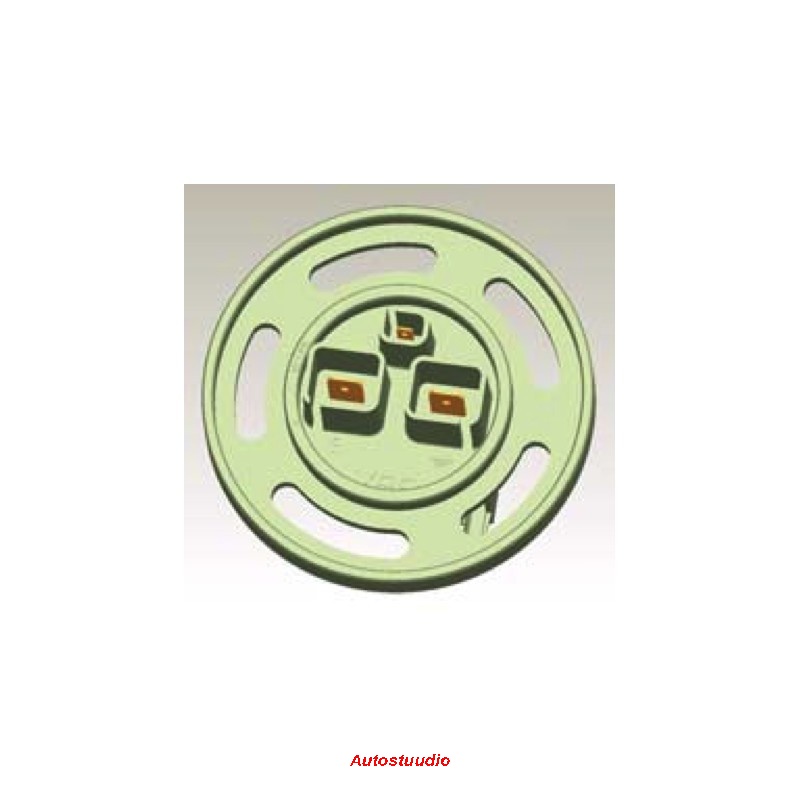

| Connector Type | AMP Blade 6.3 X 0.8 mm |
| Warning Contact Connector | AMP Male 2.8 X 0.8 mm |
| Tank Depth | 145 mm To 400 mm |
| Sensor Type | Fuel Lever Arm Sensor ALAS1 |
| Adjustable Sensor | Yes |
VDO A2C59510165 Full technical specifications:
Mechanical features:
| Tank depth: | 145 mm - 400 mm |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating temperature: | -40 °C to +70 °C |
| Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistance empty: | 2.5 Ohm |
| Resistance full: | 180 Ohm |
| Warning contact: | Yes |
Retail package:
- VDO A2C59510165 Lever arm fuel level sender
- Retail package 1 Tubular sensor
- VDO Sensors are - unless otherwise noted - delivered without connecting material
