Kiiruse - pöörete andur 80mm M22 x 1.5
VDO andur
Toodete fotod on illustratiivsed
VDO Kiiruse - pööreteandur 80mm (generaatori tüüpi) 3000p/min M22 x 1.5
- Keere: M22 x 1.5
- Anduri tüüp: generaator 3000 p/min (RPM)
- Väljund: 19.3 V / 2.000 p/min (RPM)
- Anduri signaal: 2-klemmi isoleeritud tagastus
- Ühendus: M4 keere 3x
VDO andurite kataloogi saate alla laadida SIIN
VDO Generator tacho - speed sender - M22 x 1.5
- Sender type: Generator 3.000 RPM
- Thread: M22 x 1.5
- Output: 19.3 V at 2.000 RPM
- Sensor signal: 2-pole insulated return
- Connector: M4 thread 3x
Data sheet
| Application | VDO Engine monitoring |
| Category | Generator Type Senders |
| Functionality | Generator Type Senders |
| Sensor Type | RPM Generator |
| Measurement range | 0 - 3.000 RPM |
| Sensor signal | Insulated Return |
| Thread | M22 x 1.5 Female |
| Connector Type | M4 Threaded End |
VDO 340-807-001-001C Full technical specifications:
Mechanical features:
| Thread: | M22 x 1.5 Female |
| Maximum number of revolutions: | 3.000 RPM |
| Operating temperature: | -25 °C to +90 °C |
| Sender length overall without thread: | 80 mm |
| Driving torque maximum: | 500 pcm |
| Protection: | IP54 DIN 40050 |
Electrical features:
| Operating voltage: | Independent |
| Signal output: | Insulated return |
| Connector: | 3-pole M4 Thread |
| No load voltage: | 19.3 V at 2.000 RPM |
| Voltage tolerance: | ± 1 % at nominal value at +20° C |
Datasheets and Tables:
| 2010 EU VDO Sensors Catalogue | Page 60 - 61 |

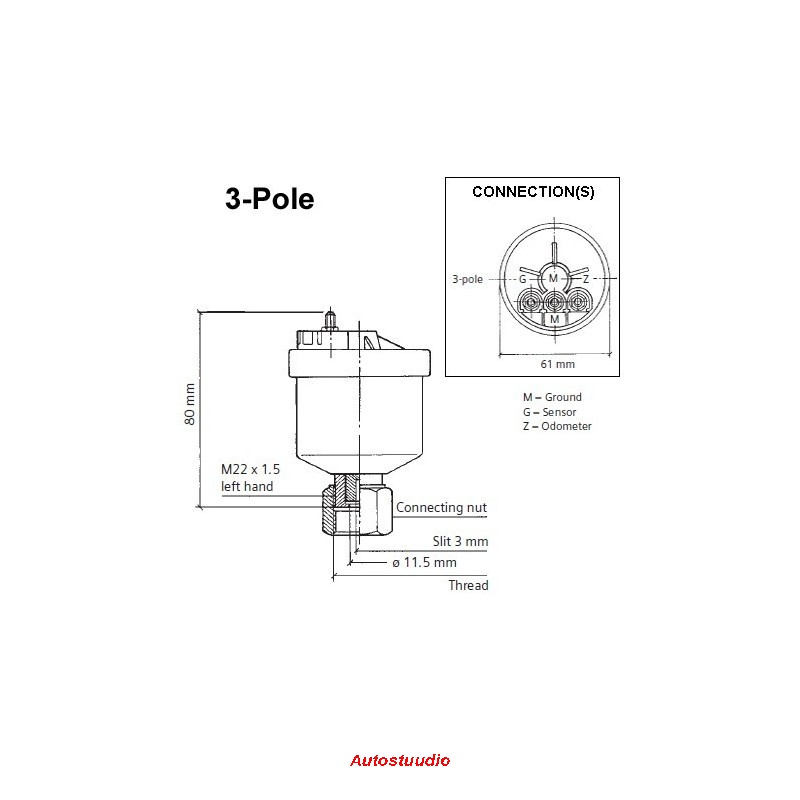

| Image: | 3-pole |
Retail package:
- VDO 340-807-001-001C Generator tacho - speedo sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
