Rõhuandur 0-25 BAR M14x1,5 hoiatuskontaktita 6-24V
Rõhuandur 0-25 BAR keere M14x1.5 hoiatuskontaktita 6-24V
Toodete fotod on illustratiivsed
_90x90.jpg)
.jpg){kind=link}
_90x90.jpg)
.jpg){kind=link}
_90x90.jpg)
.jpg){kind=link}

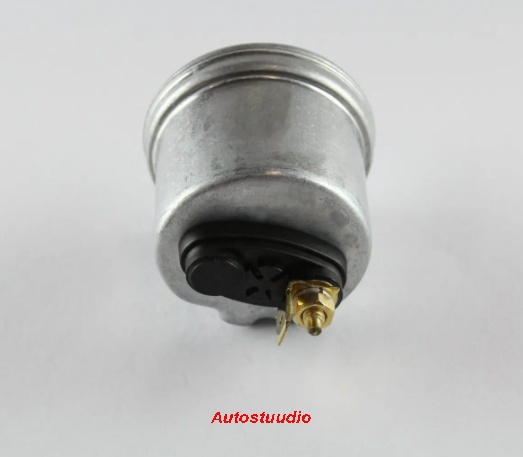

VDO Rõhuandur 0-25 BAR keere M14x1.5 hoiatuskontaktita 6-24V
Mõeldud käigukasti õlirõhu mõõtmiseks. Maksimaalne kasutustemperatuur 100°C. Eriti kuuma kohta (näit. väljalaskekollektori) lähedusse paigaldamisel tuleks kasutada termoisolatsiooni.
- 10-184 Ohm
- 6-24V
- Maandus läbi korpuse
- Ilma hoiatuskontaktita (märgutuleta)
VDO näidikute ja andurite kataloogi saab alla laadida SIIN
Data sheet 360-081-037-013C
- Measurement Range: 0 - 25 Bar
- Category: Pressure Senders
- Application: VDO Engine Monitoring
- Signal Analogue: 10 - 184 Ohm
- Operating Voltage: 6 - 24 Volt DC
- Functionality: Gear Oil Pressure
- Communication: Analog
- Signal Output:: 10 - 184 Ohm
- Sensor Signal: Common Ground
- Sensor Connector: M4 AMP Male 6.3 x 0.8 Mm
- Thread: M14 x 1.5 Male
- Warning Contact: No
- Connector Type: M4 Flat Plug 6.3 x 0.8 Mm
VDO 360-081-037-013C technical specifications:
Mechanical features:
| Pressure measuring range: | 0 - 25 Bar 0 - 362 PSI 0 - 2500 KPa |
| Maximum pressure: | 50 Bar during 2 seconds |
| Thread: | M14 x 1.5 |
| Length thread + nut (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 60 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohm |
| Pressure sensor signal: | Dual-Pole insulated return |
| Warning contact: | No |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Pressure sender connector: | M4 AMP Male 6.3 x 0.8 mm 90° |
Datasheets and Tables:
| Type of connection: | C |
| VDO Special VehicleProducts Catalogue 2019 | Page 44-45 |
Retail package:
- VDO 360-081-037-013C Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
