Kütuse tasemeandur, reguleeritav 150-600mm 1.5-90Ohm - dual
Kütuse tasemeandur, reguleeritav 150-600mm 1.5-90ohm 6-24V - dual
Toodete fotod on illustratiivsed

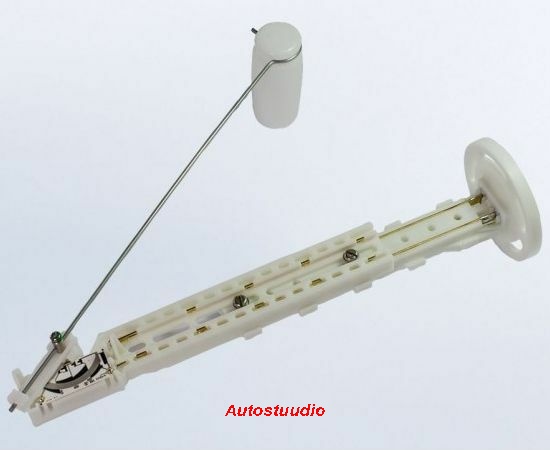

VDO Kütuse tasemeandur, reguleeritav 150-600mm 1.5-90ohm 6-24V - dual
Tasemeandur reguleeritav, paagi sügavus 150-600 mm
- 6-24 V
- Paigaldusava läbimõõt 60 mm
- 5-auguline SAE äärik 54 mm
- 1,5 Ohm tühi paak
- 90 Ohm täis paak
- Bensiin/diisel
- Kahele näidikule.
VDO Fuel lever arm sender 1.5-90 Ohm 150-600mm - Dual
Data sheet
| Installation Dimension | 54 mm SAE 5-Hole Flange |
| Measurement Range | 1.5 - 90 Ohm |
| Category | Fuel Level Sensors |
| Application | VDO Level measurement |
| Signal Analogue | Empty - Full Is 1.5 - 90 Ohm |
| Operating Voltage | 6 - 24 Volt DC |
| Functionality | Fuel Level |
| Communication | Analog |
| Sensor Signal | Insulated Return |
| Warning Contact | None |
| Connector Type | AMP Blade 6.3 X 0.8 mm |
| Tank Depth | 150 mm To 600 mm |
| Sensor Type | Fuel Lever Arm Senders Standard |
| Adjustable Sensor | Yes |
VDO N02-240-106 Full technical specifications:
Mechanical features:
| Tank depth: | 150 mm - 600 mm |
| Mounting flange: | 5-Hole SAE 54 mm |
| Operating temperature: | -25 °C to +65 °C |
| Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistance empty: | 1.5 Ohm ± 1.0 Ohm |
| Resistance full: | 90 Ohm |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
Retail package:
- VDO N02-240-106 Lever arm fuel level sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
