Õlirõhu näidik piduriõlile 52mm 0-10bar 12V
Õhurõhu näidik ø 52mm 0-10Bar 12V
Toodete fotod on illustratiivsed

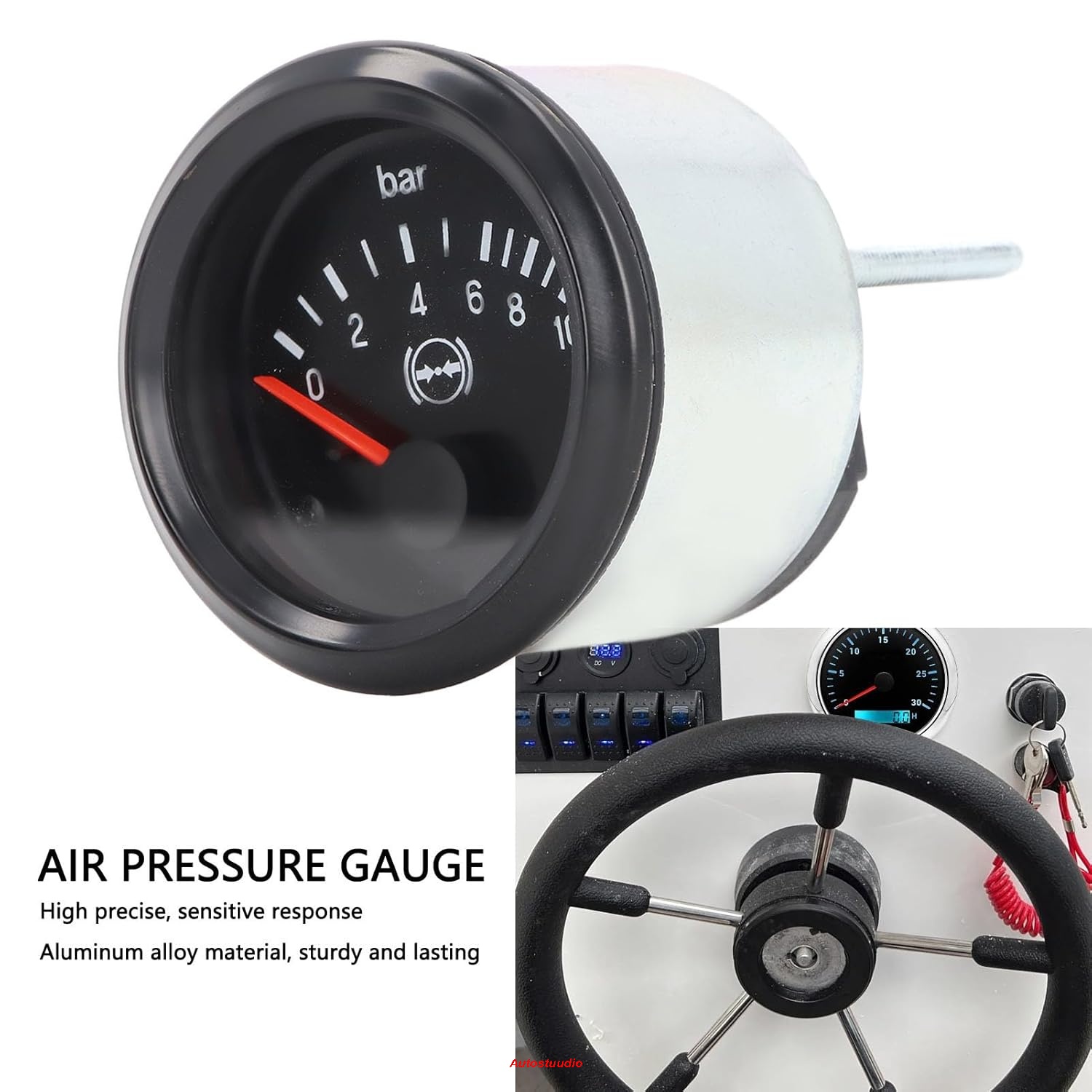

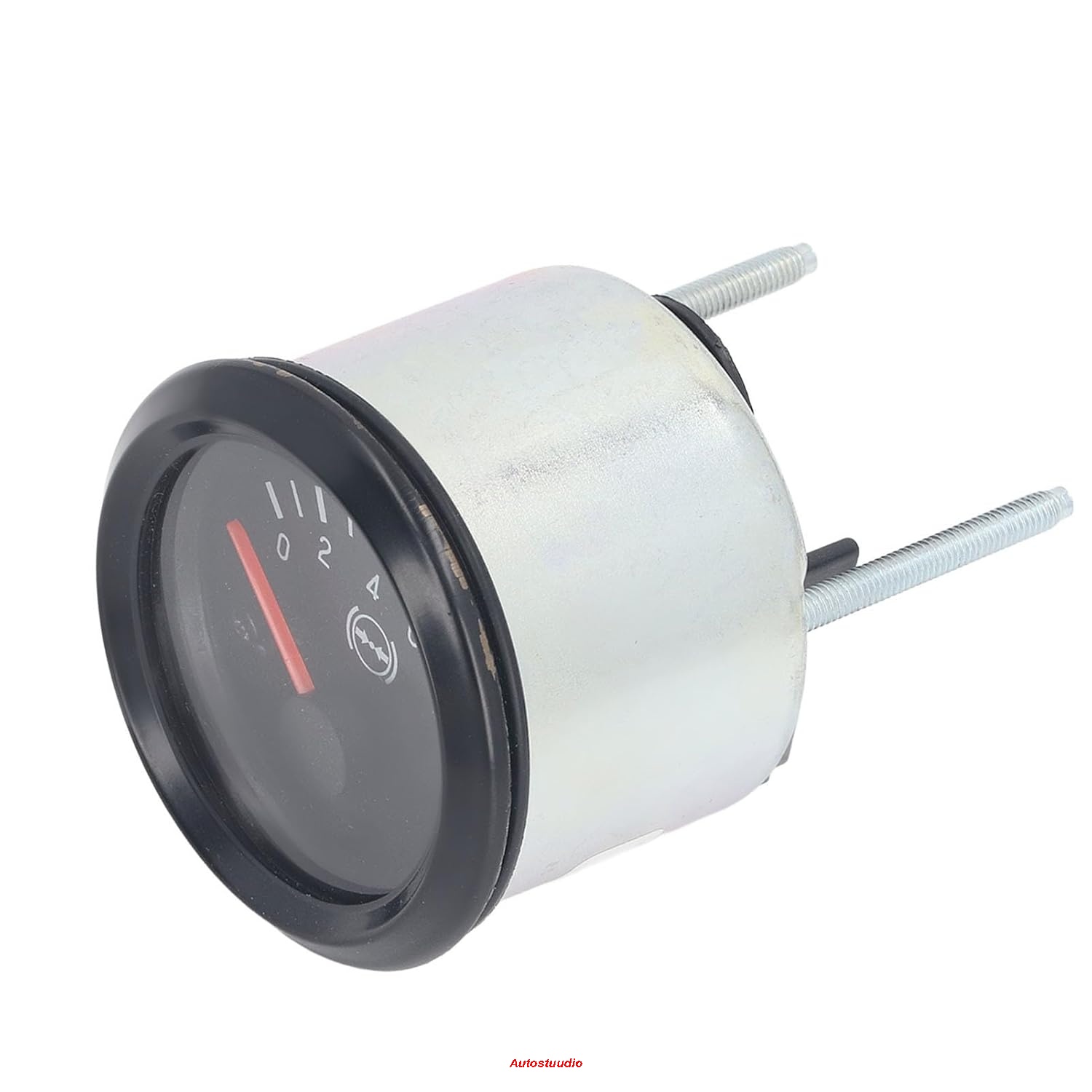

VDO "Cockpit International" Piduriõli rõhunäidik ø 52mm 0-10Bar 12V*
*Tellimustoode. Täpsustage saadavust ja tarneaega.
- ø 52 mm - 2 1/16"
- VDO COCKPIT INTERNATIONAL
- Tarbesõidukitele ja töömasinatele
- Mittepeegelduv mineraalklaas
- Korpus metallist või plastikust

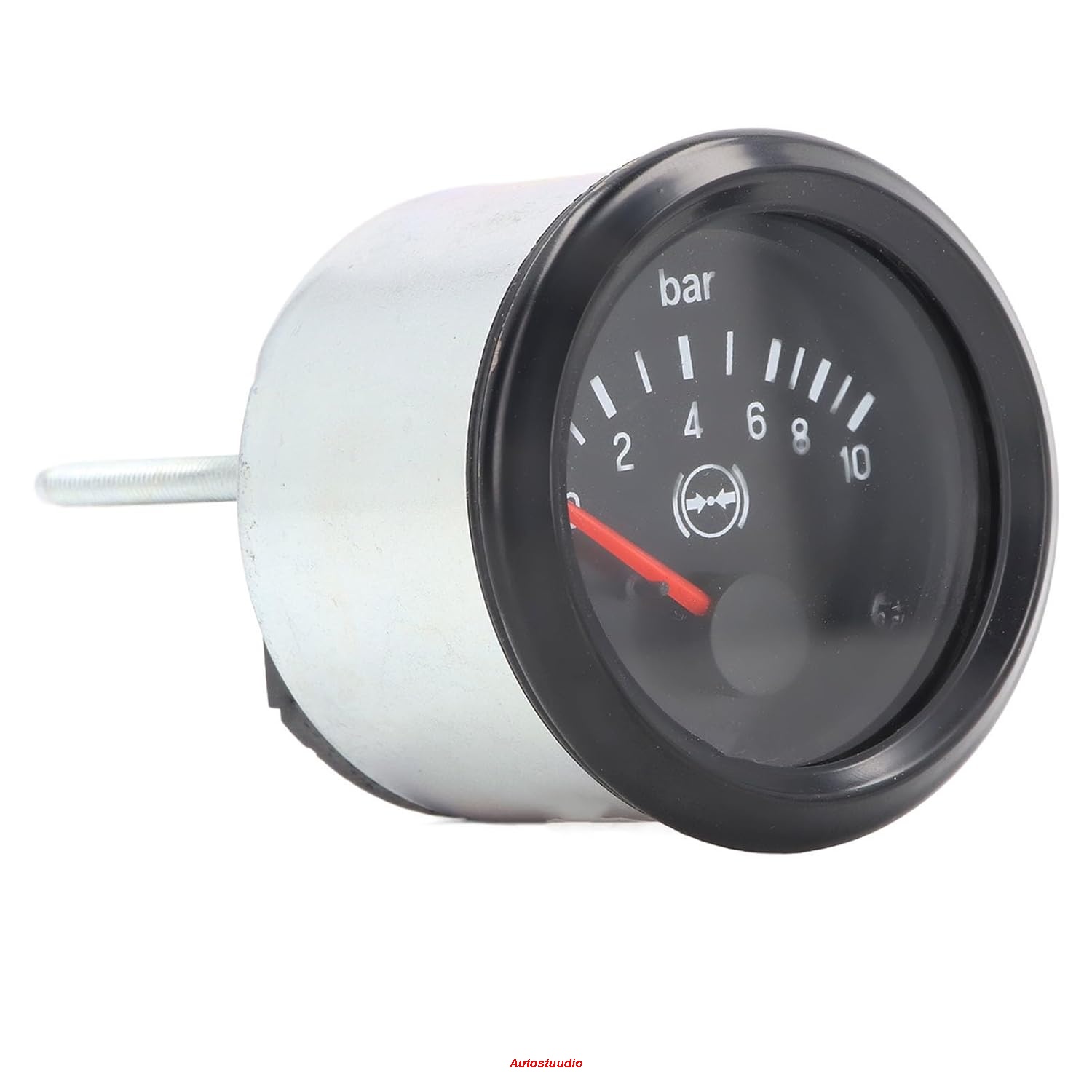

- Must näidik valgete skaalanäitude ja ISO-märgistustega, punane seier
- IP 64 näidiku esipoolel

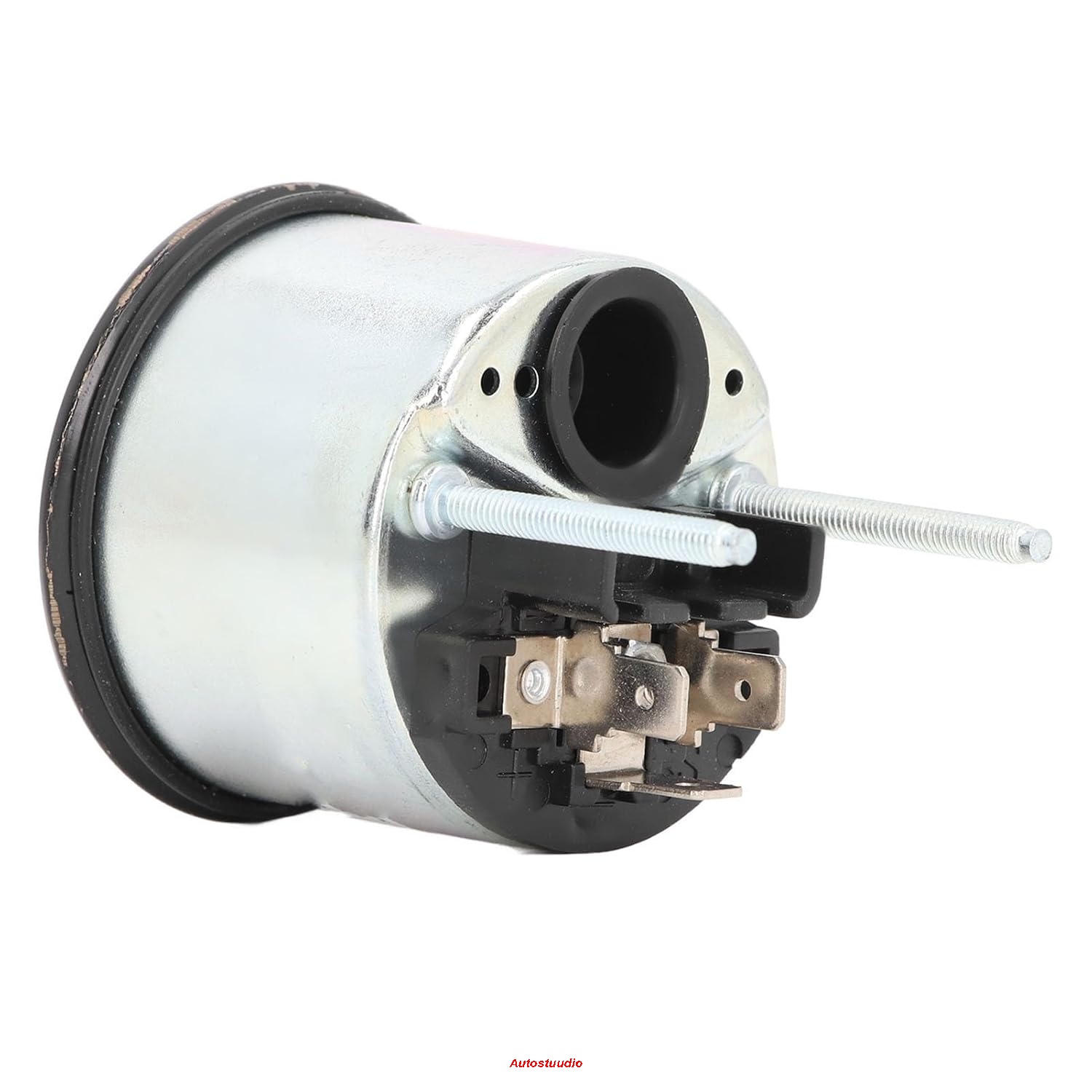

- Ühendused 6,3 x 0,8 mm plaatliidised.
- Pakendisse kuuluvad valgustuse lambid koos pesadega ja paigaldustarvikud.
VDO Cockpit International Brake pressure 10Bar 52mm 12V
Data sheet
| Serie | VDO Cockpit International |
| Color | Black |
| Installation diameter | 52 mm - 2 1/16 Inch |
| Application | VDO Engine monitoring |
| Category | Pressure gauges |
| Functionality | Brake Pressure |
| Measurement range | 0 - 10 Bar |
| Signal analogue | 10 - 184 Ohm |
| Operating voltage | 11 - 16 Volt DC |
| IP front protection class | IP64 (DIN 40050) |
| Lens | Single-glazed - Nonreflective |
| Bezel model | Black triangle |
| Bezel Interchangeable | Yes - Special tool required |
| Warning light | Without |
| Communication | Analog |
VDO Cockpit International 350-030-011G specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Locking height with Spinlock nut: | Not available |
| Locking height with bracket: | 0.5 mm - 8 mm |
| Flushmount: | No |
Functionality:
| Engine oil pressure range: | 0 to 10 Bar |
| Sensor signal engine oil pressure gauge: | VDO Pressure sender 10 to 184 Ohm |
| Accuracy: | Not specified by VDO |
| Connection: | AMP Male blade connector 6,3 x 0,8mm (3x) |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage: | 11 - 16 Volt DC |
| Current consumption without illumination: | 82 mA |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: | Red backlight |
| Warning indication: | No |
| Programming: | No |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -30°C to +85°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |

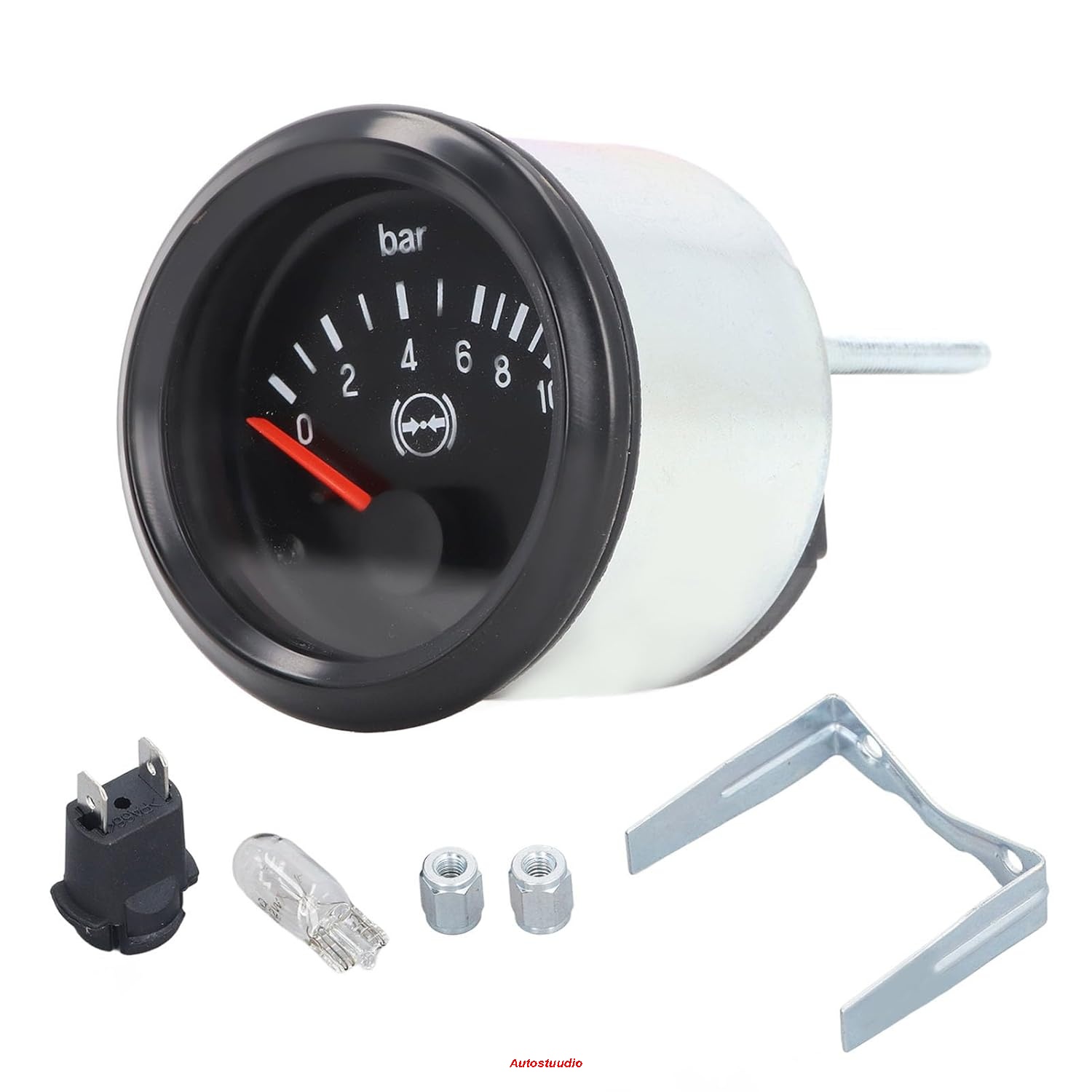

Retail package:
- VDO Cockpit International 350-030-011G Pressure gauge
- Steel bracket zinc-plated and chromatized
- Connecting material order separately
