Töötundide lugeja 52mm 8-32V minuti seieriga, valgustusega
Töötundide lugeja
Toodete fotod on illustratiivsed

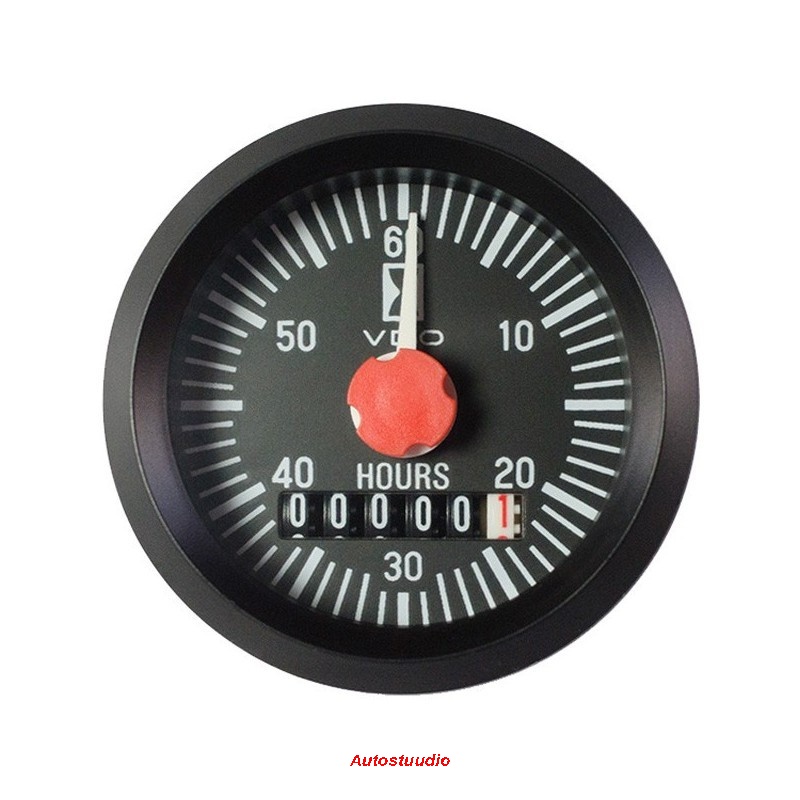

VDO "Cocpit International" Töötundide lugeja ø 52mm 8-32V minuti seieriga, must - valgustusega*
*Tellimustoode. Täpsustage saadavust ja tarneaega
- ø 52mm
- Valgustusega, plastikust korpus, paigaldussügavus 53 mm
- VDO COCKPIT INTERNATIONAL
- Tarbesõidukitele ja töömasinatele
- Mittepeegelduv mineraalklaas
- Korpus metallist või plastikust
- Must näidik valgete skaalanäitude ja ISO-märgistustega, punane seier
- IP 64 näidiku esipoolel
- Ühendused 6,3x0,8mm plaatliidised.
VDO Cockpit International Engine hours counter 52 mm 12V
Data sheet A2C1936250003
| Installation Dimension: | 52 Mm - 2 1/16 Inch |
| Color: | Black |
| Lens: | Plastic single nonreflective |
| Measurement Range: | 0 - 99999.9 H |
| Category: | Engine Hour Counters |
| Serie: | VDO Cockpit International |
| Application: | VDO Engine Monitoring |
| Signal Analogue: | Plus contactslot Ontsteking |
| IP Front Protection Class: | IP64 (DIN 40050) |
| Operating Voltage: | 8 - 32 Volt DC |
| Functionality: | Maintenance Intervals |
| Bezel Interchangeable: | Yes - Special Tool Required |
| Warning Light: | Without |
| Communication: | Analog |
| Dial Scale: | Single |
VDO Cockpit International A2C1936250003 specifications:

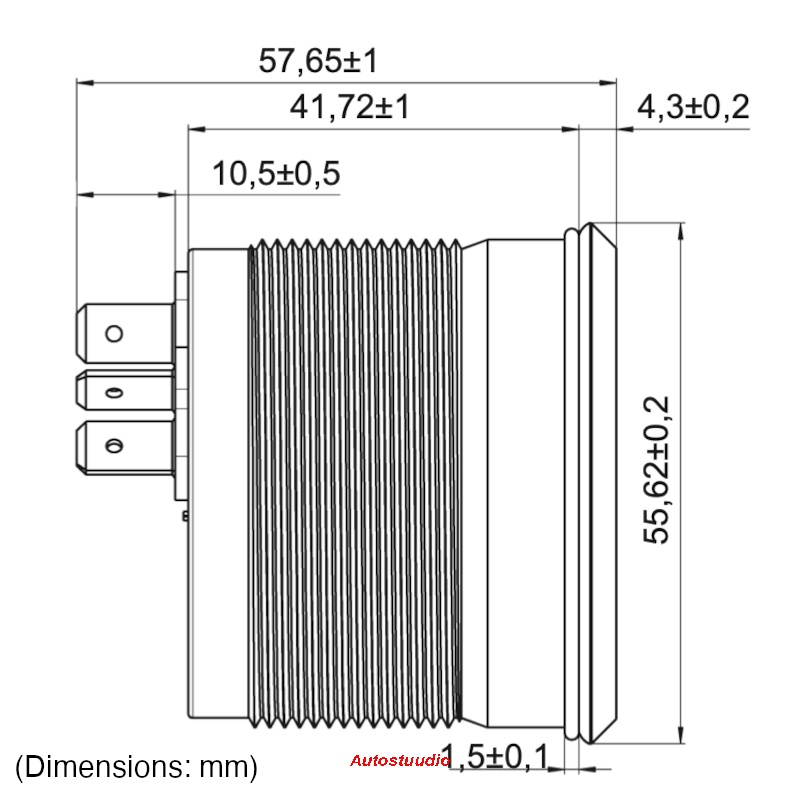

Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: | 53 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | Not available |
| Flushmount: | No |
Functionality:
| EHC Measurement range: | 0 - 99999.9 Hours |
| Signal input engine hours counter (EHC): | Alternator (terminal D+) |
| Accuracy: | ± 5s per day at room temperature –40 °C to +85 °C: max. –10 s per day |
| Connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
| Illumination connection: | LED (White) |
Power supply:
| Operating voltage: | 8- 32 Volt DC |
| Current consumption: | at 13.5 V: < 10 mA at room temperature at 26.0 V: < 23 mA at room temperature |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Dial: | 6 Digits |
| Dial colour: | Black |
| Dial Illumination: | LED White |
| Digits: | White |
| Warning indication: | No |
| Programming: | No |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Metal Triangular black |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -40°C to +90°C |
| Norm compliance: | ECE R10 rev.5 EMC (2014/30/EU) ROHS (2015/863/EU) ELV (2000/53/EG) |
| DNV GL Certification: | Not specified by VDO |
| Vibration resistance: | acc. IEC 60068 Part 2 - 6, 2 g 25 Hz to 500 Hz, 24 h x, y, z |
| Physical shock: | acc. IEC 60068 Part 2 - 27, 100 g, 6 ms, two times x, y, z |
| Nominal position: | any orientation NL 0° to 180° - DIN 16257 |
| Housing: | Plastic flame retardant |
Retail package:
- VDO Cockpit International A2C1936250003 Engine hours counter
- Spinlock nut
- Connecting material order separately
