Jahutusvedeliku temperatuuri näidik 40-120°C 52mm, anduriga 6,0m
Jahutusvedeliku temperatuuri näidik 40-120°C mehaaniline, 6000mm anduriga
Toodete fotod on illustratiivsed
1_90x90.jpg)

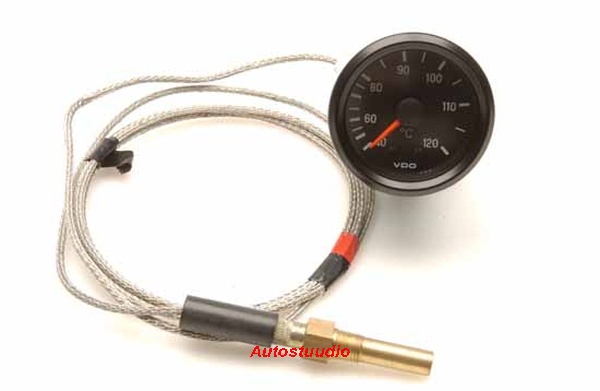

VDO "Cockpit International" Jahutusvedeliku temperatuuri näidik 40-120°C mehaaniline, 6000mm anduriga
- ø 52mm
- Keere: M10 x 1.0
- Metallkorpus
- Paigaldussügavus 67.5 mm
- Kapillaari pikkus 6000 mm
Valgustuse pirn ja pirnipesa tuleb tellida eraldi:
Pirnipesa: 999-067-001
Pirn 12V: 12960
Pirn 24V: 13960
Pistik: 999-115-150
VDO COCKPIT INTERNATIONAL
- Tarbesõidukitele ja töömasinatele
- Mittepeegelduv mineraalklaas
- Korpus metallist või plastikust

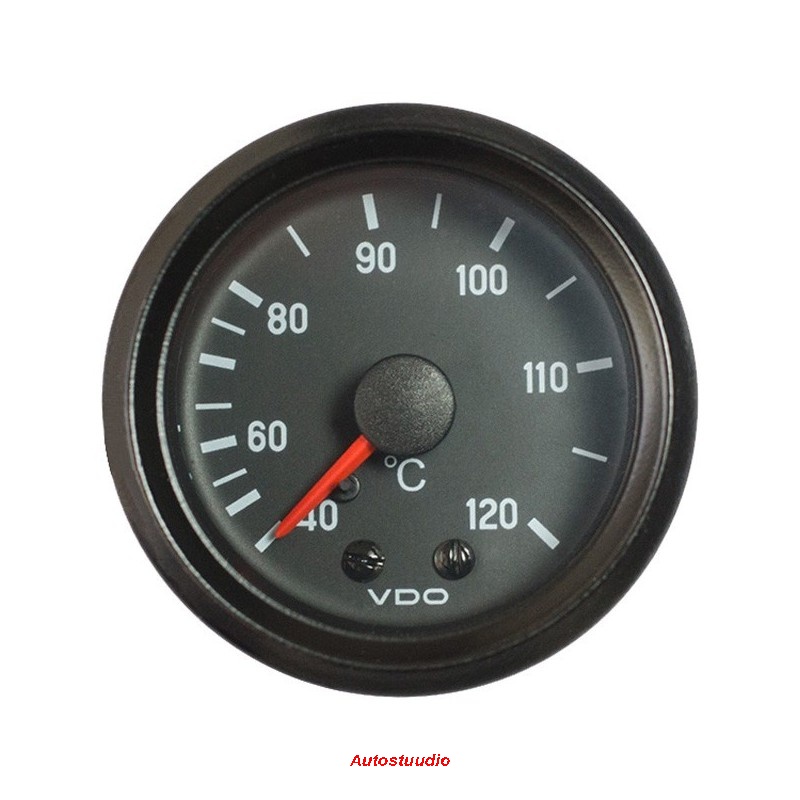

- Must näidik valgete skaalanäitude ja ISO-märgistustega, punane seier
- IP 64 näidiku esipoolel
VDO Cockpit International Coolant temperature mechanical 40-120°C 52mm, 6000mm Capillary
Data sheet
| Serie | VDO Cockpit International Series |
| Color | Black |
| Installation diameter | 52 mm - 2 1/16 Inch |
| Application | VDO Engine monitoring |
| Category | Temperature gauges |
| Functionality | Coolant temperature |
| Measurement range | +40°C to +120°C |
| Signal analogue | Mechanical |
| IP front protection class | IP64 (DIN 40050) |
| Lens | Single-glazed - Nonreflective |
| Bezel model | Black triangle |
| Bezel Interchangeable | Yes - Special tool required |
| Warning light | Without |
| Communication | Analog |
VDO Cockpit International 180-035-006G specifications:

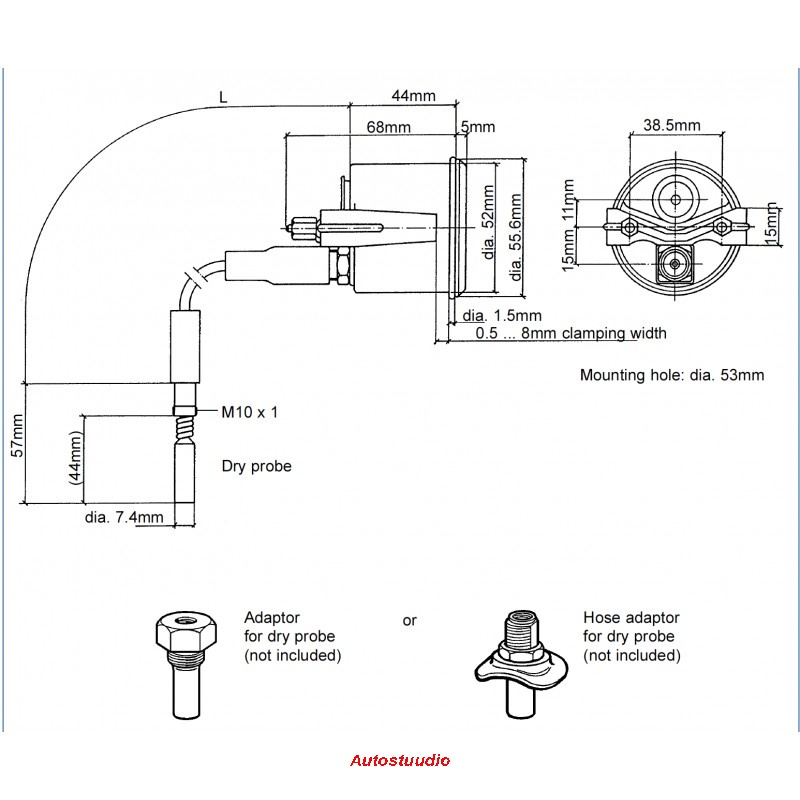

Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Locking height with Spinlock nut: | Not available |
| Locking height with bracket: | 0.5 mm - 8 mm |
| Flushmount: | No |
Functionality:
| Coolant temperature range: | +40°C to +120°C |
| Sensor signal coolant temperature gauge: | Mechanical - Dry sensor M10 x 1 Length 6000 mm |
| Connection: | M10 x 1 Length 6000 mm |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage (Illumination only): | 12 Volt standard - 24 Volt optional |
| Current consumption (Illumination only): | 12 Volt 2 Watt - 24 Volt 2 Watt |
| Reverse polarity protection: | Not applicable |
| Short circuit protection: | Not applicable |
Dial & Pointer:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: | Red backlight |
| Warning indication: | No |
| Programming: | No |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -30°C to +85°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Retail package:
- VDO Cockpit International 180-035-006G Temperature gauge
- Connecting material order separately
