Voltmeeter 18-32V 52mm (24V süsteem), must
Voltmeeter 18-32V 52mm (24V süsteem), must
Toodete fotod on illustratiivsed Alghind: 65,05 €
Müügihind54,40 €
Allahindus -10,65 €
Käibemaks: 10,53 €
Tootekood: 332-040-001G
VDO "Cockpit International" Voltmeeter 18-32V ø 52mm (24V süsteem), must* (A2C6252964366)
- ø 52mm
- VDO COCKPIT INTERNATIONAL
- Tarbesõidukitele ja töömasinatele
- Mittepeegelduv mineraalklaas
- Korpus metallist või plastikust
- Must näidik valgete skaalanäitude ja ISO-märgistustega, punane seier
- IP 64 näidiku esipoolel

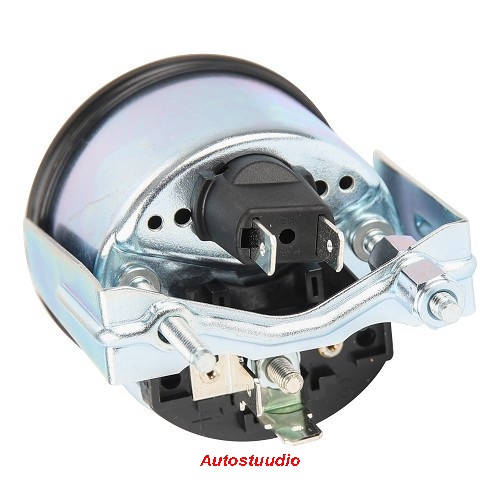

- Ühendused 6,3 x 0,8 mm plaatliidised.
- Pakendisse kuuluvad valgustuse lambid koos pesadega ja paigaldustarvikud
VDO Cockpit International Voltmeter 18-32V 52mm 24V
Data sheet
- Installation Dimension: 52 Mm - 2 1/16 Inch
- Color: Black
- Lens: Single-Glazed - Nonreflective
- Bezel Model: Black Triangle
- Measurement Range: 18 - 32V DC
- Category: Voltmeters
- Serie: VDO Cockpit International
- Application: VDO Engine Monitoring
- Signal Analogue: 0 - 32V DC
- IP Front Protection Class: IP64 (DIN 40050)
- Operating Voltage: 21.5 - 30 Volt DC
- Functionality: 24 Volt Battery Condition
- Bezel Interchangeable: Yes - Special Tool Required
- Warning Light: Without
- Communication: Analog
VDO Cockpit International 332-040-001G specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch en 59.25 mm - 2 1/3 Inch |
| Installation depth: | 67.5 mm |
| Locking height with Spinlock nut: | Not available |
| Locking height with bracket: | 0.5 mm - 8 mm |
| Flushmount: | No |
Functionality:
| Voltmeter range: | 18 to 32V DC |
| Sensor signal voltmeter: | 0-32V DC Battery power |
| Accuracy: | Not specified by VDO |

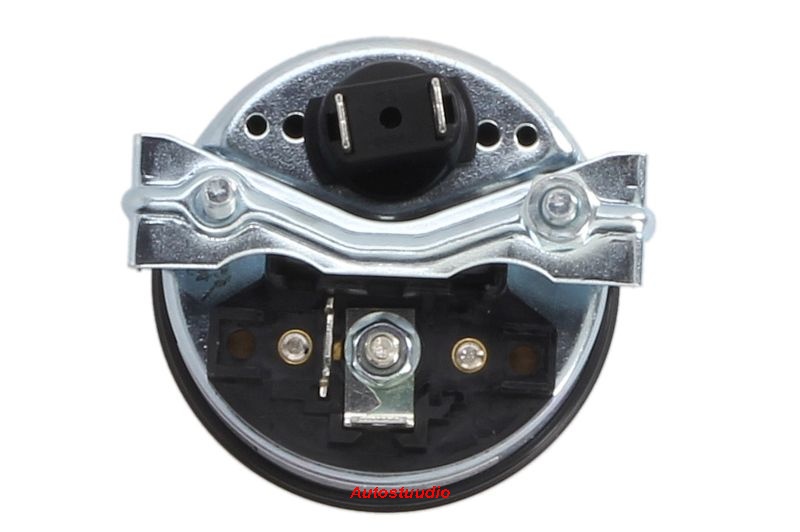

| Connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (2x) |
Power supply:
| Operating voltage: | 21.5 - 30 Volt DC |
| Current consumption without illumination: | 63 mA |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: | Red backlight |
| Warning indication: | No |
| Programming: | No |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -30°C to +85°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Retail package:
- VDO Cockpit International 332-040-001G Voltmeter

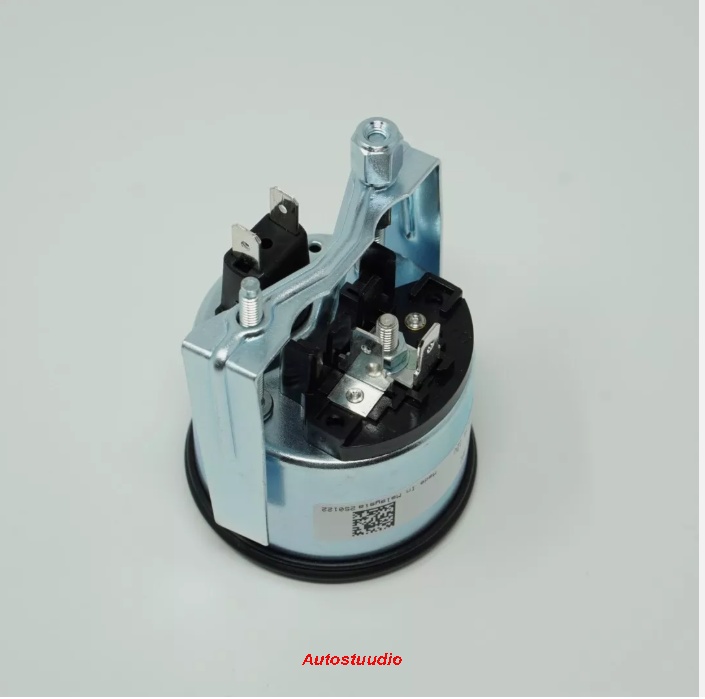

- Steel bracket zinc-plated and chromatized
- Connecting material order separately
