Rõhulüliti 4.5Bar /65.25PSI M10x1K
Rõhulüliti 4.50±0.30Bar /65,25 PSI M10x1K 6-24V
Toodete fotod on illustratiivsed

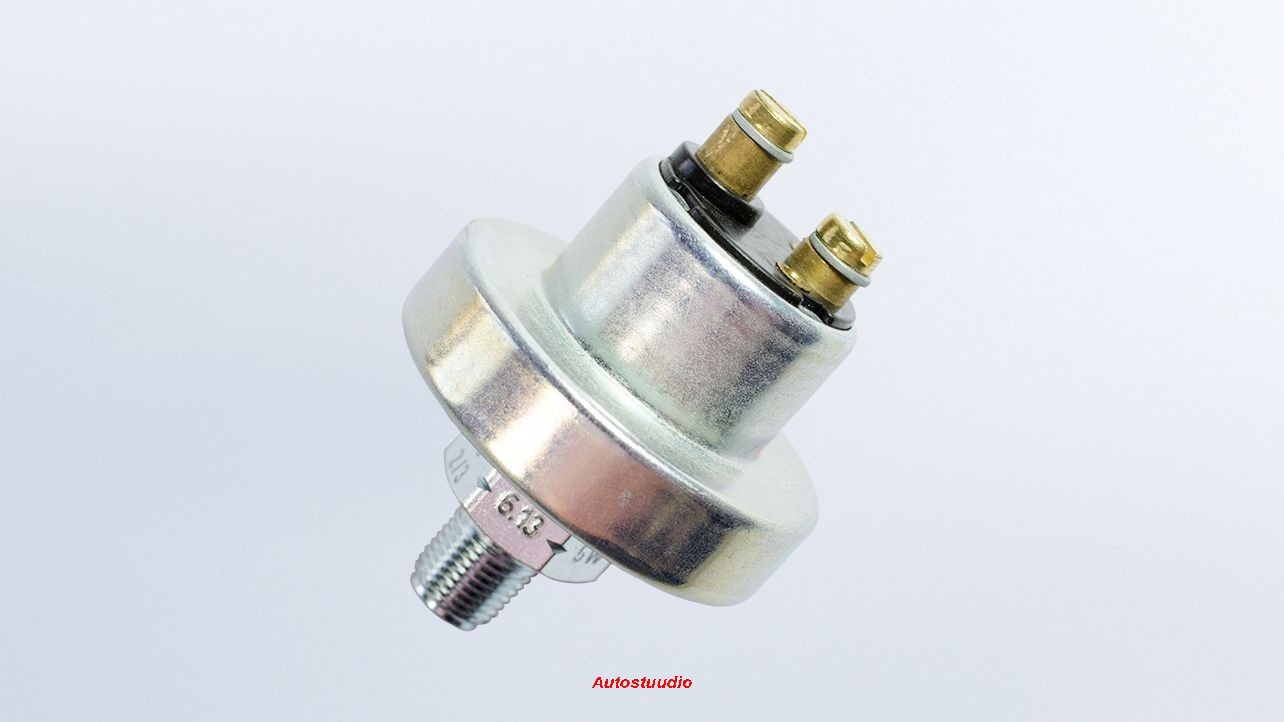

VDO Õlirõhu lüliti 4.50±0.30Bar /65,25 PSI M10x1K 6-24V
- Rõhu lülituspunkt: 4.50 Bar ± 0.30 Bar
- Maandus: 2-klemmiga
- Keere: M10 x 1 lühike
- Klemm: M4 x 5 (2x)
- Pinge vahemik: 6-24V
Kontakt sulgub, kui rõhk langeb.
VDO Pressure switch 4.50 Bar - M10x1K
Pressure Switch, 65.25 PSI/4.5 bar, Contact Closes as Pressure Falls, Earth Ground M10x1
Data sheet
| Application | VDO Engine monitoring |
| Category | Pressure Switches |
| Signal Analogue | Contact Closes With Falling Pressure |
| Operating voltage | 6 - 24 Volt DC |
| Sensor signal | Common ground |
| Thread | M10 X 1 Male Tapered Short |
| Switchpoint | 4.50 Bar |
Mechanical features:
| Pressure switchpoint: | 4.50 Bar ± 0.30 Bar |
| Pressure range: | 0 - 10 Bar |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | M10 x 1 Conical short |
| Length thread + nut (L1): | 39 mm |
| Thread length (L2): | 11 mm |
| Torque: | 30 Nm |
| Operating temperature: | –25 °C to +120°C |
| Housing: | Round 45 mm contact chamber vented |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Switch function: | Contact closes when pressure < 4.50 Bar |
| Pressure switch signal: | Dual-Pole insulated return |
| Contact response: | Slow |
| Pressure switch capacity: | Maximum 5 Watt non-inductive |
| Pressureswitch connector: | M4 Screw (2x) |
Datasheets and Table:
| VDO 2014 Vehicle Electronics Catalog: | Page 131 - 132 |
| Type of connection: | Model: 2D6 |
Retail package:
- VDO 230-213-002-004C Pressure switch
- VDO Sensors are - unless otherwise noted - delivered without connecting material
