Temperatuuri lüliti 16°C M14x1.5
Temperatuuri lüliti 16°C M14x1.5
Toodete fotod on illustratiivsed

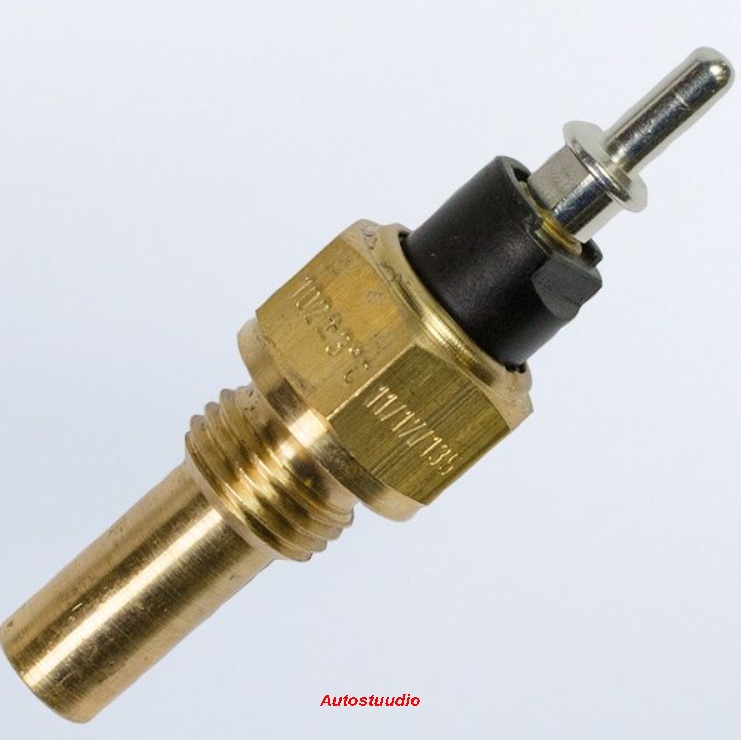

Continental - VDO Temperatuurilüliti 16°C M14x1.5 6-24V*
*Tellimustoode. Täpsustage saadavust ja tarneaega.
Toote tehnilised näitajad:
- Temperatuuri lülituspunkt: 16 °C ± 3 °C
- Keere: M14 x 1.5
- Temperatuurilüliti võimsus: 1,2 - 3 W
- Tüüp: D
- 1-klemmi maandus
- Kontaktid avanevad, kui temperatuur tõuseb > 16 °C
- Keerme + anduriosa pikkus L = 29mm, anduriosa läbimõõt ∅ 10mm
- Lubatud viga ± 3 °C
- Max temp.: 120 °C
VDO andurite ja lülitid kataloogi saab vaadata SIIN
VDO Temperature switch 16°C - M14x1.5
- Temperature switchpoint: 16 °C ± 3 °C
- Thread: M14x1.5
- Contact open as temperature rises
- Temperature switch: 1-pole common ground
- Switching capacity: 1.2 - 3 Watt Maximum
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature switches |
| Functionality | Coolant temperature |
| Signal Analogue | Contact open at limit value |
| Operating voltage | 6 - 24 Volt DC |
| Sensor signal | Common ground |
| Thread | M14x1.5 Male |
| Switchpoint | 16 °C |
| Alternative notation | 232-011-020-022E |
Mechanical features:
| Temperature switchpoint: | 16 °C ± 3 °C |
| Maximum operating temperature: | 120 °C |
| Thread: | M14x1.5 |
| Switch element length + thread (L): | 29 mm |
| Sensor diameter: | 10 mm |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Switch function: | Contact opens when temperature > 16 °C |
| Temperature switch signal: | Single-Pole common ground |
| Contact response: | Slow |
| Temperature switch capacity: | Maximum 1.2 - 3 Watt non-inductive |
| Temperature switch connector: | Pinconnector ø 4 mm |
Datasheets en Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 148 - 150 |
| Type of connection: | D |
Retail package:
- VDO A2C5218311280 Temperature switch
- VDO Sensors are - unless otherwise noted - delivered without connecting material
