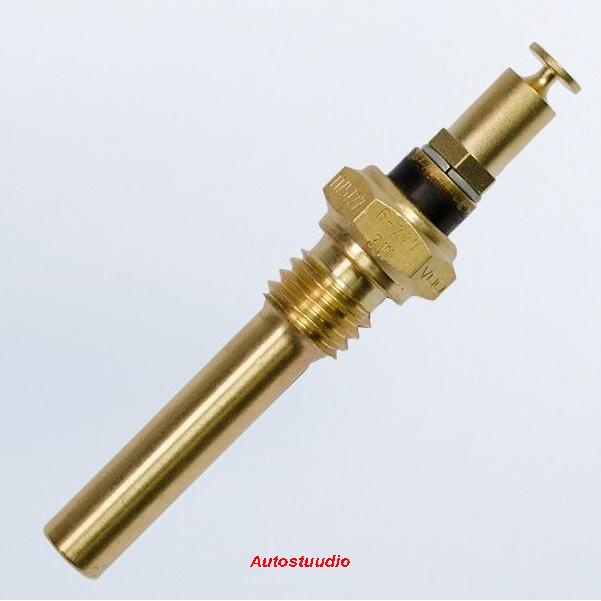

Temperatuurilüliti 170°C M10x1.5

Temperatuuri lüliti 170°C M10x1.5

Toodete fotod on illustratiivsed

Müügihind169,80 €

Allahindus

Käibemaks: 32,86 €

Tootekood: 232-011-005-028D

VDO Jahutusvedeliku temperatuurilüliti 170°C M10x1.5 6-24V õhkjahutusega mootorile

Tehnilised näitajad:

Temperatuuri lülituspunkt: 170°C ± 5°C
Tüüp: F
Lülitusvõimsus: 1,2 - 3 W Max
1-klemm, maandusega
Keere: M10x1.5
Lüliti annab maanduse, kontakt sulgub kui temperatuur ületab häiretemperatuuri > 170ºC
Keerme + anduriosa pikkus L = 38,5mm, anduriosa läbimõõt ∅ 6,9mm
Lubatud viga +- 5°C
Max Temp. 220°C

Alternatiivne toode: 232-011-005-004D

VDO Temperature switch 170°C - M10x1.5

Data sheet

Application	VDO Engine monitoring
Category	Temperature switches
Functionality	Coolant temperature
Signal Analogue	Contact Closes At Limiting Value
Operating voltage	6 - 24 Volt DC
Sensor signal	Common ground
Thread	M10x1.5 Male
Switchpoint	170 °C

VDO 232-011-005-028D Full technical specifications:

Mechanical features:

Temperature switchpoint:	170 °C ± 5 °C
Maximum operating temperature:	220 °C
Thread:	M10x1.5
Switch element length + thread (L):	38.5 mm
Sensor diameter:	6.9 mm

Electrical features:

Operating voltage:	6 - 24 V DC
Switch function:	Contact closes when temperature > 170 °C
Temperature switch signal:	Single-Pole common ground
Contact response:	Slow
Temperature switch capacity:	Maximum 1.2 - 3 Watt non-inductive
Temperature switch connector:	AMP Male T-model 6.3 x 0.8 mm

VDO 2014 Vehicle Electronics Catalog:	Page 148 - 150
Type of connection:	F

Retail package:

VDO 232-011-005-028D Temperature switch
VDO Sensors are - unless otherwise noted - delivered without connecting material
