Jahutusvedeliku temperatuuri andur 40-120°C 5/8″-18UNF-2A

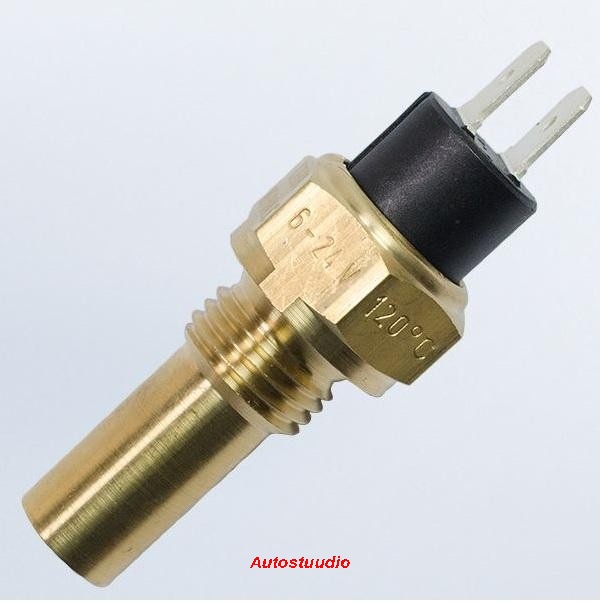

VDO Jahutusvedeliku temperatuuriandur 40-120°C 5/8″-18UNF-2A
Toodete fotod on illustratiivsed
_90x90.jpg)
.jpg){kind=link}
_90x90.jpg)
.jpg){kind=link}
VDO Jahutusvedeliku temperatuuriandur 40-120°C 5/8″-18UNF-2A 6-24V
- Keere 5/8"-18 UNF-2A
- 287,4-22,7 Ohm
- Anduriosa pikkus koos keermega 29mm
- Hoiatuskontaktita
VDO näidikute ja andurite kataloogi saab alla laadida siit
VDO Coolant temperature sender 120°C - 5/8″-18 UNF-2A
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Coolant temperature |
| Measurement range | +40°C to +120°C |
| Signal analogue | 287.4 - 22.7 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 287.4 - 22.7 Ohm |
| Sensor signal | Insulated return |
| Sensor connector | AMP Male 6.3 x 0.8 mm |
| Thread | 5/8"-18 UNF-2A Male |
| Communication | Analog |
| Warning contact | No |
| Connector type | AMP Blade 6.3 x 0.8 mm |
VDO 323-805-001-002C Full technical specifications:
Mechanical features:
| Temperature measuring range: | +40 °C to +120 °C |
| Minimum - Maximum operating temperature: | -40 °C to +150 °C |
| Thread: | 5/8"-18 UNF-2A |
| Sender element length + thread (L): | 29 mm |
| Sensor diameter: | 11 mm |
| Torque: | 20 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 287.4 - 22.7 Ohm |
| Temperature sensor signal: | Dual-Pole insulated return |
| Warning contact: | No |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Temperature sender connector: | AMP Male 6.3 x 0.8 mm |
| Special VehicleProducts Catalogue 2019 | Page 59 |
| Type of connection: | G |
| Temperature 100 °C > Resistance: | 100 °C = 38.47 Ohm ± 2.98 Ohm |
Retail package:
- VDO 323-805-001-002C Temperature sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
