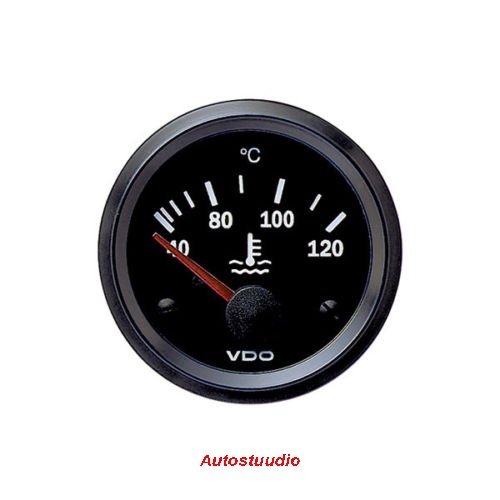

VDO Jahutusvedeliku temperatuuri näidik 40-120°C 24V

E-post
Temperatuuri näidik
Jahutusvedeliku temperatuuri näidik 40-120°C 24V, mustToodete fotod on illustratiivsed

Müügihind47,78 €
Allahindus
Tootekood: 310-020-001K

VDO "Cockpit Vision" Jahutusvedeliku temperatuuri näidik 40-120°C 24V, must

  • ø 52mm
  • VDO COCKPIT VISION
  • Kaasaegne läbivalgustatud näidik eelkõige sõiduautodele
  • Mittepeegelduv mineraalklaas
  • Must näidik, valged skaalanäidud, punane seier
  • Valge taustavalgustus on muudetav punaseks või roheliseks



VDO Cockpit Vision Coolant temperature 120°C 52mm 24V

Data sheet

  • Installation Dimension: 52 Mm - 2 1/16 Inch
  • Color: Black
  • Lens: Single-Glazed - Nonreflective
  • Bezel Model: Black Triangle
  • Measurement Range: +40°C Tot +120°C
  • Category: Temperature Gauges
  • Serie: VDO Cockpit Vision
  • Application: VDO Engine Monitoring
  • Signal Analogue: 287.4 - 22.7 Ohm
  • IP Front Protection Class: IP64 (DIN 40050)
  • Operating Voltage: 21.5 - 30 Volt DC
  • Functionality: Coolant Temperature
  • Bezel Interchangeable: Yes - Special Tool Required
  • Warning Light: Without
  • Communication: Analog

VDO Cockpit Vision 310-020-001K specifications:

Sizes and mounting:

Installation (Hole) diameter and Outside diameter: 52 mm - 2 1/16 Inch and 59.25 mm - 2 1/3 Inch
Installation depth: 61 mm
Locking height with Spinlock nut: 0.5 mm - 23 mm
Locking height with bracket: Not available
Flushmount: None

Functionality:

Engine oil temperature range: +40°C to +120°C
Sensor signal engine oil temperature gauge: VDO NTC Thermistor 287.4-22.7 Ohm
Accuracy: Not specified by VDO
Connection: AMP Male blade connector 6,3 x 0,8mm (3x)
Illumination connection: AMP Male blade connector 6,3 x 0,8mm (2x)

Power supply:

Operating voltage: 21.5 - 30 Volt DC
Current consumption without illumination: 131 mA
Reverse polarity protection: Yes
Short circuit protection: Not specified by VDO

Dial & Pointer:

Deflection angle: 90°
Dial colour: Black
Dial Illumination: Backlight 12V - 2 Watt White - Green - Red and 24V - 2 Watt - Optional
Pointer: Red backlight
Warning indication: None
Programming: None

Design:

Model: Cockpit Vision
Lens: Single - Anti-glare
Standard bezel: Triangular black (Threaded ring)

Protection and standards:

Front protection class: IP64 (DIN 40050) - Ozon proof - UV proof
Rear protection class: IP42 (DIN 40050)
Relative humidity: Not specified by VDO
Operating temperature: -30°C to +85°C
CE standard: Yes
DNV GL Certification: Not specified by VDO
Mechanical shock 8 hours: Max: 1G - 25Hz - 2000Hz
EMC test: According to EN 13309 and ISO 13766
Nominal position: NL 0 to NL 90 - DIN 16257
Housing: Plastic flame retardant

Retail package:

  • VDO Cockpit Vision 310-020-001K Temperature gauge
  • Spinlock nut
  • Connecting material order separately
