Tahhomeeter 80mm 7000p/min 12V, must
Tahhomeeter 80mm 7000p/min 12V, must
Toodete fotod on illustratiivsed

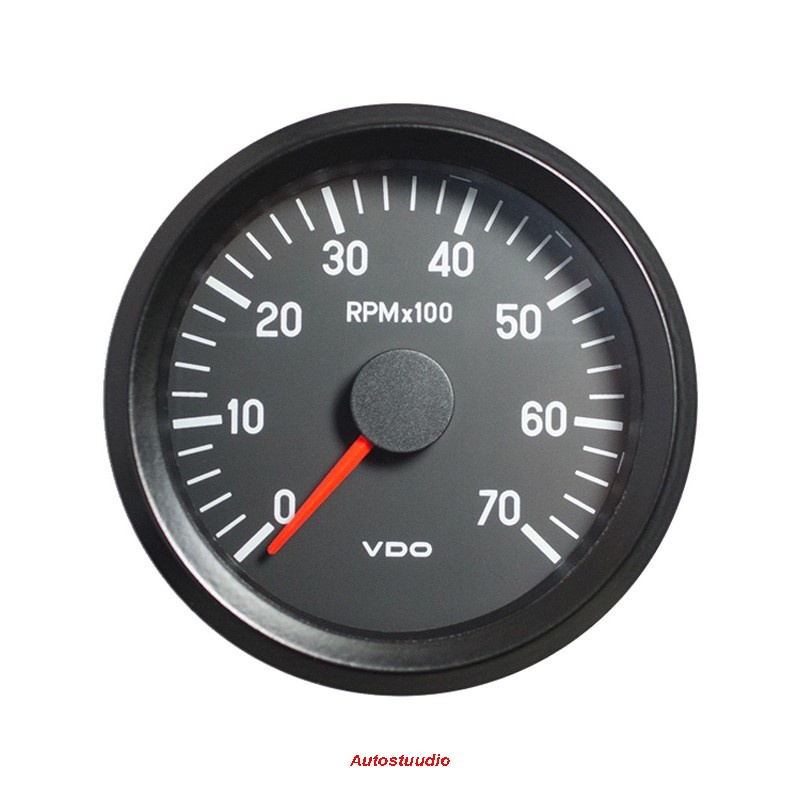

VDO "Cocpit International" Tahhomeeter ø 80mm 7000p/min 12V, must
- ø 80mm
- sügavus 91mm
- Tööpinge: 12V
VDO Cockpit International Tachometer 7.000 RPM 80mm 12V
Data sheet
| Serie | VDO Cockpit International Series |
| Color | Black |
| Installation diameter | 80 mm - 3 1/8 Inch |
| Application | VDO Engine monitoring |
| Category | Tachometers |
| Functionality | Tachometers |
| Measurement range | 0 - 7.000 RPM |
| Signal analogue | Tacho impulse signal |
| Operating voltage | 11 - 16 Volt DC |
| IP front protection class | IP64 (DIN 40050) |
| Lens | Single-glazed - Nonreflective |
| Bezel model | Black triangle |
| Bezel Interchangeable | Yes - Special tool required |
| Warning light | Without |
| Communication | Analog |
VDO Cockpit International 333-035-003G specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 80 mm - 3 1/8 Inch and 85 mm - 3 1/3 Inch |
| Installation depth: | 91 mm |
| Locking height with Spinlock nut: | Optional 0.5 mm - 23 mm |
| Locking height with bracket: | 0.5 mm - 12 mm |
| Flushmount: | No |
Functionality:
| Analog RPM measurement range: | 0 to 7.000 RPM |
| Sensor signal tachometer: | Alternator terminal: W Ignition terminal: 1 |
| Accuracy: | Not specified by VDO |
| Connection: | 8-Pole AMP Male blade connector 6,3 x 0,8mm |
| Illumination connection: | AMP Male blade connector 6,3 x 0,8mm (4x) |
Power supply:
| Operating voltage: | 11 - 16 Volt DC |
| Current consumption without illumination: | < 100 mA |
| Reverse polarity protection: | Yes |
| Short circuit protection: | Not specified by VDO |
Dial & Pointer:
| Deflection angle: | 320° |
| Dial colour: | Black |
| Dial Illumination: | Floodlight Double - 12V - 3.4 Watt White - Green - Red and 24V - 3 Watt - Optional |
| Pointer: | Red backlight |
| Warning indication: | No |
| Programming: | Yes |
Design:
| Model: | Cockpit International |
| Lens: | Single - Anti-glare |
| Standard bezel: | Triangular black (Threaded ring) |
Protection and standards:
| Front protection class: | IP64 (DIN 40050) - Ozon proof - UV proof |
| Rear protection class: | IP42 (DIN 40050) |
| Relative humidity: | Not specified by VDO |
| Operating temperature: | -20°C to +70°C |
| CE standard: | Yes |
| DNV GL Certification: | Not specified by VDO |
| Mechanical shock 8 hours: | Max: 1G - 25Hz - 2000Hz |
| EMC test: | According to EN 13309 and ISO 13766 |
| Nominal position: | NL 0 to NL 90 - DIN 16257 |
| Housing: | Plastic flame retardant |
Retail package:
- VDO Cockpit International 333-035-003G Tachometer
- Connecting material order separately
