Õli temperatuuri andur 50-200°C M10x1,0
Õli temperatuuriandur 50-200°C M10x1.0
Toodete fotod on illustratiivsed
_90x90.jpg)
.jpg){kind=link}
_90x90.jpg)
.jpg){kind=link}

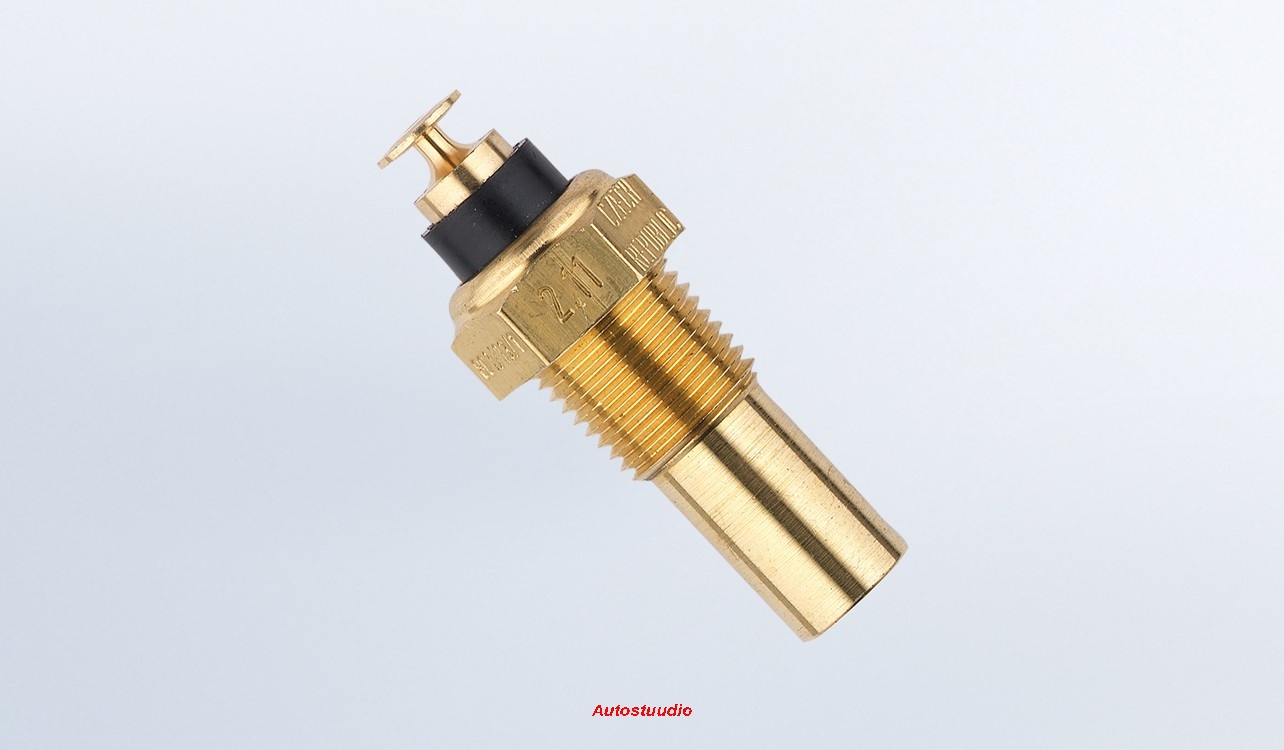

VDO Õli temperatuuri andur 50-200°C M10x1 6-24V
- Temperatuuride vahemik: +50°C kuni +200°C
- Keere: M10 x 1,0
- Takistuste vahemik: 482.5 - 14.3 Ohm
- Anduri signaal: 1-klemmi maandusega
- Ilma hoiatuskontaktita
- Anduriosa pikkus koos keermega 22 mm
VDO temperatuuriandurite kataloog (pdf)
VDO näidikute ja andurite kataloogi saab alla laadida siit
VDO Oil temperature sender 200°C – M10x1.0
Data sheet
| Application | VDO Engine monitoring |
| Category | Temperature sensors |
| Functionality | Cylinder temperature |
| Measurement range | +50°C to +200°C |
| Signal analogue | 482.5 - 14.3 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Signal output: | 482.5 - 14.3 Ohm |
| Sensor signal | Common Ground |
| Sensor connector | AMP Male T-model 6.3 x 0.8 mm |
| Thread | M10 x 1.0 Male |
| Communication | Analog |
| Warning contact | No |
| Connector type | AMP Blade T-model 6.3 x 0.8 mm |
VDO 323-801-003-002D Full technical specifications:
Mechanical features:
| Temperature measuring range: | +50 °C to +200 °C |
| Minimum - Maximum operating temperature: | -70 °C to +250 °C |
| Thread: | M10 x 1.0 |
| Sender element length + thread (L): | 22 mm |
| Sensor diameter: | 7 mm |
| Torque: | 10 Nm |
| Temperature medium: | Coolant - Water - Air - Engine oil - Transmission oil - Fuel |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 482.5 - 14.3 Ohm |
| Temperature sensor signal: | Dual-Pole common ground |
| Warning contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Temperature sender connector: | AMP Male T-model 6.3 x 0.8 mm |
Datasheets and Tables:
| Type of connection: | C |
| VDO 2014 Vehicle Electronics Catalog: | Page 136 - 137 |
| VDO Temperature senders tables: | VDO table: 12 |
| Temperature 100 °C > Resistance: | 100 °C = 148.81 Ohm ± 15.16 Ohm |
