Vints ROCK 12V 1589kg
Elektrivints 12V 1589kg ATV/UTV
Toodete fotod on illustratiivsed
Elektrivints ROCK RP35 ATV/UTV 12V 1589kg
Toote kirjeldus:
- Sünteetiline köis ∅ 5,56 mm x 12,8 m (3/16" x 39" - 1900 kg)
- Ülekandearv: 249:1
- Võimsus 3,5 hp / 2,6 kW
- Kaal: 8,5 kg
- Mõõdud: 344 x 128 x 108 mm
- Konks: 1/4"
- Kinnitusplaadi mõõdud/avade vahe: 48 x 76 mm
- Juhtpult
Omadused:
- Kiire
- Madal elektrivool
- Automaatne koormuspidur
- Toide sisse / toide välja
- Pidur: iselukustuv

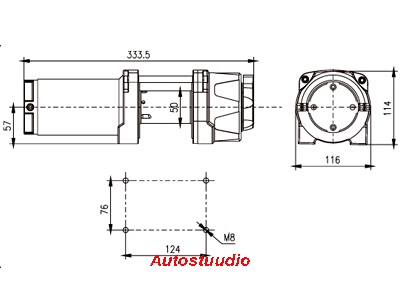

RP35 Specifications:
| Pulling Capacity: |
3500lbs (1589kgs), Single line |
| Motor(Permanent magnet): |
12 Volt DC, 3.5hp |
| Gear Ratio: | 249:1 |
| Drum Dimension: | Φ2'' x 3.15'' (Φ50mm x 92.5mm) |
| Drum Flange: | Φ3.78''(96mm) |
| Cable: | Φ7/32'' x 39' (5.56mm x 12m) |
| Overall Dimension: |
(LxWxH) 13.5'' x 4.5'' x 4.3'' (344 x 128 x 108mm) |
| Mounting Bolt Pattern: | 1.89'' x 3'' (48mm x 76mm) |
| Net Weight: | 18.71lbs (8.5kgs) |
|
Aircraft cable (min,break force 4200lbs) Dyneema rope available as alternative |
3/16'' x 39'' (5.56mm x 12.8mm) |
| Hook |
1/4'' |
| Performance of 1st layer | ||||
| Line Pull | Line Speed | Motor Current | ||
| lbs | kgs | fpm | mpm | amp |
| 0 | 0 | 18.4 | 5.6 | 30 |
| 1000 | 454 | 15.0 | 4.6 | 86 |
| 2000 | 907 | 13.1 | 4.0 | 136 |
| 3500 | 1589 | 9.8 | 3.0 | 230 |
| Line Pull & Cable Capacity by Layer | |||||||||
| Cable Layer | Rated Line Pull | Cable Capacity Dyneema rope Capacity | |||||||
| lbs | kgs | ft | meters | ft | meters | ||||
| 1 | 3500 | 1589 | 8.2 | 2.5 | 9.2 | 2.8 | |||
| 2 | 2900 | 1317 | 18.0 | 5.5 | 20.3 | 6.2 | |||
| 3 | 2500 | 1135 | 29.2 | 8.9 | 33.1 | 10.1 | |||
| 4 | 2200 | 1000 | 42.0 | 12.8 | 47.6 | 14.5 | |||
| 5 | 1900 | 863 | 45 | 13.7 | 50.0 | 15.2 | |||
