VDO ViewLine Rõhunäidik (mootori õli) 52mm 10bar, must
Rõhunäidik
Toodete fotod on illustratiivsed
VDO ViewLine Mootori õli rõhunäidik ∅ 52mm 0-10 Bar, must
- 12V / 24V
- 10-184 Ohm
- Paigaldussügavus 50mm
- Led taustavalgustus (punakas, reguleeritav)
- Ümbrisvõru on vahetatav
- Veekindlus: IP 67 esipoolelt, IP52 tagant
VDO ViewLine Engine Oil Pressure 10Bar Black 52mm
Data sheet
| Serie | VDO ViewLine Marine Series |
| Color | Black |
| Installation Dimension | 52 mm - 2 1/16 Inch |
| Lens | Double-Glazed - Anti-Fog |
| Bezel Model | Black Triangle |
| Measurement Range | 0 - 10 Bar |
| Category | Pressure Gauges |
| Application | VDO Engine Monitoring |
| Signal analogue | 10 - 184 Ohm |
| IP front protection class | IP67 (IEC 60529) |
| Operating Voltage | 8 - 32 Volt DC |
| Functionality | Engine Oil Pressure |
| Input | Analog |
| Bezel Interchangeable | Yes |
| Warning light | Red LED ISO Symbol 0434A |
| Communication | Analog |
| Dial Scale | Single |
VDO ViewLine A2C59514114 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| Engine oil pressure range:: | 0 to 10 Bar |
| Sensor signal input engine oil pressure: | VDO Pressure sender 10 to 184 Ohm |
| Accuracy: | < 3.6 angular degrees |

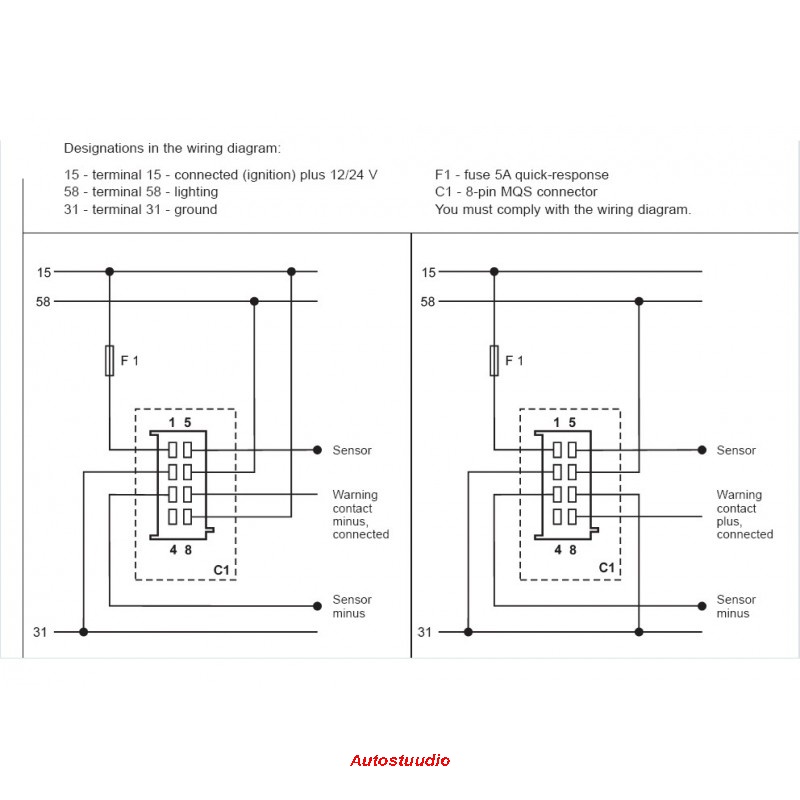

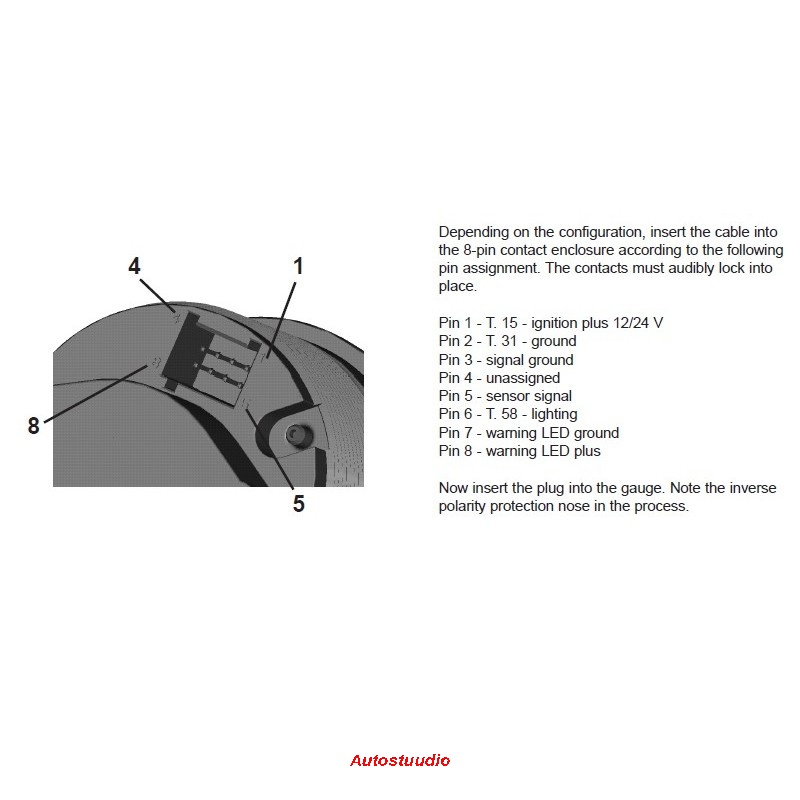

| Connection: | Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: | 8 to 32 Volt DC |
| Current consumption: | < 140 mA including warning LED |
| Reverse polarity protection: | Yes - 5 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | White LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | VDO USB software kit |
Design:
| Model: | VDO ViewLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Triangular black (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock: | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- VDO ViewLine Black A2C59514114 Engine oil pressure gauge
- Spinlock nut
- Bezel triangular black (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- VDO Pressure sender not included
