Kütusetaseme andur 387,5mm ø 54mm 70,1Ohm
VDO kütusetaseme toruandur 387,5mm
Toodete fotod on illustratiivsed

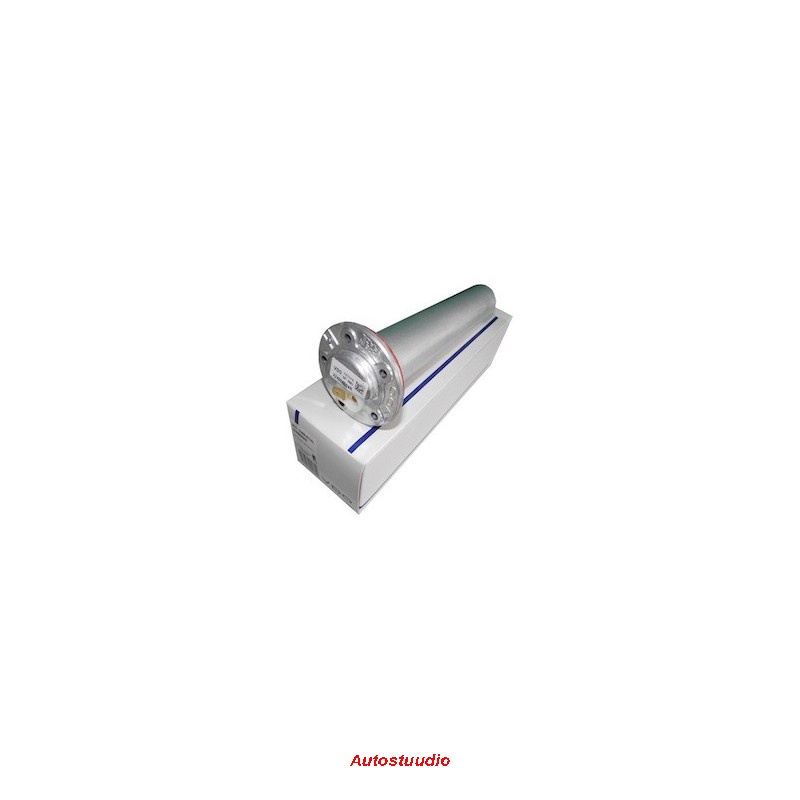

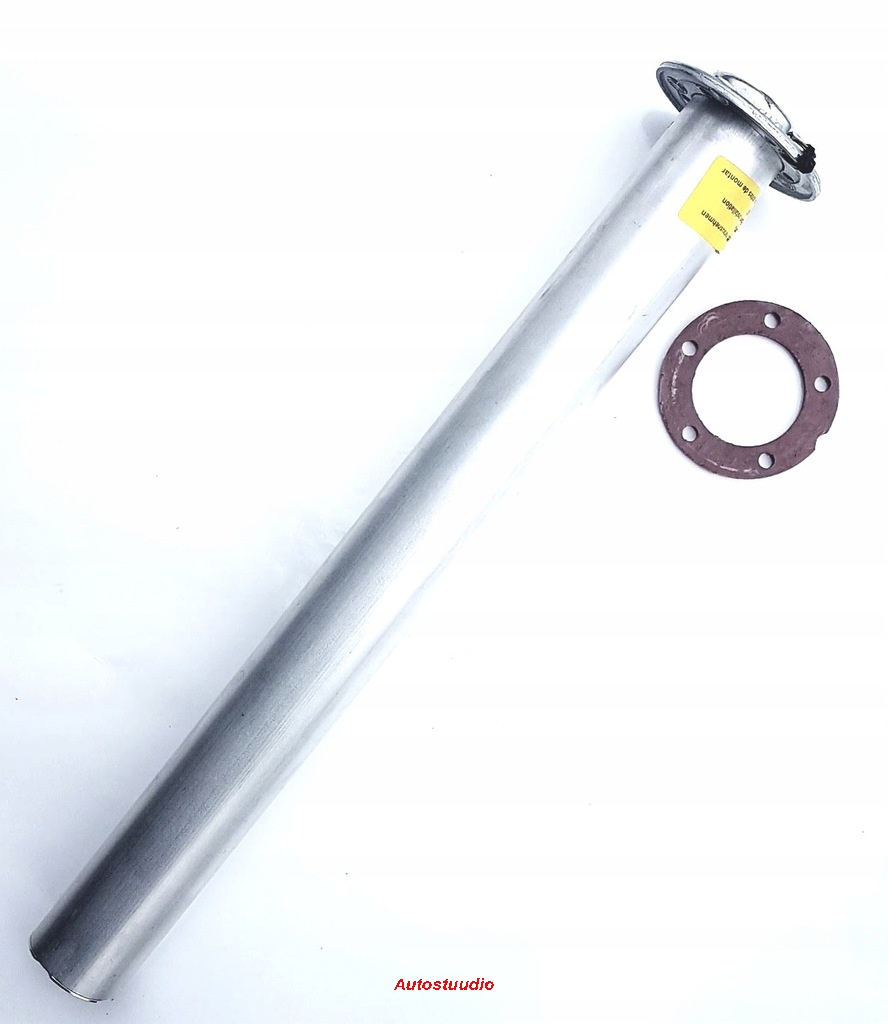

VDO Kütusepaagi toruandur - kütuse tasemeandur 387,5mm ø 54mm 70,1Ohm*
*Tellimustoode. Täpsustage saadavust ja tarneaega.
- Metallist kütuse toruandur
- Toru pikkus 387,5 mm
- 5-auguline SAE äärik ∅ 54 mm
- 6-24V
- Paigaldusava läbimõõt 40mm
- 70,1 Ohm tühi paak
- 1,5 Ohm täis paak
- Bensiin/diisel /õli/gaas
- Sobib VDO International, Viewline, Vision näidikutele
VDO näidikute ja andurite kataloogi saab alla laadida siit
VDO 224-082-005-132R
Data sheet
| Adjustable sensor | No |
| Tank depth | 350 mm to 400 mm |
| Installation diameter | 54 mm SAE 5-Hole flange |
| Application | VDO Level measurement |
| Category | Fuel level sensors |
| Signal analogue | Empty - Full is 60-90 - 0.5 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Sensor signal | Common ground |
| Communication | Analog |
| Warning contact | None |
| Connector type | M4 Hex nut |
| Sensor type | Fuel tubular sensors 54mm Aluminium |

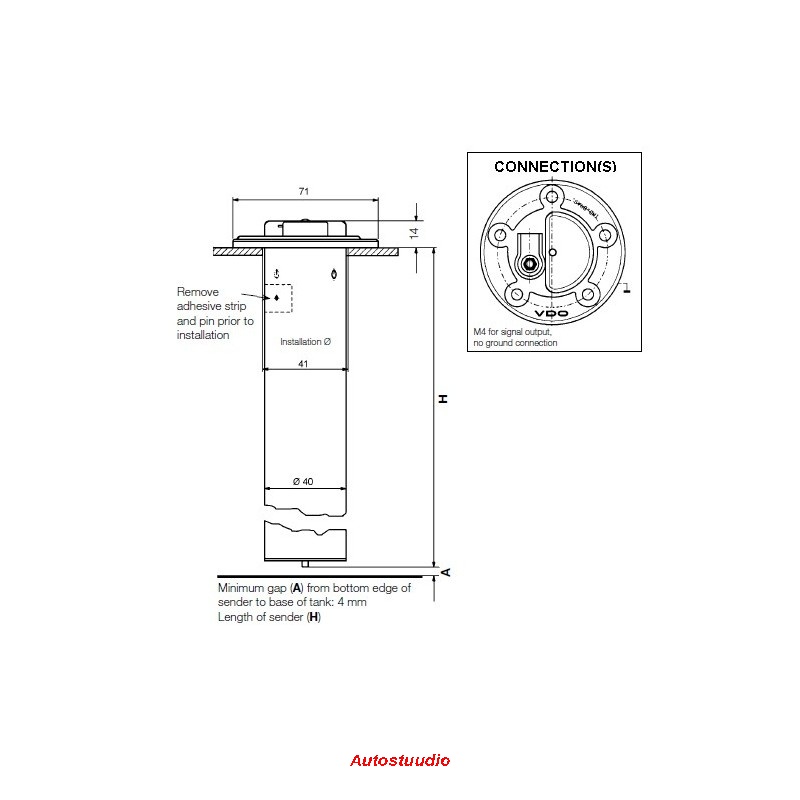

Mechanical features:
| Tube length: | 387.5 mm ± 1.6 mm |
| Minimum tank depth: | 387.5 mm ± 0.4 mm |
| Support spring: | None |

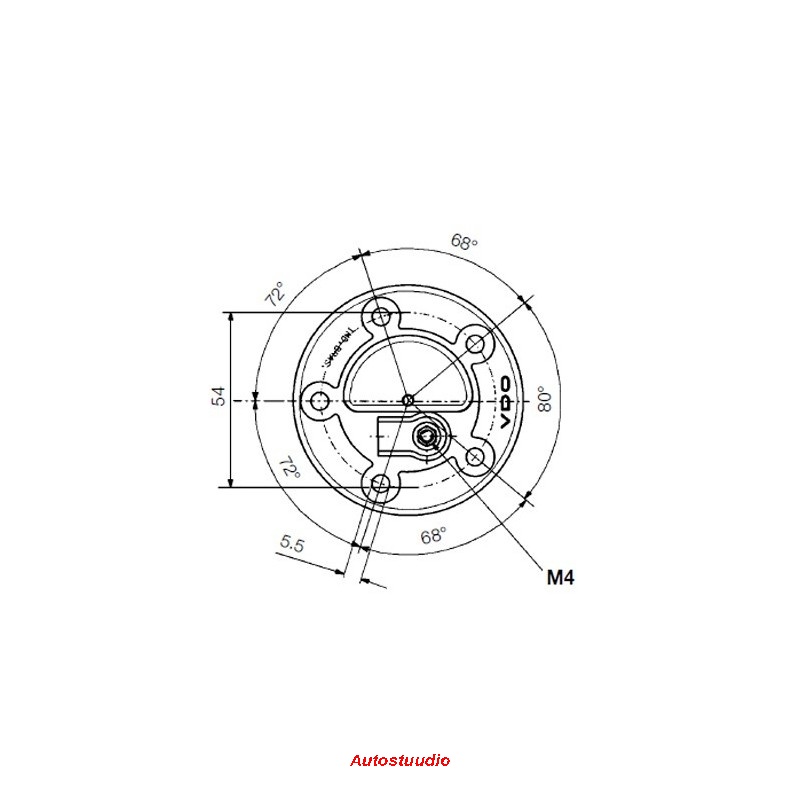

| Mounting flange: | 5-Hole SAE 54 mm |
| Operating temperature: | -25 °C to +65 °C |
| Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistance empty: | 70,1 Ohm ± 1.6 Ohm |
| Resistance full: | 1.5 Ohm ± 0.4 Ohm |
| Waarschuwings contact: | None |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
Datasheets and Tables:
| VDO 2010 EN Tubular Standard 54mm: | Page 1 - 5 |
