Kütusetaseme andur 786,5mm ø 54mm 76Ohm
VDO kütusetaseme toruandur 786,5mm
Toodete fotod on illustratiivsed

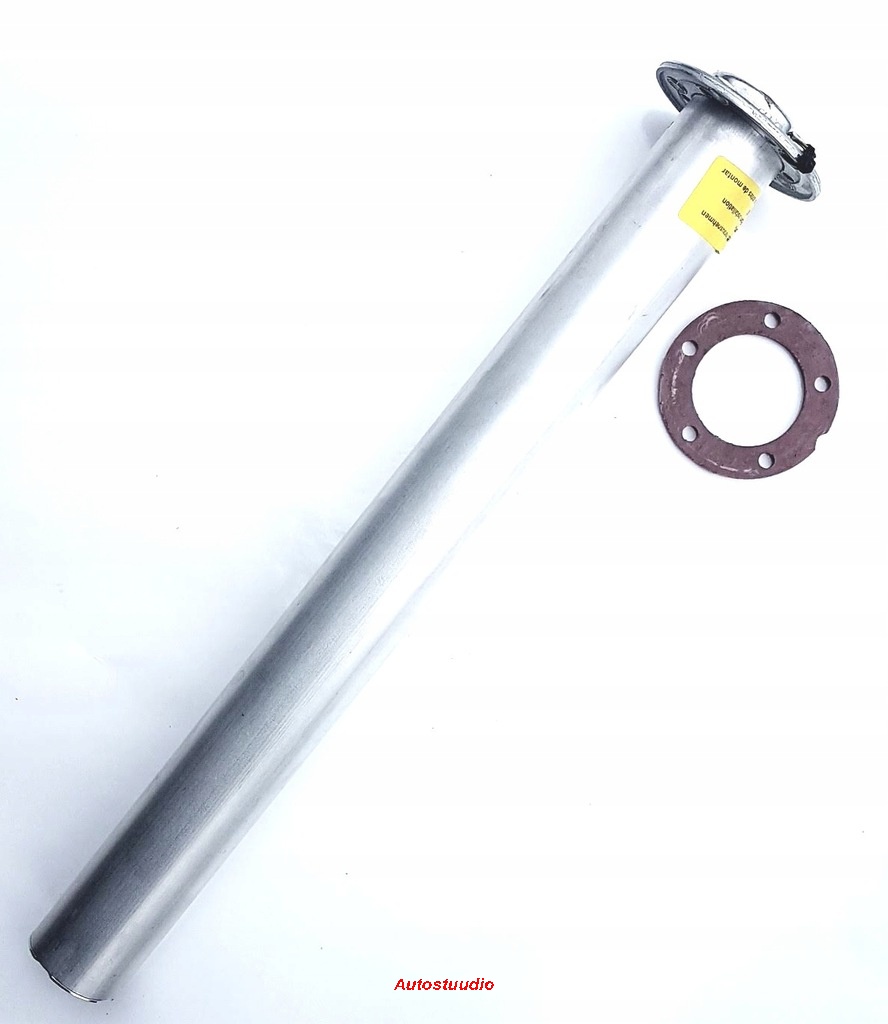

VDO Kütusepaagi toruandur - kütuse tasemeandur 786,5mm ø 54mm 76Ohm (A2C6250560166)
- Metallist kütuse toruandur
- Toru pikkus 786,5 mm
- 5-auguline SAE äärik ∅ 54 mm
- 6-24V
- Paigaldusava läbimõõt 40mm
- 76,0 Ohm tühi paak
- 1,0 Ohm täis paak
- Bensiin/diisel /õli/gaas
- Sobib VDO International, Viewline, Vision näidikutele
VDO näidikute ja andurite kataloogi saab alla laadida siit
VDO 224-011-010-786G
Data sheet
| Predecessor | 224-082-005-072R 224-082-005-072 |
| Adjustable sensor | No |
| Tank depth | 700 mm to 800 mm |
| Installation diameter | 54 mm SAE 5-Hole flange |
| Application | VDO Level measurement |
| Category | Fuel level sensors |
| Signal analogue | Empty - Full is 60-90 - 0.5 Ohm |
| Operating voltage | 6 - 24 Volt DC |
| Sensor signal | Common ground |
| Communication | Analog |
| Warning contact | No |
| Connector type | M4 Hex nut |
| Sensor type | Fuel tubular sensors 54mm Aluminium |

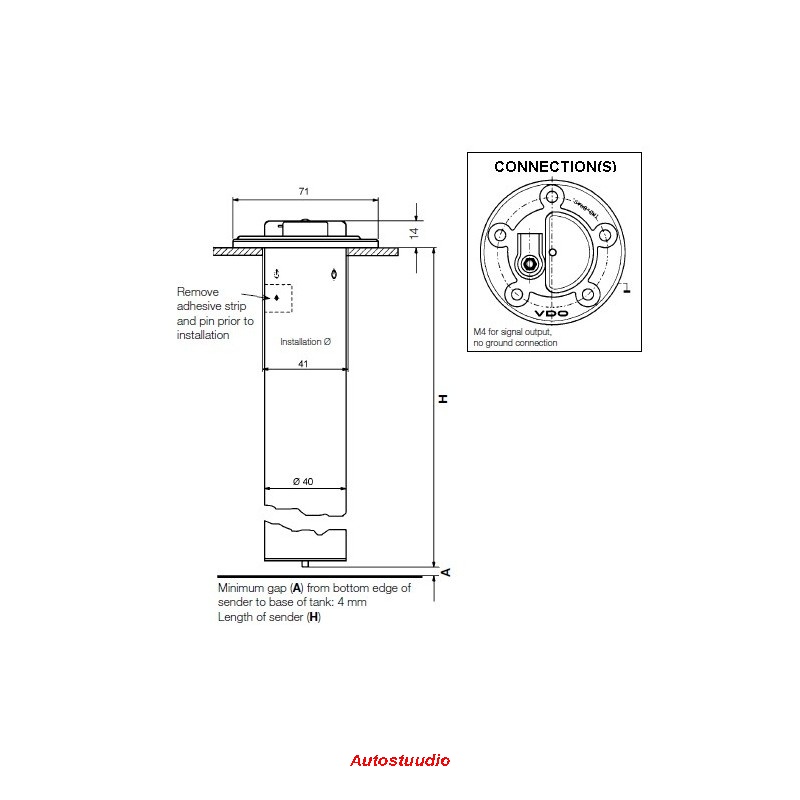

Mechanical features:
| Tube length: | 786.5 mm ± 2.0 mm |
| Minimum tank depth: | 786.5 mm ± 2.0 mm + 4.0 mm |
| Support spring: | No |

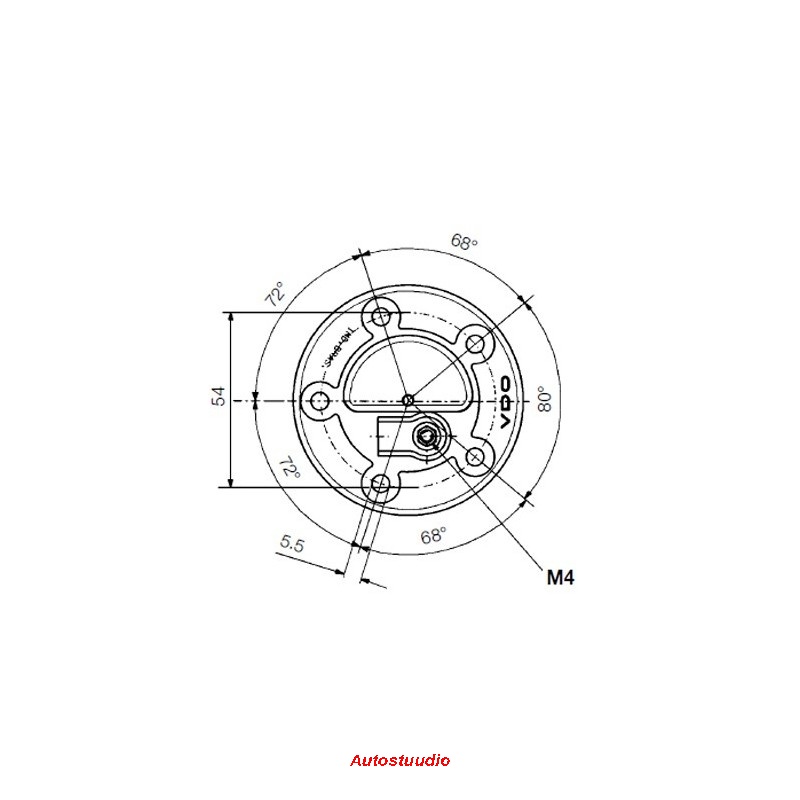

| Mounting flange: | 5-Hole SAE 54 mm |
| Operating temperature: | -25 °C to +65 °C |
| Fuel: | Oil - petroleum - diesel - gasoline |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistance empty: | 76 Ohm ± 2.3 Ohm |
| Resistance full: | 1.0 Ohm ± 1.0 Ohm |
| Warning contact: | No |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
