Õlirõhu näidik ø 52mm 30bar-435PSI 12/24V, must
Õlirõhu näidik ø 52mm 30bar-435PSI 12/24V, must
Toodete fotod on illustratiivsed

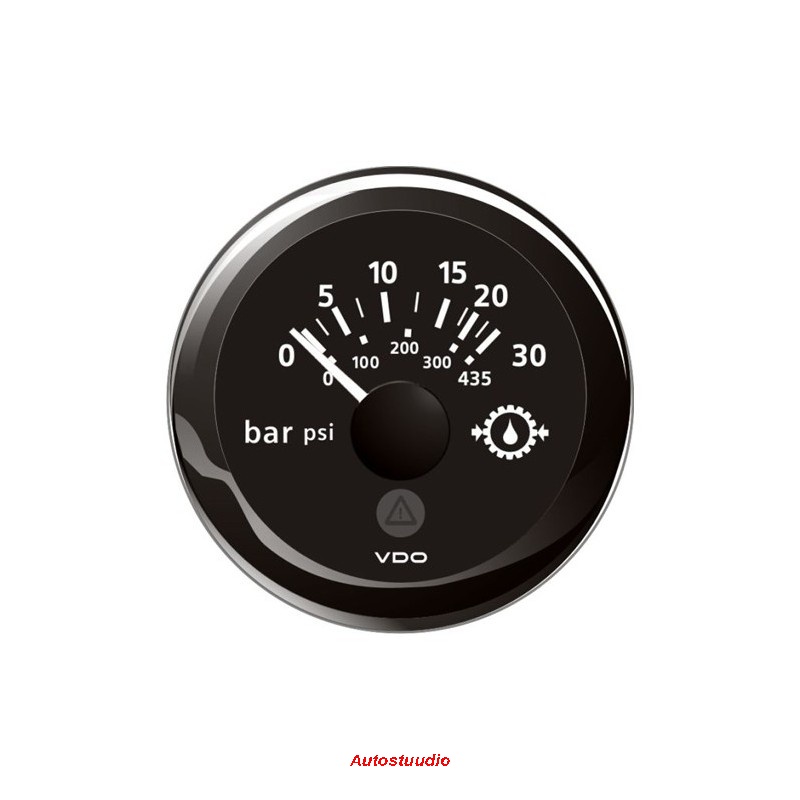

VDO - Veratron ViewLine Käigukasti õlirõhu näidik ø 52mm 30bar-435PSI 12/24V, must* (A2C53417221)
*Tellimustoode. Täpsustage saadavust ja tarneaega
- Õlirõhu näidik
- ø 52 mm
- Rõhuvahemik: 0 - 30 Bar / 0 - 435 PSI
- Tööpinge: 8 - 32 V
- Anduri takistuse vahemik: 10 - 184 Ohm
- Paigaldussügavus 50mm
- Led taustavalgustus (punakas, reguleeritav)
- Ümbrisvõru on vahetatav
- Veekindlus: IP 67 esipoolelt, IP52 tagant
VDO - Veratron ViewLine Gear oil pressure gauge ø 52mm 30bar-435PSI 12/24V DLRW, black
Product details
Data sheet
| Category | Pressure gauges |
| Functionality | Gear oil pressure |
| Serie | Veratron ViewLine Retail |
| Application | VDO Engine monitoring |
| Installation dimension | 52 mm - 2 1/16" |
| Pressure Measurement range | 0 - 30 Bar |
| Operating voltage | 8 - 32 Volt DC |
| Signal analogue | 10 - 184 Ohm |
| Dial scale | Double |
| Warning light | Red LED Via plus and min |
| Lens | Plastic double anti-fog |
| IP Class front | IP67 (IEC 60529) |
| Color | Black |
| Bezel Interchangeable | Yes - Clip-on |
| Bezel model | Black round |
| Communication | Analog |
| Input | Analog |
Description ViewLine Gear oil pressure gauge:
VDO - Veratron ViewLine A2C59514141 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 52 mm - 2 1/16 Inch and 59 mm - 2 1/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| Engine oil pressure upper scale range: | 0 to 30 Bar |
| Engine oil pressure under scale range: | 0 to 435 PSI |
| Sensor signal input engine oil pressure: | Veratron Pressure sender 10 to 184 Ohm |
| Accuracy: | < 3.6 angular degrees |

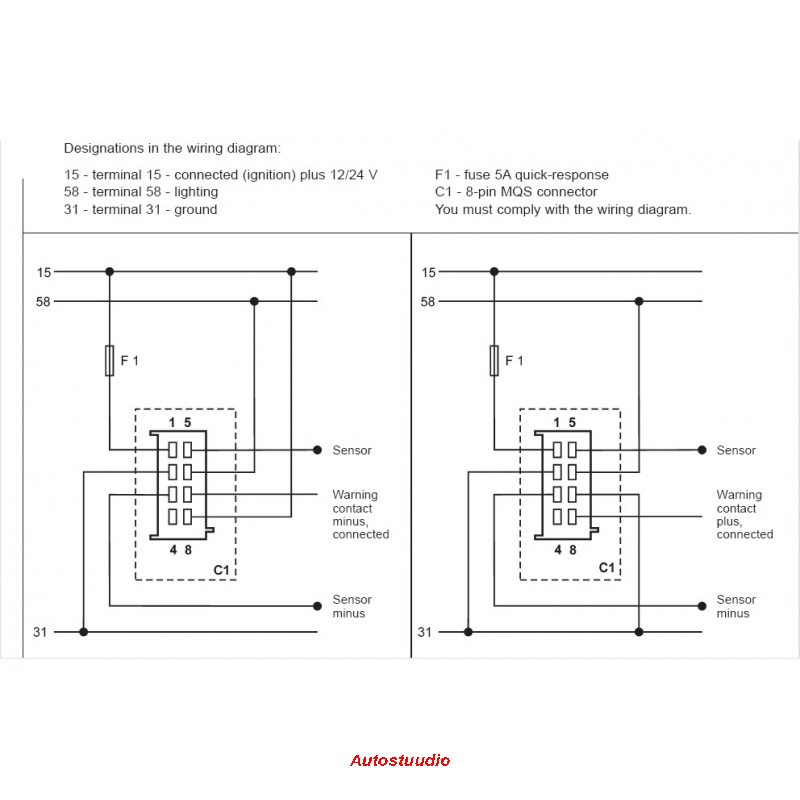

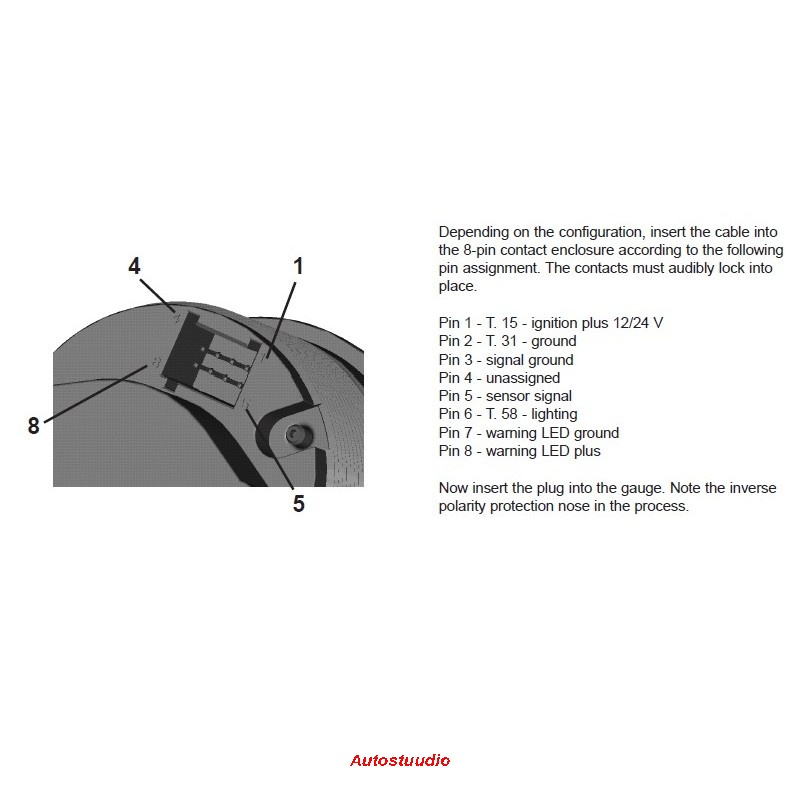

| Connection: | Hirschmann 8 pins MQS connector |
Power supply:
| Operating voltage: | 8 to 32 Volt DC |
| Current consumption: | < 140 mA including warning LED |
| Reverse polarity protection: | Yes - 5 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Dial & Pounter:
| Deflection angle: | 90° |
| Dial colour: | Black |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | White LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | Veratron USB software kit |
Design:
| Model: | Veratron ViewLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round black (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- Veratron ViewLine Black A2C59514141 Gear oil pressure gauge
- Spinlock nut
- Bezel round white (Interchangeable)
- Adapter cable with 8 pole MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
- Veratron Pressure sender not included
