Rõhuandur 0-2 BAR M18x1.5 eristatud kontaktidega, hoiatuskontaktita 6-24V
Rõhuandur 0-2 BAR keere M18x1.5 eristatud kontaktidega, hoiatuskontaktita
Toodete fotod on illustratiivsed
_90x90.jpg)
.jpg){kind=link}
_90x90.jpg)
.jpg){kind=link}

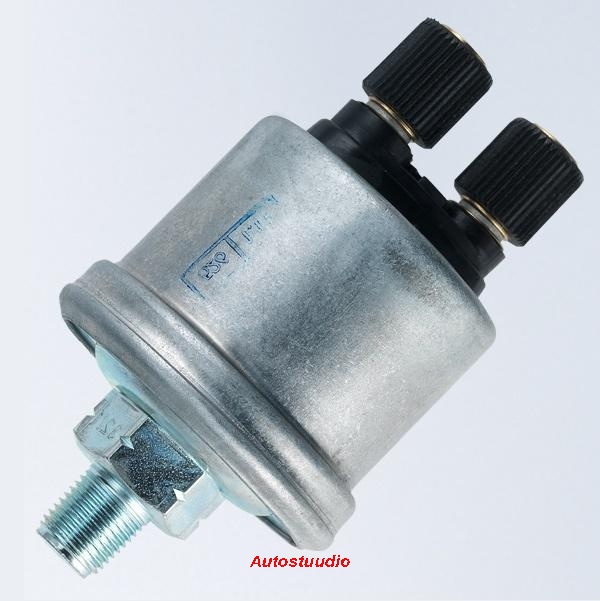

VDO Turborõhu andur 0-2 BAR keere M18x1.5 eristatud kontaktidega 6-24V* ( A2C6250710766)
*Tellimustoode. Täpsustage saadavust ja tarneaega.
Mõeldud turborõhu mõõtmiseks. Maksimaalne kasutustemperatuur 100°C. Eriti kuuma kohta (näit. väljalaskekollektori) lähedusse paigaldamisel tuleks kasutada termoisolatsiooni.
- Rõhuvahemik: 0 - 2 Bar
- Anduri takistuse vahemik: 10 - 184 Ohm
- Keere: M18 x 1.5
- Tööpinge: 6 - 24 V
- Eristatud kontaktid (maandus ei ole korpusega ühenduses)
- Ilma hoiatuskontaktita (märgutuleta)
VDO näidikute ja andurite kataloogi saab alla laadida SIIN
VDO 360-081-032-058C technical specifications:
Data sheet
- Measurement Range: 0 - 2 Bar
- Category: Pressure Senders
- Application: VDO Engine Monitoring
- Signal Analogue: 10 - 184 Ohm
- Operating Voltage: 6 - 24 Volt DC
- Functionality: Turbo Boost Pressure
- Communication: Analog
- Signal Output:: 10 - 184 Ohm
- Sensor Signal: Insulated Return
- Sensor Connector: M4 Plastic Knurled Nut
- Thread: M18 x 1.5 Male
- Warning Contact: No
- Connector Type: M4 Plastic Knurled Nut
Mechanical features:
| Pressure measuring range: | 0 - 2 Bar 0 - 29 PSI 0 - 200 KPa |
| Maximum pressure: | 30 Bar during 2 seconds |
| Thread: | M18 x 1.5 |
| Length thread + nut (L1): | 20.5 mm |
| Thread length (L2): | 12 mm |
| Torque: | 100 Nm |
| Operating temperature: | -25 °C to +100 °C |
| Pressure medium: | Oil - Fuel - Air |
Electrical features:
| Operating voltage: | 6 - 24 V DC |
| Resistor range: | 10 - 184 Ohm |
| Pressure sensor signal: | Dual-Pole insulated return |
| Warning contact: | No |
| Optional warning contact: | VDO A2C59510886 Makepoint Switch |
| Pressure sender connector: | M4 Plastic knurled nut (2x) |
Datasheets and Tables:
| VDO 2014 Vehicle Electronics Catalog: | Page 126 - 127 |
| Type of connection: | A |
| VDO Pressure senders tables: | VDO Datasheet table 1 |
Retail package:
- VDO 360-081-032 -058C Pressure sender
- VDO Sensors are - unless otherwise noted - delivered without connecting material
