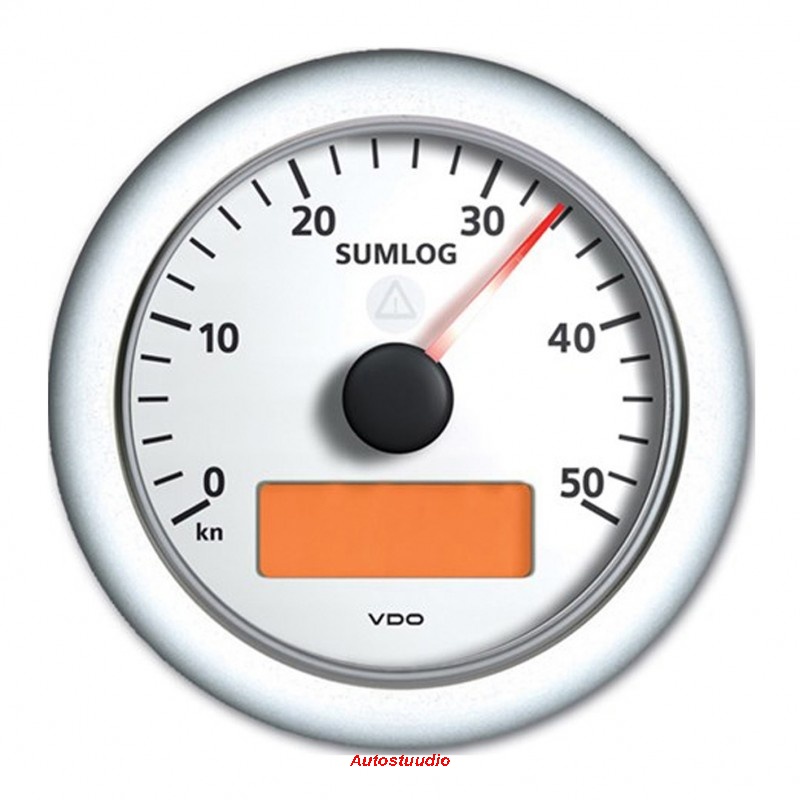

Viewline Sumlog spidomeeter 50kn ø 85mm, valge
VDO - Veratron ViewLine Sumlog spidomeeter
Toodete fotod on illustratiivsed
_90x90.jpg)
.jpg){kind=link}
VDO - Veratron ViewLine Combi (Log/Echolot) Sumlog spidomeeter - kiiruse näidik 50kn ø 85mm, valge*
*Tellimustoode. Täpsusta saadavust.
- Kiirus 50kn
- Sügavus 0-30m osutiga, 0-65m lcd näidikul (m/ft)
- Veetemperatuur 0-30 kraadi (C/F)
- Aku pinge näit
- Kell 12/24h
- 12/24V
- Kogu läbisõidu pikkuse näit
- Reisi läbisõidu näit
Reguleeringud:
- Valgustuse heledus
- LCD näidu kontrast
- Meetri, miili või sõlme näit
- Sügavushoiatus
- Kajaloodi ja logianduri valik
- Peanäidiku/alamnäidiku olek
- Simulaator
Andur tuleb tellida eraldi:
Ahtriandur: X11-719-000-053
Läbi põhja andur: X11-719-000-058
VDO - Veratron ViewLine Sumlog Speed 50kn 85mm White
Data sheet
- Installation Dimension: 85 Mm - 3 3/8 Inch
- Color: White
- Lens: Double-Glazed - Anti-Fog
- Bezel Model: White Round
- Measurement Range: 0 - 50 Kn
- Category: Navigation Gauges
- Serie: VDO Marine ViewLine Series
- Application: VDO Navigation
- IP Front Protection Class: IP67 (IEC 60529)
- Operating Voltage: 8 - 32 Volt DC
- Functionality: Sumlog Speedometers
- Input: Hall & NMEA-0183
- Bezel Interchangeable: Yes
- Warning Light: Red LED ISO Symbol 0434A
- Communication: Hall & NMEA-0183
VDO - Veratron ViewLine Sumlog speedometer A2C59512408 Full technical specifications:
Sizes and mounting:
| Installation (Hole) diameter and Outside diameter: | 85 mm - 3 3/8 Inch and 93 mm - 3 2/3 Inch |
| Installation depth: | 50 mm |
| Locking height with Spinlock nut: | 0.5 mm - 20 mm |
| Locking height with bracket: | 2 mm - 15 mm (Optional) |
| Flushmount: | Optional kit A2C59510864 |
Functionality:
| Analog speed range: | 0 to 50 Knots |
| Display functionality: | Maximum speed Water temperature Odometer Tripr Time |
| Sensor signal Sumlog Speedometer: | NMEA 0183 Signal - Hall Sensor |
| Compatible sensors:: | X11-719-000-053 Triducer® NMEA 0183 Transom Mount Triducer X11-719-000-058 Triducer® NMEA 0183 Thru-Hull Mount Triducer |
| Accuracy: | ± 2.5% of full scale reading |
| Connection: | Hirschmann 8 & 14 pins MQS connector |
Power supply:
| Operating voltage: | 8.5 to 32 V DC |
| Current consumption: | < 175 mA including warning LED |
| Reverse polarity protection: | Yes - 5 Minutes |
| Short circuit protection: | Yes - 1 Minute |
Dial & Pointer:
| Deflection angle: | 240° |
| Dial colour: | White |
| Dial Illumination: | Amber LED backlight 605nm |
| Pointer: | Red LED backlight |
| Warning LED: | Red (632nm) |
| Programming: | VDO USB software kit |
Design:
| Model: | VDO - Veratron ViewLine Marine |
| Lens: | Dual - Anti-glare - Anti-Fog |
| Standard bezel: | Round white (Interchangeable) |
Protection and standards:
| Front protection class: | IP67 (IEC 60529) |
| Rear protection class: | IP52 |
| Relative humidity: | Maximum 95% |
| Operating temperature: | -30°C to +80°C (Plastic bezel) |
| CE standard: | Yes |
| DNV GL Certification: | Yes |
| Mechanical shock continuous: | 25G - 6ms - 1Hz |
| Mechanical single shock | 100G - 11ms |
| Free fall test: | 1 Meter - 3x |
| Housing flame retarding: | UL94-VD |
Retail package:
- VDO - Veratron ViewLine White A2C59512408 Sumlog Speedometer
- Spinlock nut
- Bezel round white (Interchangeable)
- Adapter cable with 8 & 14 pins Hirschmann MQS connector
- Rubber seal
- QR code
- Safety instructions and installation manual
