Tooted

UniControl taimer 12V/24V 7-päeva 0-2h

E-post
Juhtseade
UniControl taimer 12V/24V 7 päeva 0-2hToodete fotod on illustratiivsed

Müügihind201,30 €
Allahindus
Tootekood: W9034520A
UniControl taimer 12V/24V 7 päeva 0-2h
webasto-unicontrol-taimer-12V-24V--W9034520A (1)
UniControl taimer 12V/24V 7 päeva 0-2h

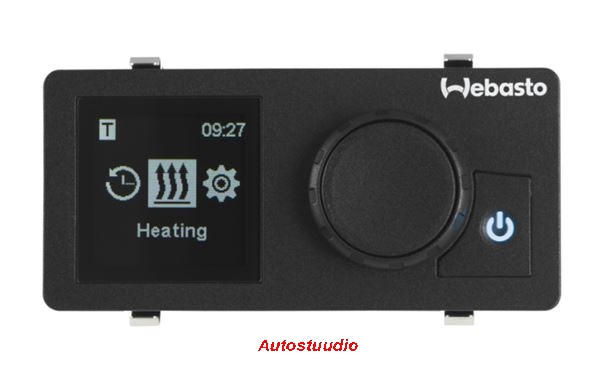

WEBASTO UniControl taimer (1531) 12V/24V

Seadistatav 21 aega (7 päeva), soojendusaeg seadistatav 0-2h või pidev, äratusfunktsioon ja taustavalgustus.

Automaatne kütteseadme tuvastamine. Säästate aega, kuna ei pea soojendit seadistama käsitsi.

Eelprogrameeritav - võimalik muuta sedame tööaega ehk kütteseadme sisse- ja väljalülitusaega.

Komplektis adapterkaabel  W9034555A

  • Nominaalpinge: 12V/24V
  • Pingevahemik: 9÷36 V
  • Koormuskesktvus: 500 mA
  • Töötemperatuur: -40.....+70°C
  • Mõõdud (P x L x K): 84 x 45 x 32 mm

UniControl displeid toetavad W-bus eelsoojendid:

Analog

  • Thermo Top C / E / Z
  • Thermo 230 / 300 / 350
  • Thermo E200 / E320
  • Thermo S 230 / 300 / 350 / 400
  • Air Top EVO 3900 / 5500
  • Air Top 2000 ST

W-bus:

  • Thermo Top Pro 120 / 150
  • Thermo Top EVO
  • Thermo Top Pro 60
  • Thermo Pro 50 Eco
  • Thermo Pro 50
  • Thermo Pro 90
  • Air Top 2000 STC
  • Air Top EVO 40 / 50

WEBASTO UniControl 1531 Air & Water Heater 7 Day Timer 12/24V

A 7 day pre-selection timer. This UniControl controller is for the operation of analog and WBus compatible Webasto air and water heaters.

Downward compatible
(delivery scope UniControl Timer 1531) Direct replacement of old or defect pre-selection timer 1531. The included adapter cable allows for the plug & play replacement without any electrical or mechanical modification.

Scope of delivery

  • UniControl
  • Adaptor cable for pre-selection timer 1531 (10-to-12 pole)
  • DVD UniControl (contains complete installation and operators guide)
  • Set of quick start guides
  • Quick start info sheet

Key Features

  • 12 / 24 V
  • Downward compatible with pre-selection timer 1531
  • Quick start button
  • Switch input (for analog push button)
  • Instrument lighting (Terminal 58)
  • Ignition plus (terminal 15, for ad hoc continous heating)
  • ADR

Benefits

Automatic heater detection
Time savings trough the omission of the manual heater selection. A false selection of the heater and the associated troubleshooting is prevented. This is subject to the condition that the heating device supports the automated detection as well.

Compatible to vehicles with mounting slot for control units
Flush-mounted installation

7-days-autotimer
With the installed autotimer up to 3 different timer slots can be pre-programmed per day. The simple menu lets you generate individual start and stop times. All programmed and activated start-stop times can be seen in the overview function.

No Unibox required
Cost- and time savings in the application (depending on the application)

Control unit for robust usage
Durable rotary-push button with ribbed rotation ring and large instant start button

Downward compatible
(delivery scope UniControl Timer 1531) Direct replacement of old or defect pre-selection timer 1531. The included adapter cable allows for the plug & play replacement without any electrical or mechanical modification.

Vehicle dependent instrument lighting (terminal 58)
Automatic adjustment of the UniControl background illumination via the vehicle (terminal 58). In case of an active terminal 58 signal the illumination of the Unicontrol (display and LED) is controlled by the vehicle‘s PWM signal. If pin 9 is connected to plus (terminal 30) the illumination of display and LED is always on. The brightness of display and LED is dependent on the UniControl user settings.

Ignition plus (terminal 15)
When the vehicle ignition is switched to ON the maximum heating duration is requested. When the ignition is switched to OFF a residual time of 15 minutes ensures the interior temperature when briefly leaving the vehicle (e. g. delivery van).

ADR
The UniControl can be used in ADR-vehicles. The function ADR can be activated in the service settings at the initial installation. According to the ADR-requirements the timer menu is no longer accessible.

Comfortable control concept
Fast and intuitive operation thanks to the large display an the rotary-push button. The self-explanatory and multilingual user menu (20 languages) allows for easy configuration.
